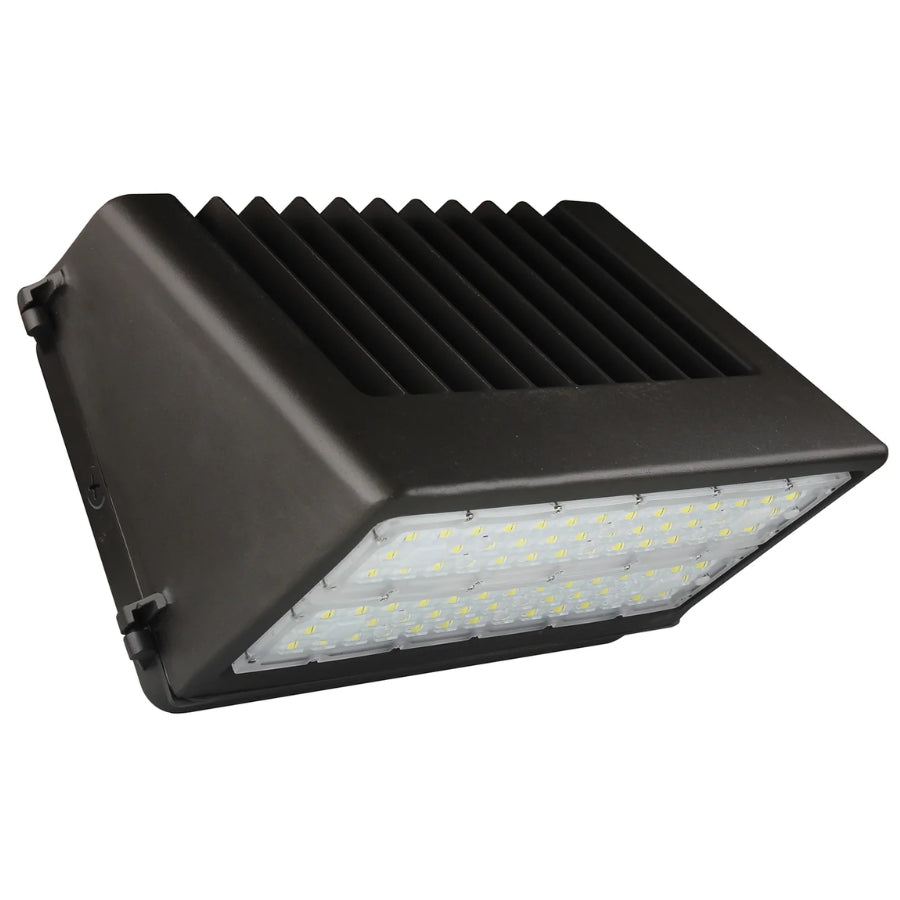

The UpgradeToLED 100W Full Cutoff LED Wall Pack is a high-output commercial lighting solution designed to provide exceptional exterior illumination while minimizing glare and light pollution. Featuring a large full cutoff optical design, this fixture delivers powerful downward-directed light for enhanced safety, visibility, and security around commercial and industrial properties.
Equipped with premium Lumileds 3030 LED technology, the fixture produces up to 14,000 lumens while maintaining an outstanding efficacy of 140 lumens per watt. Selectable color temperatures of 3000K, 4000K, and 5000K provide installation flexibility, allowing users to create the ideal lighting environment for warehouses, factories, shopping centers, loading docks, parking lots, and building perimeters.
The rugged die-cast aluminum housing is finished with a durable bronze powder coating for superior corrosion resistance and long-term durability. A UV-resistant polycarbonate lens ensures maximum light transmission while maintaining performance in demanding outdoor environments. The fixture is IP65 rated for wet-location use and includes a built-in photocell for automatic dusk-to-dawn operation.
A UL Listed Daermay 0-10V dimmable driver provides smooth dimming performance and compatibility with modern lighting controls. Operating on universal 120-277VAC input voltage, this DLC Premium Listed wall pack offers a 50,000-hour rated lifespan, reducing maintenance costs while delivering dependable illumination year after year.
Ideal for logistics centers, factories, warehouses, supermarkets, shopping malls, parking areas, and commercial building exteriors requiring high-output, energy-efficient lighting.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | UpgradeToLED |
| Product Type | Full Cutoff LED Wall Pack |
| Model | AST-FWP01B-100D5BYT3SA1 |
| Wattage | 100W |
| Lumen Output | 14,000 Lumens |
| Efficacy | 140 LM/W |
| Color Temperature | 3000K / 4000K / 5000K |
| CRI | >80 |
| Input Voltage | 120-277VAC |
| Input Current | 0.83A @120V / 0.36A @277V |
| Driver | UL Listed Daermay, 0-10V Dimmable |
| LED Chips | Lumileds 3030 |
| Distribution Type | Full Cutoff Type III |
| Surge Protection | 4KV |
| Housing Material | Die-Cast Aluminum |
| Lens Material | UV-Resistant Polycarbonate |
| Finish | Bronze Powder-Coated |
| Photocell | Included |
| Waterproof Rating | IP65 |
| Operating Temperature | -30°C to 45°C |
| Junction Temperature | <75°C |
| Fixture Efficiency | ≥90% |
| Mounting | Wall Mount with Quick-Mount Back Plate |
| Lifetime | 50,000 Hours |
| Certifications | UL Listed, cUL Listed, DLC Premium |
| Equivalent Replacement | 200W-300W MH/HPS |
| Warranty | 5-Year Limited |
| Applications | Warehouses, Factories, Shopping Malls, Supermarkets, Logistics Centers, Commercial Buildings, Parking Areas |
