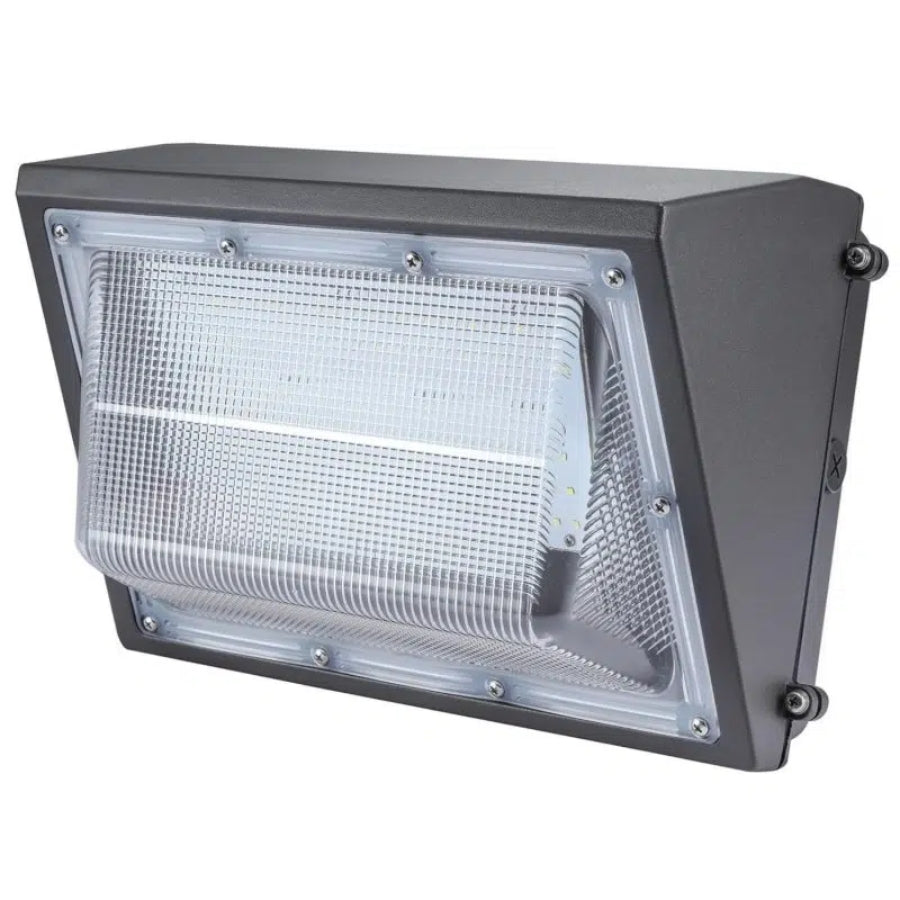

100W Semi-Cutoff LED Wall Pack – 13,000 Lumens, Built-In Dusk-to-Dawn Photocell, Selectable 3000K/4000K/5000K CCT, 400W Metal Halide Equivalent, 120–277V, 5-Year Warranty

PRODUCT SPECIFICATIONS

DURABLE CONSTRUCTION

FEATURES / ACCESSORIES

• Built-in dusk-to-dawn photocell
• 3CCT selectable color temperature
• 0-10V dimming compatible
• Universal 120-277V input
• Semi-cutoff light distribution
• Heavy-duty die-cast aluminum housing
• UV-resistant polycarbonate lens
• Commercial-grade LED driver
• Bronze powder-coated finish
• Wet location rated
• DLC Premium Certified
• ETL Listed
• Long-life LED technology
• Energy-efficient performance
• 5-Year Manufacturer Warranty

PRODUCT OVERVIEW

The UpgradeToLED 100W Semi Cutoff LED Wall Pack delivers an impressive 13,000 lumens of powerful, energy-efficient illumination for demanding commercial and industrial outdoor lighting applications. Featuring a built-in dusk-to-dawn photocell, the fixture automatically operates from sunset to sunrise, helping reduce energy consumption while improving security and visibility.

Selectable 3000K, 4000K, and 5000K color temperatures provide installation flexibility, allowing contractors to choose the ideal lighting appearance without stocking multiple fixtures. Its semi-cutoff optical design directs light where it is needed while minimizing glare and unnecessary uplight, making it ideal for building perimeters, loading docks, warehouses, parking areas, and commercial entrances. Comparable commercial wall packs in this performance class offer 13,000 lumens, 120–277V operation, 0–10V dimming, and approximately 130 lm/W efficacy.

CORE PERFORMANCE AND OUTPUT

Delivering 13,000 lumens at approximately 130 lumens per watt, this fixture provides bright, uniform illumination while significantly reducing operating costs compared to traditional HID lighting. It serves as an efficient replacement for many 320W metal halide wall packs.

Performance highlights include:

• High-output commercial lighting
• Excellent perimeter visibility
• Uniform light distribution
• Instant-on LED operation
• Lower energy consumption
• Reduced maintenance requirements
• Reliable long-term performance

ADJUSTABILITY AND CONTROL OPTIONS

The fixture includes several features that provide installation flexibility:

• Selectable 3000K, 4000K, or 5000K color temperature
• Built-in automatic dusk-to-dawn photocell
• 0-10V dimming compatibility
• Universal 120-277V voltage
• Automatic day/night operation
• Suitable for retrofit and new construction projects

These options allow contractors and facility managers to configure the lighting system according to project requirements while reducing inventory complexity.

LONGEVITY AND RELIABILITY

Designed for continuous commercial operation, this wall pack is rated for more than 50,000 hours of service. Compared to traditional HID fixtures, LED technology eliminates routine lamp and ballast replacements, lowering maintenance costs over the fixture's lifetime.

An integrated aluminum heat sink efficiently dissipates heat to preserve LED performance, maintain lumen output, and maximize driver reliability for years of dependable outdoor operation. Commercial fixtures in this category commonly feature die-cast aluminum construction, long-life LED systems, and 5-year warranties.

BUILD QUALITY AND PHYSICAL CHARACTERISTICS

The fixture is constructed from rugged die-cast aluminum designed to withstand harsh outdoor environments. Its architectural bronze powder-coated finish resists corrosion, fading, and weather exposure while maintaining a professional appearance.

The UV-resistant polycarbonate lens protects internal LED components while maximizing light transmission. Weather-resistant sealing helps protect electrical components from rain, dust, and environmental contaminants.

WHERE THIS PRODUCT FITS BEST

Ideal applications include:

• Commercial buildings
• Warehouses
• Distribution centers
• Manufacturing facilities
• Office complexes
• Shopping centers
• Schools and universities
• Hospitals
• Apartment communities
• Parking garages
• Loading docks
• Building entrances
• Service entrances
• Security perimeters
• Municipal facilities

INSTALLATION AND LONG-TERM USE

The fixture mounts directly to standard exterior wall surfaces and operates from any 120-277V electrical system. Once installed, the integrated photocell automatically turns the fixture on at dusk and off at dawn without requiring manual control.

Its commercial-grade LED system minimizes maintenance while delivering dependable long-term performance in demanding outdoor environments.

HOW THIS FIXTURE IS COMMONLY USED

The 100W Semi Cutoff LED Wall Pack is commonly installed for:

• Building entrances
• Warehouse loading docks
• Distribution centers
• Parking lot perimeter lighting
• Security lighting
• Industrial facilities
• Retail storefronts
• Apartment complexes
• Utility buildings
• Exterior walkways
• Emergency exits
• Service entrances
• Storage facilities
• Manufacturing plants

SAFETY, CERTIFICATIONS, AND WARRANTY

The UpgradeToLED 100W Semi Cutoff LED Wall Pack is engineered to provide dependable commercial outdoor lighting with reliable long-term performance.

Safety Features

• Wet location rated
• Commercial-grade LED driver
• Universal voltage operation
• Weather-resistant construction
• Low-maintenance LED technology

Certifications

• ETL Listed
• DLC Premium Certified

Warranty

• 5-Year Limited Manufacturer Warranty

FREQUENTLY ASKED QUESTIONS

Does this fixture include a photocell?

Yes. A factory-installed dusk-to-dawn photocell automatically turns the fixture on at sunset and off at sunrise.

Can I select the color temperature?

Yes. During installation, you can select 3000K, 4000K, or 5000K.

Is the fixture dimmable?

Yes. It supports 0-10V dimming when connected to a compatible dimming controller.

What traditional fixture does it replace?

It is commonly used as an energy-efficient replacement for many 320W metal halide or comparable HID wall packs while delivering approximately 13,000 lumens.

Can it be installed outdoors?

Yes. It is designed for wet-location outdoor installations.

Is it suitable for commercial properties?

Absolutely. It is ideal for commercial, industrial, retail, municipal, educational, and healthcare facilities.

What input voltage does it require?

The fixture operates on universal 120-277V AC power.

What is its expected lifespan?

The LED system is rated for more than 50,000 hours of operation under normal conditions.

APPLICATION QUESTIONS AND CLARIFICATION

Is this suitable for warehouse entrances?

Yes. Its 13,000-lumen output provides excellent visibility for loading docks, warehouse entrances, and distribution facilities.

Can it be used for security lighting?

Yes. The high lumen output, semi-cutoff distribution, and built-in dusk-to-dawn photocell make it an outstanding choice for perimeter and security lighting.

Is it appropriate for apartment complexes?

Absolutely. It is well suited for parking areas, exterior corridors, stairwells, garages, and building entrances.

Can this replace older HID wall packs?

Yes. It is an excellent replacement for many 320W metal halide or HPS wall packs, providing lower energy consumption, improved lighting quality, and reduced maintenance.

Which color temperature should I choose?

• 3000K: Warm white for hospitality, residential, and decorative exterior lighting.
• 4000K: Neutral white for offices, schools, retail centers, and commercial buildings.
• 5000K: Daylight white for warehouses, parking lots, industrial facilities, security lighting, and high-visibility applications.

Is professional installation recommended?

Yes. Installation should be completed by a qualified electrician in accordance with local electrical codes to ensure safe operation, code compliance, and optimal long-term performance.
