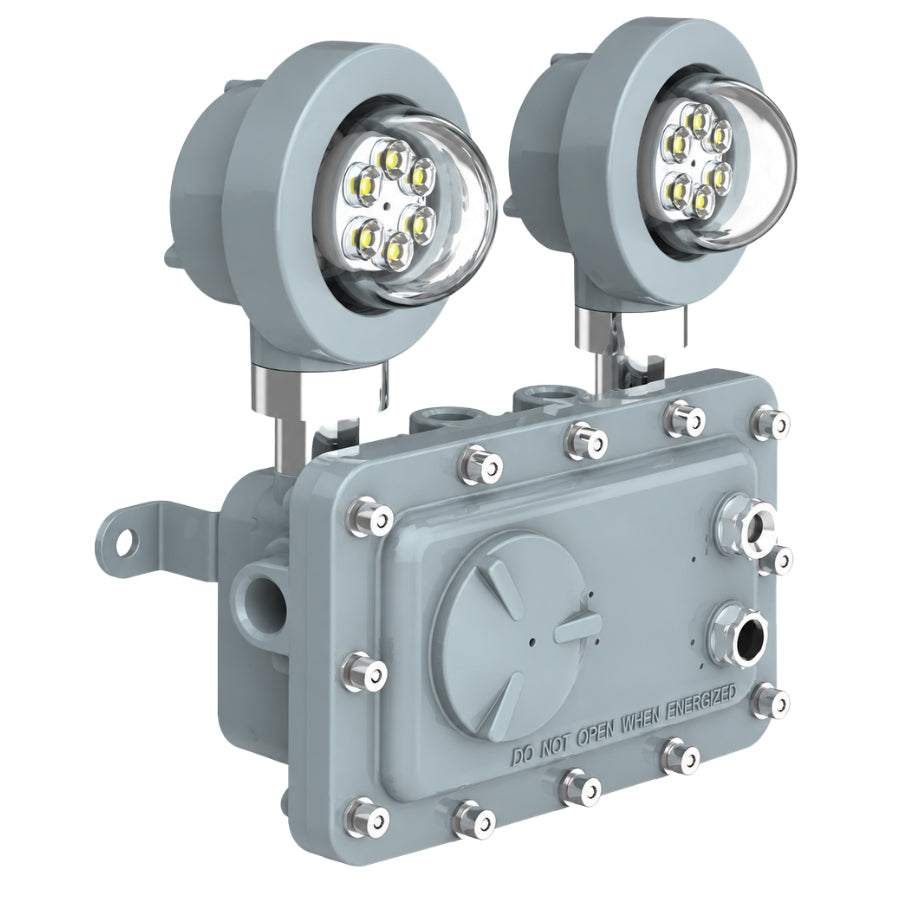

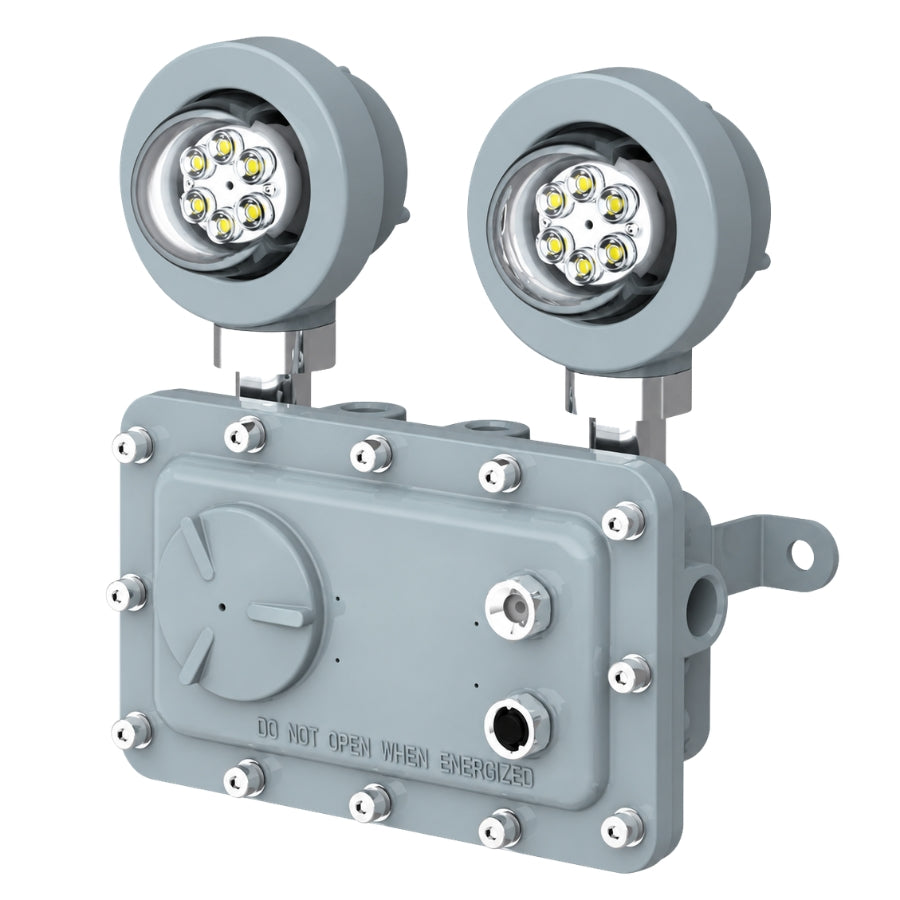

10W Explosion-Proof Emergency Light, C1D1/C1D2 Hazardous Location, Dual Adjustable Heads, 3-Hour Emergency Backup, 120-277V AC, 3000K-6500K, 90°/120° Beam, Wall Mount, UL 844/UL 924, IP66, UL Listed, 5-Year Warranty

Product Overview

Protect critical areas with a rugged Explosion Proof Emergency Light designed for hazardous industrial and outdoor environments. Featuring Class I Division 1 protection and a 3-hour emergency operating time, this fixture provides dependable backup illumination when normal power is unavailable.

The heavy-duty A360 die-cast aluminum housing and stainless-steel hardware are built for demanding environments, while the NEMA 4X and IP66 ratings provide protection against dust, water, corrosion, and harsh outdoor conditions.

Two high-lumen adjustable spotlights can be positioned horizontally and vertically to direct emergency illumination where it is needed most. Optional 90° and 120° beam angles provide additional flexibility for different facility layouts.

Designed for 120–277V AC, this emergency light is suitable for industrial facilities, processing plants, chemical and petrochemical environments, warehouses, loading areas, and other locations requiring reliable emergency lighting.

Key Features

• Class I Division 1 explosion-proof design

• 3-hour emergency operation

• 120–277V AC input

• Two high-lumen adjustable spotlights

• Horizontal and vertical light adjustment

• Optional 90° or 120° beam angles

• Heavy-duty A360 die-cast aluminum housing

• Stainless-steel hardware

• NEMA 4X rated

• IP66 protection

• IK10 enclosure impact rating

• UL 844 hazardous-location compliant

• UL 924 emergency lighting compliant

• ETL certified

• Suitable for wet locations

• Operating temperature: -4°F to 140°F (-20°C to 60°C)

• Wall mounting

• 3/4" NPT conduit hubs

• Hinged access door for easier maintenance

• Long service life up to 50,000 hours

• 5-year limited warranty

Technical Specifications

Reliable Emergency Lighting for Hazardous Areas

When an unexpected power outage occurs, emergency lighting needs to activate reliably and provide enough illumination for personnel to navigate and respond safely.

This fixture provides up to 3 hours of emergency operation, making it a dependable choice for industrial facilities and hazardous areas where emergency visibility is critical.

Its Class I Division 1 explosion-proof design is intended for demanding locations where flammable gases or vapors may be present. The fixture is also specified for Class I Division 2, Class II Division 1 and 2, and Class III applications.

It complies with UL 844 hazardous-location requirements and UL 924 emergency lighting requirements, with ETL certification.

Always confirm the required hazardous-location classification and applicable codes for your specific installation.

Rugged Construction for Harsh Environments

The enclosure uses A360 die-cast aluminum with stainless-steel hardware to provide durable protection in industrial and outdoor environments.

Its NEMA 4X and IP66 ratings help protect against water, dust, and other environmental exposure, while the IK10 impact rating provides strong resistance to physical impact.

The fixture is rated for temperatures from -4°F to 140°F, allowing it to operate across a wide range of industrial and outdoor conditions.

Adjustable Emergency Light Heads

Two independently adjustable spotlights make it easier to direct emergency illumination toward critical areas.

The light heads can be adjusted both horizontally and vertically, allowing you to target:

• Emergency exits

• Walkways

• Stairways

• Work areas

• Equipment areas

• Loading zones

• Processing areas

• Access routes

Choose between 90° and 120° beam angle options depending on the coverage required for your installation.

Easy Wall-Mount Installation

The fixture is designed for wall mounting and includes 3/4" NPT conduit hubs for electrical connection.

A hinged access door provides easier access during installation and maintenance. The enclosure is designed to simplify servicing while maintaining the rugged construction required for hazardous environments.

Installation should be performed by qualified personnel familiar with hazardous-location electrical equipment and applicable local codes.

Ideal Applications

This explosion-proof emergency light is well suited for:

• Chemical processing facilities

• Petrochemical plants

• Oil and gas facilities

• Power plants

• Refineries

• Manufacturing facilities

• Industrial warehouses

• Loading docks

• Processing plants

• Wastewater facilities

• Mining environments

• Marine and outdoor facilities

• Hazardous storage areas

• Industrial walkways

• Emergency exits

• Areas requiring backup lighting

Certifications & Ratings

This emergency fixture is designed for demanding hazardous and emergency lighting applications and includes:

• Class I Division 1, Groups C & D

• Class I Division 2, Groups A, B, C & D

• Class II Division 1, Groups E, F & G

• Class II Division 2, Groups F & G

• Class III

• UL 844 Hazardous Locations

• UL 924 Emergency Lighting

• ETL Certified

• NEMA 4X

• IP66

• IK10

Certification requirements vary by installation. Verify the appropriate classification and applicable electrical codes before purchasing and installing.

Bulk & Project Pricing Available

Need emergency lighting for an entire facility, construction project, industrial retrofit, or multiple hazardous areas?

Bulk purchasing and project pricing are available for qualifying orders.

We can assist with:

• Bulk fixture orders

• Contractor purchases

• Distributor orders

• Industrial projects

• Facility-wide emergency lighting

• New construction

• Hazardous-area upgrades

• Multi-location projects

Contact UpgradeToLED for volume pricing, project quantities, and product recommendations.

Frequently Asked Questions

How long does the emergency light operate during a power outage?

The emergency battery provides up to 3 hours of emergency operation.

Is this an explosion-proof emergency light?

Yes. It features a Class I Division 1 explosion-proof design and is also specified for additional Class I Division 2, Class II, and Class III applications.

What voltage does this emergency light use?

It operates on 120–277V AC, making it suitable for a wide range of commercial and industrial electrical systems.

What beam angles are available?

The fixture is available with 90° or 120° beam angle options.

Can the light heads be adjusted?

Yes. Both spotlights can be adjusted horizontally and vertically to direct emergency illumination where it is needed.

Is this emergency light suitable for wet locations?

Yes. The fixture is rated IP66 and NEMA 4X, making it suitable for appropriately specified wet and outdoor locations.

What is the operating temperature range?

The fixture is rated from -4°F to 140°F (-20°C to 60°C).

What type of mounting does it use?

The standard installation is wall mounting with 3/4" NPT conduit hubs.

What is the service life?

The light has a rated service life of up to 50,000 hours.

Does it meet UL emergency lighting requirements?

Yes. The fixture is specified as compliant with UL 924 emergency lighting requirements and UL 844 hazardous-location requirements.

Does it have impact protection?

Yes. The enclosure carries an IK10 impact rating.

Do you offer bulk pricing?

Yes. Bulk and project pricing is available for qualifying orders. Contact us for volume pricing and larger project requirements.

Reliable Emergency Lighting When It Matters

For hazardous industrial environments, emergency lighting needs to be more than a basic backup fixture. This explosion-proof emergency light combines Class I Division 1 protection, 3-hour emergency operation, adjustable spotlights, IP66/NEMA 4X protection, and rugged construction in a purpose-built design.

It is a practical choice for facilities that need dependable emergency illumination in demanding environments.

Need multiple fixtures? Contact UpgradeToLED for bulk pricing and project assistance.
