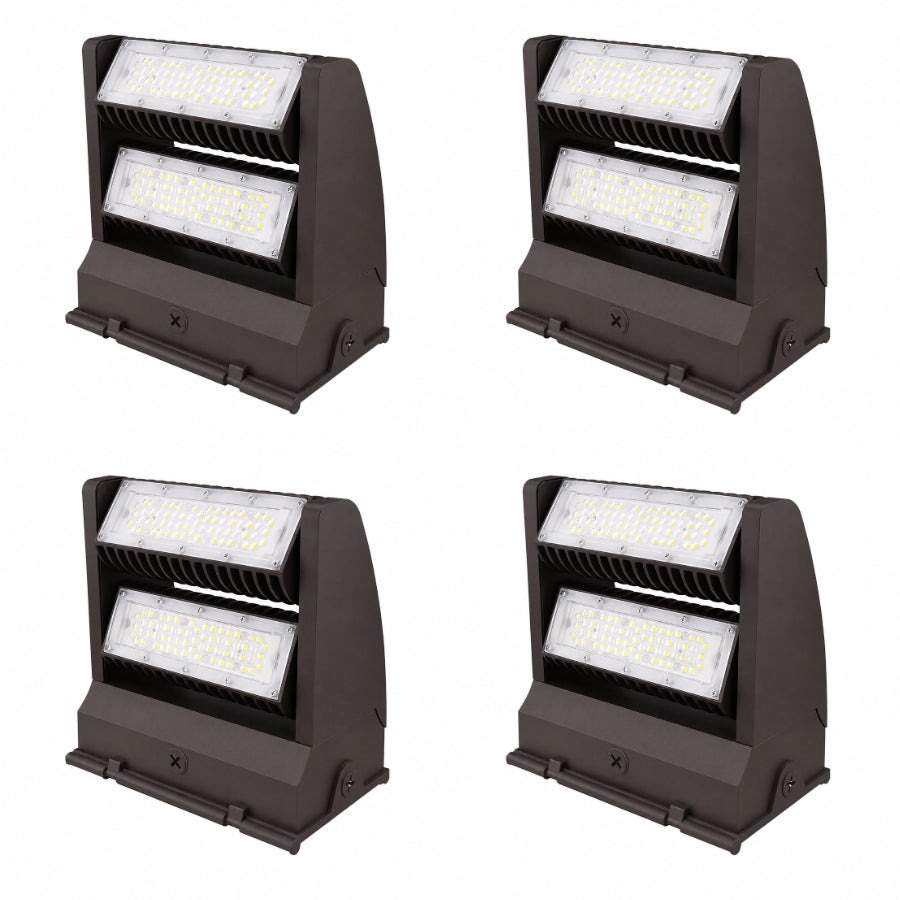

120W Rotatable LED Wall Pack – 16,200 Lumens, 350° Adjustable Optics, 400W Metal Halide Equivalent, 120–277V, DLC Premium, 5-Year Warranty
SKU:
UTLED-1039
- $131.50
$144.65- $131.50
- Unit price
- per
Get your quote within 1 hour!
Free shipping on orders over $99
We promise same day shipping

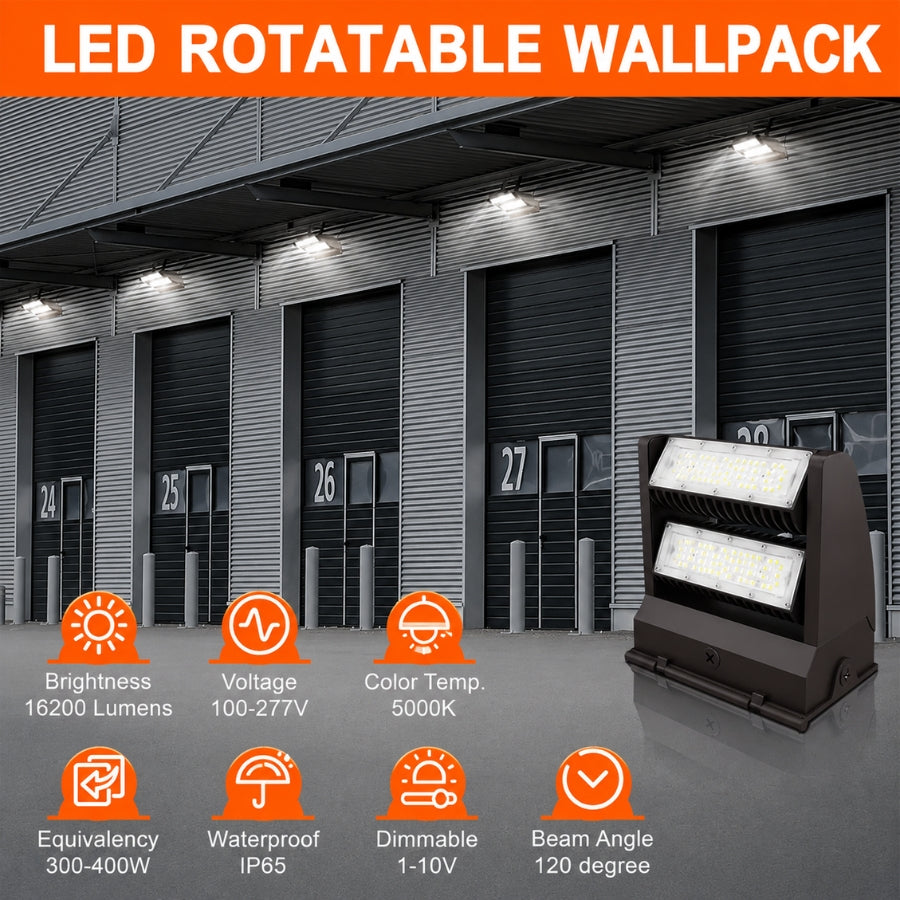

PRODUCT SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Type | Rotatable LED Wall Pack |
| Brand | UpgradeToLED |
| Wattage | 120W |
| Lumen Output | 16,200 Lumens |
| Luminous Efficacy | Up to 135 lm/W |
| Input Voltage | 120-277V AC |
| Frequency | 50/60Hz |
| Adjustable Optics | 350° Rotatable |
| Light Distribution | Adjustable Up-Light or Down-Light |
| Beam Angle | 60° |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 0-10V Dimmable |
| Housing Material | Die-Cast Aluminum |
| Lens Material | High-Impact Polycarbonate |
| Housing Finish | Bronze Powder-Coated Finish |
| Mounting Type | Surface Wall Mount |
| IP Rating | IP65 Wet Location |
| Lifespan | 50,000+ Hours |
| Metal Halide Equivalent | Replaces 250W–360W MH/HPS Fixtures |
| Certifications | DLC Premium |
| Warranty | 5-Year Limited Warranty |

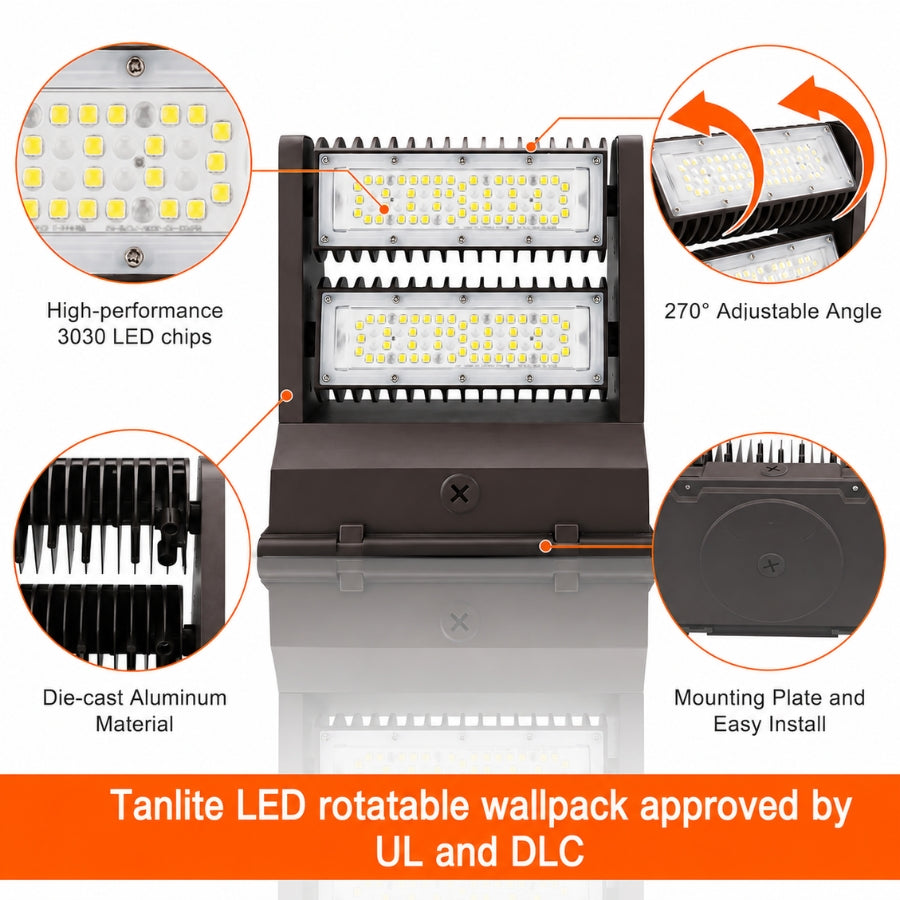

DURABLE CONSTRUCTION
| Component | Description |
|---|---|
| Housing | Heavy-duty die-cast aluminum construction |
| Finish | Bronze outdoor powder-coated finish for corrosion resistance |
| Lens | UV-resistant impact-resistant polycarbonate optical lens |
| Adjustable Head | Precision 350° rotating optical module |
| Heat Dissipation | High-efficiency aluminum heat sink |
| Weather Protection | IP65 sealed against rain, dust, and moisture |
| Hardware | Corrosion-resistant mounting hardware |
FEATURES / ACCESSORIES
| Feature | Included |
|---|---|
| 350° Rotatable Optics | Yes |
| Adjustable Up/Down Light Distribution | Yes |
| 0-10V Dimming | Yes |
| DLC Premium Listed | Yes |
| Back Mounting Plate | Yes |
| Mounting Hardware | Yes |
| Installation Instructions | Yes |
| Die-Cast Aluminum Housing | Yes |
| Polycarbonate Lens | Yes |

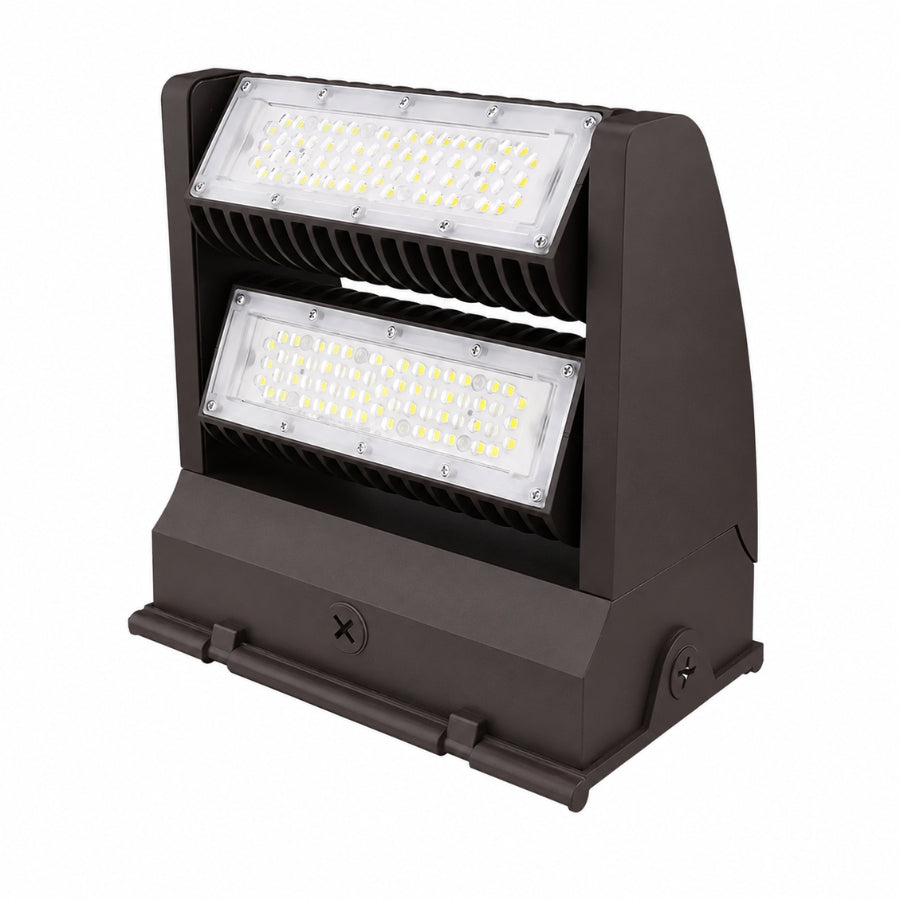

PRODUCT OVERVIEW
The UpgradeToLED 120W Rotatable LED Wall Pack is engineered for demanding commercial and industrial lighting applications that require maximum brightness and precise beam control. Delivering up to 16,200 lumens while consuming only 120 watts, this fixture combines outstanding energy efficiency with an innovative 350° adjustable optical system that allows installers to direct light exactly where it is needed.
Unlike conventional fixed wall packs, the rotating optic enables customized uplighting, downlighting, or intermediate beam angles, helping reduce glare and unwanted light trespass while improving visibility around buildings. Built with a rugged die-cast aluminum housing, IP65 weatherproof protection, and DLC Premium certification, this fixture provides dependable performance in harsh outdoor environments. Comparable commercial fixtures feature 16,200 lumens, 350° rotatable optics, universal 120-277V operation, and DLC Premium qualification.
CORE PERFORMANCE AND OUTPUT
Producing up to 16,200 lumens with efficacy of approximately 135 lumens per watt, this high-output wall pack delivers powerful illumination while significantly reducing energy consumption compared to traditional HID lighting.
The adjustable optics allow installers to optimize light placement for security, façade lighting, loading docks, and building perimeters. This fixture commonly replaces 250W to 360W metal halide or high-pressure sodium wall packs while reducing operating and maintenance costs.

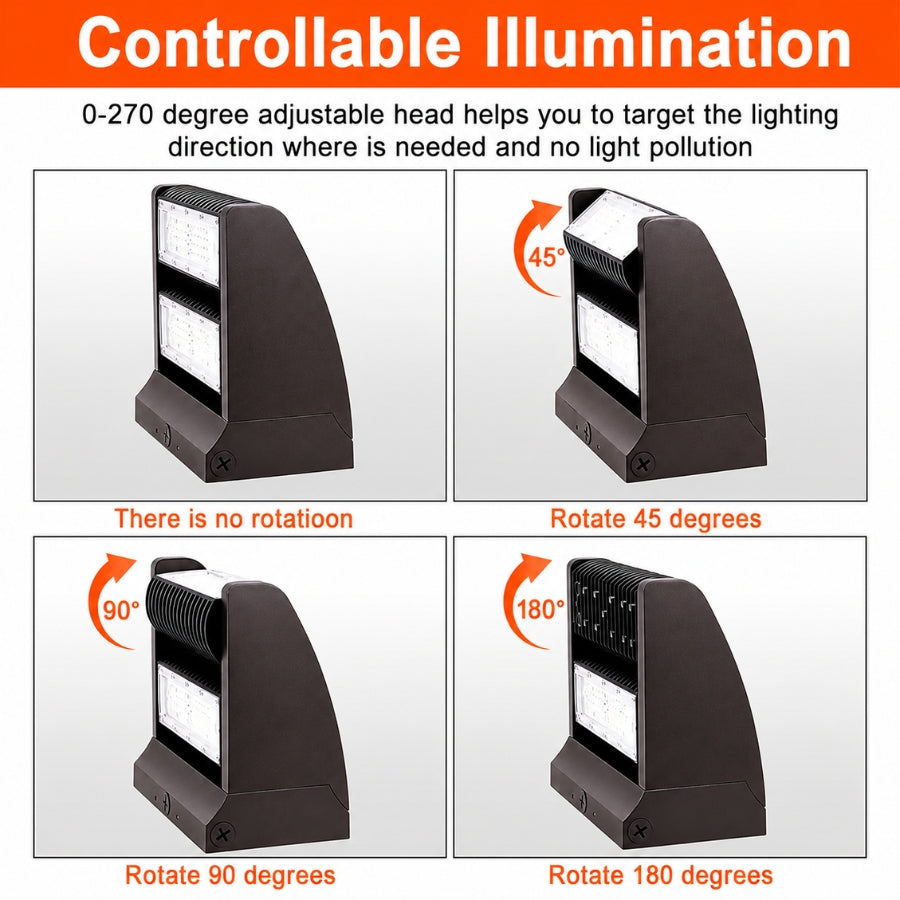

ADJUSTABILITY AND CONTROL OPTIONS
Designed for maximum installation flexibility, this fixture includes:
- 350° rotatable optical module
- Adjustable uplight or downlight distribution
- Precision beam aiming after installation
- 0-10V dimming compatibility
- Universal 120-277V driver
- Optimized light placement with reduced glare and light spill
These features allow contractors to customize illumination for different building layouts without changing fixtures.
LONGEVITY AND RELIABILITY
Commercial-grade components ensure dependable long-term operation.
Key benefits include:
- 50,000+ hour LED lifespan
- Reduced maintenance costs
- Stable lumen output
- Efficient thermal management
- Long-life commercial LED driver
- Corrosion-resistant exterior finish
- Reliable year-round outdoor performance
BUILD QUALITY AND PHYSICAL CHARACTERISTICS
Engineered for demanding outdoor applications, this fixture features:
- Heavy-duty die-cast aluminum housing
- Precision 350° rotating optical assembly
- UV-resistant polycarbonate lens
- Commercial-grade bronze powder-coated finish
- Integrated aluminum heat sink
- Sealed LED compartment
- IP65 wet-location protection
- Architectural commercial appearance

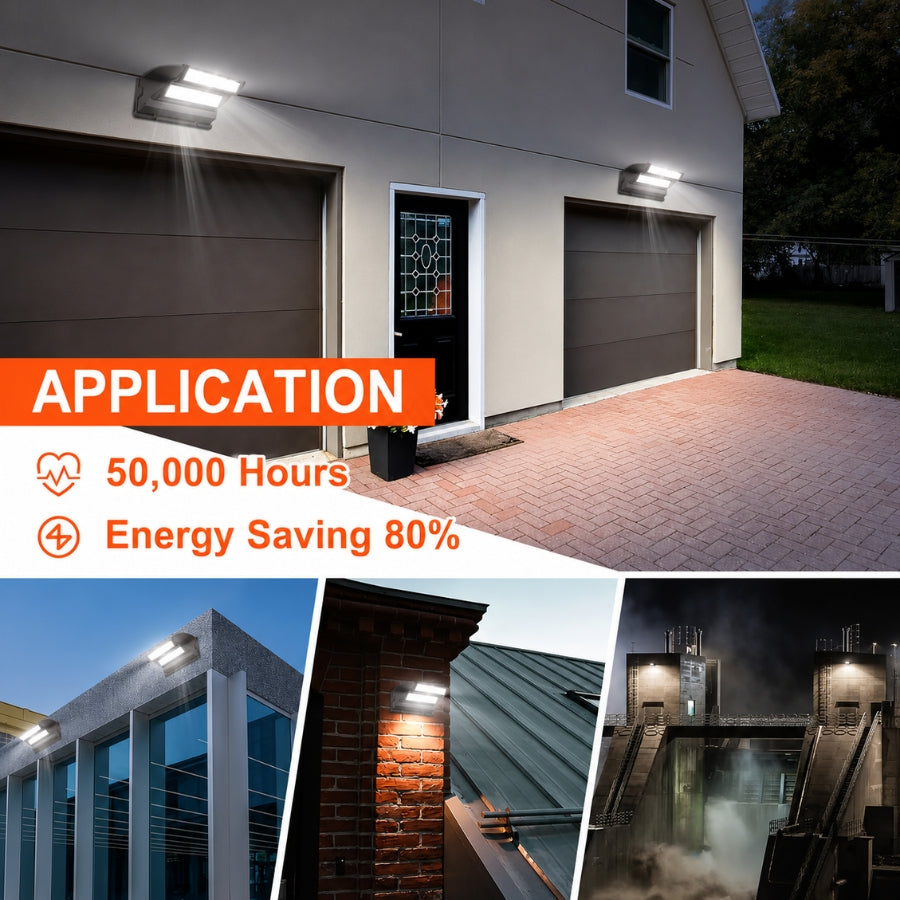

WHERE THIS PRODUCT FITS BEST
Ideal for:
- Commercial buildings
- Warehouses
- Distribution centers
- Manufacturing facilities
- Office complexes
- Shopping centers
- Parking garages
- Loading docks
- Apartment communities
- Schools and universities
- Auto dealerships
- Industrial facilities
- Building perimeters
- Security lighting
- Municipal properties
INSTALLATION AND LONG-TERM USE
The universal 120-277V driver supports both retrofit and new construction installations. The included back mounting plate simplifies installation, while the adjustable optic allows contractors to fine-tune light direction after mounting.
With its IP65-rated enclosure, corrosion-resistant finish, and commercial-grade LED components, this fixture delivers years of dependable operation while minimizing maintenance requirements.
HOW THIS FIXTURE IS COMMONLY USED
This Rotatable LED Wall Pack is commonly installed to:
- Replace 250W-360W HID wall packs
- Illuminate commercial entrances
- Improve warehouse security
- Light loading docks
- Illuminate industrial buildings
- Enhance parking lot visibility
- Reduce light trespass
- Illuminate pedestrian walkways
- Improve perimeter security
- Lower energy and maintenance costs

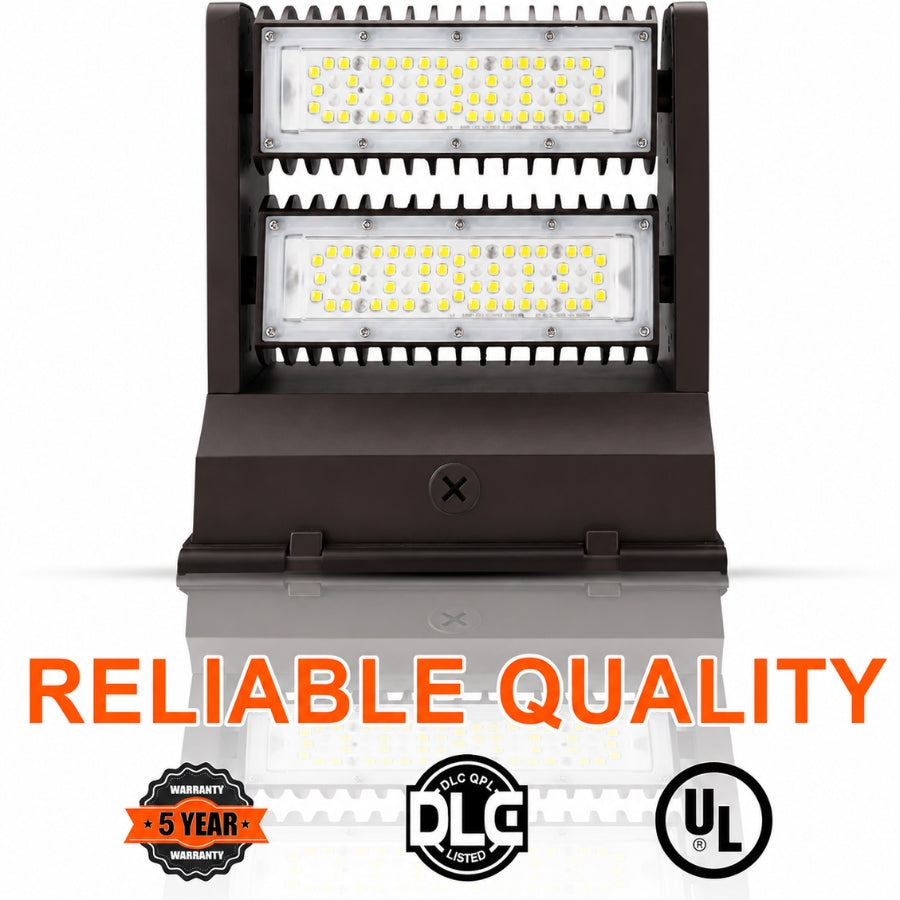

SAFETY, CERTIFICATIONS, AND WARRANTY
Built to meet demanding commercial lighting standards.
- DLC Premium Listed
- IP65 Wet Location Rated
- Commercial-grade LED driver
- 0-10V dimming compatible
- Energy-efficient LED technology
- Heavy-duty outdoor construction
- 5-Year Limited Warranty
FREQUENTLY ASKED QUESTIONS
What makes this wall pack different from standard wall packs?
Its 350° rotatable optical system allows installers to direct light upward, downward, or anywhere in between, providing customized illumination while reducing glare and unwanted light spill.
How bright is this fixture?
It produces up to 16,200 lumens while consuming only 120 watts.
Can the optics be adjusted after installation?
Yes. The optical module can be rotated after installation for precise light distribution.
Is this fixture dimmable?
Yes. It supports standard 0-10V dimming systems.
What HID fixture can it replace?
It is commonly used as an energy-efficient replacement for 250W to 360W metal halide or high-pressure sodium wall pack fixtures.

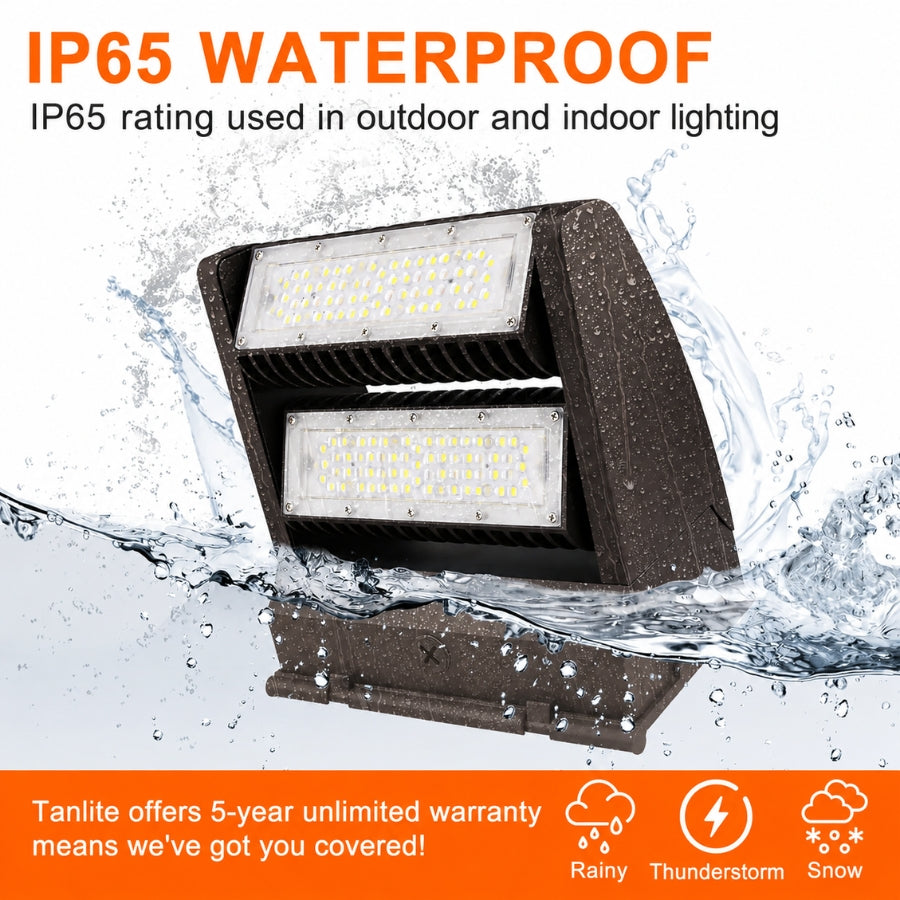

Is it suitable for outdoor installations?
Yes. Its IP65-rated enclosure is engineered for wet-location commercial and industrial environments.
What voltage does it support?
The fixture operates on 120-277V AC universal input power.
How long will the LEDs last?
The LED system is rated for more than 50,000 hours of operation.
APPLICATION QUESTIONS AND CLARIFICATION
Is this fixture suitable for commercial buildings?
Yes. It is ideal for office buildings, warehouses, retail centers, apartment complexes, manufacturing plants, schools, and municipal facilities.
Can it be used for security lighting?
Absolutely. The high lumen output and adjustable optics make it an excellent solution for perimeter security, service entrances, and building exteriors.
Why choose a rotatable wall pack?
The 350° rotating optic allows installers to optimize beam direction for different mounting heights and building designs while reducing light trespass and improving lighting efficiency.
Is it suitable for loading docks and industrial facilities?
Yes. Its powerful output and adjustable beam make it ideal for loading docks, warehouses, distribution centers, and manufacturing facilities.
Can it withstand harsh weather?
Yes. The die-cast aluminum housing, bronze powder-coated finish, UV-resistant polycarbonate lens, and IP65 weatherproof rating are designed to provide reliable year-round performance in rain, dust, and demanding outdoor conditions.
