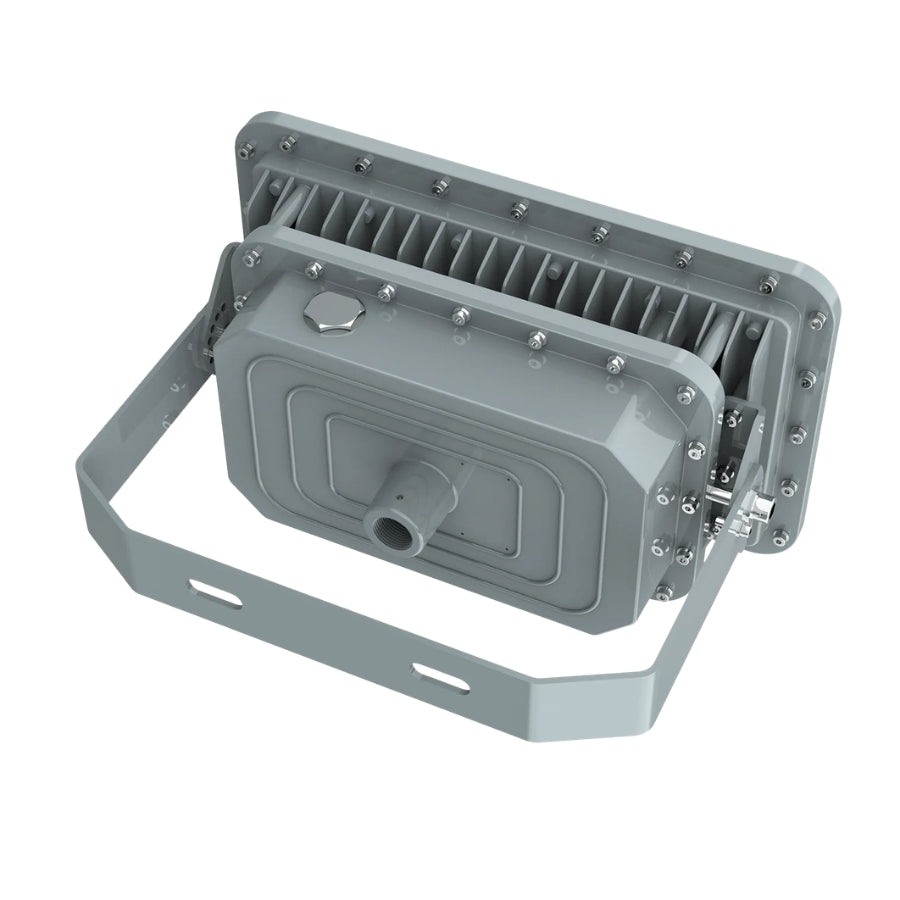

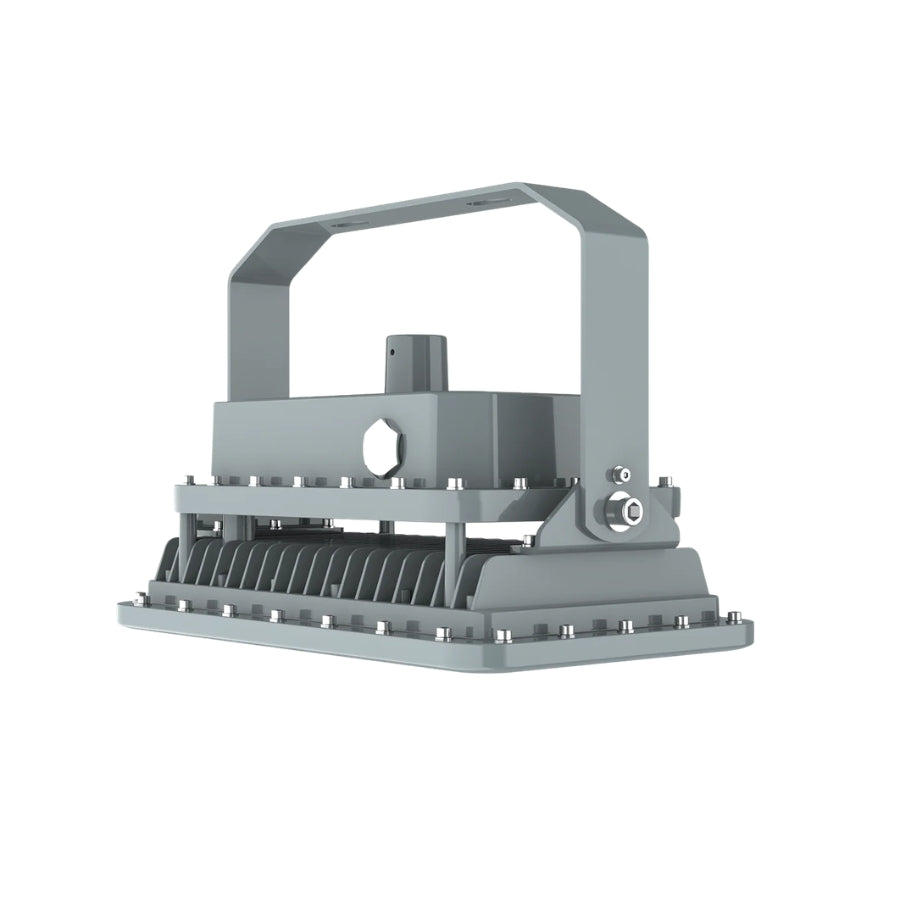

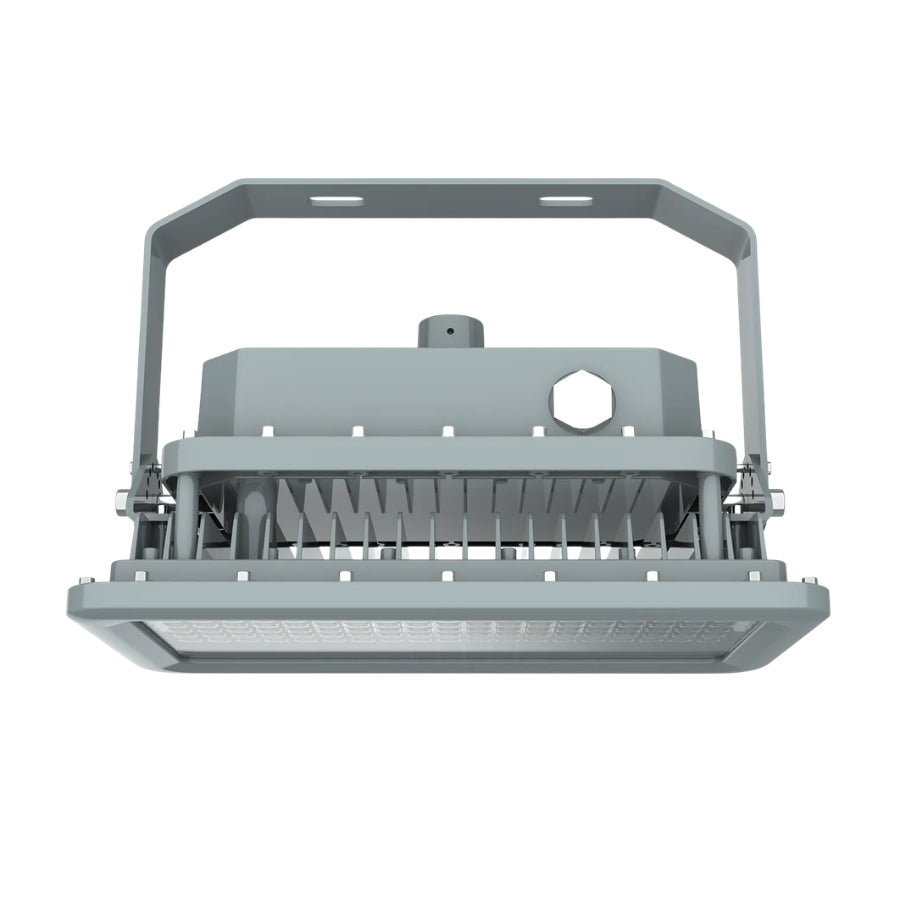

150W Explosion-Proof LED Hazardous Location Light, 21,000 Lumens, 5000K, 140 lm/W, Class I Div 2 Groups A/B/C/D, 100-277V, 0-10V Dimmable, 120° Beam, 450W MH Replacement, UL 844, UL 1598, IP66/IP67, 5-Year Warranty

Product Overview

The 150W Hazardous Location LED Light delivers high-output, energy-efficient illumination for industrial and marine environments where dependable performance is essential. Producing up to 21,000 lumens at 140 lm/W, this 5000K LED fixture provides powerful, uniform lighting while using significantly less energy than traditional high-wattage HID systems.

Designed for demanding locations, it combines a rugged die-cast aluminum housing, tempered glass construction, IP66/IP67 protection, and IK08 impact resistance. With a wide 120° beam angle, the fixture provides broad coverage for industrial work areas, loading zones, processing facilities, storage spaces, and other challenging environments.

The fixture operates on 100–277V AC and includes 0–10V dimming, making it easy to integrate into a variety of commercial and industrial lighting systems. A battery backup function is also available for applications that require emergency lighting capability.

Key Features

• 21,000 lumens of high-output illumination

• Up to 140 lm/W efficiency

• 150W rated power

• 5000K daylight white

• Wide 120° beam angle

• 100–277V AC input

• Built-in 0–10V dimming

• Optional battery backup function

• Designed for hazardous and marine applications

• Durable die-cast aluminum housing

• Tempered glass construction

• IP66/IP67 protection

• IK08 impact resistance with glass cover

• IK10 available with wire guard

• Operating temperature from -40°F to 131°F

• L70 rated at 150,000+ hours at 55°C

• Ceiling and wall mounting options

• 5-year standard warranty

Technical Specifications

Built for Harsh Industrial & Marine Environments

This 150W LED luminaire is designed for demanding locations where moisture, dirt, dust, corrosion, vibration, wind, water, snow, and elevated ambient temperatures may be present.

It is specified for a range of hazardous-location applications, including Class I Division 2 Groups A, B, C & D, Class I Zone 2 Group IIC, Class II Division 1 Groups E, F & G, Class II Division 2 Groups F & G, Class II Zone 21 Group IIIC, and Class III applications.

The fixture is also specified for UL 844 hazardous locations, UL 1598 wet locations, UL 1598A marine outside type, and UL 924 emergency lighting.

Ideal Applications

The combination of high output, rugged construction, and environmental protection makes this fixture a strong choice for:

• Power plants

• Heavy industrial facilities

• Storage facilities

• Paper mills

• Wastewater treatment plants

• Loading docks and platforms

• Offshore environments

• Chemical processing facilities

• Petrochemical facilities

• Metallurgical facilities

• Coal mines

• Food and alcohol processing facilities

• Industrial warehouses

• Marine environments

• Industrial retrofit projects

Save Energy With High-Efficiency LED Lighting

With output reaching 21,000 lumens at 140 lm/W, this 150W fixture provides a high-performance alternative to traditional 300–450W metal halide or HPS lighting.

The lower power requirement can help reduce energy consumption across facilities with long operating hours, while the long LED service life helps minimize replacement and maintenance requirements.

With L70 exceeding 150,000 hours at 55°C, it is built for long-term performance in demanding applications.

0–10V Dimming & Emergency Options

Integrated 0–10V dimming provides greater control over lighting levels and can help optimize energy use when full output is not required.

For applications where backup lighting is important, a battery backup function is also available.

These options make the fixture suitable for facilities with different operational, energy management, and emergency lighting requirements.

Simple Installation With Flexible Mounting

The fixture is available with ceiling and wall mounting options, allowing it to adapt to different industrial layouts and installation requirements.

A side 3/4" NPT cable entry provides a practical connection point for installation.

Bulk & Project Pricing Available

Planning a large industrial lighting upgrade or need multiple fixtures for a new construction project?

Bulk purchasing and project pricing are available for qualifying orders.

We can assist with:

• Bulk fixture orders

• Contractor purchases

• Distributor orders

• Industrial retrofit projects

• Facility-wide lighting upgrades

• New construction projects

• Project quantity planning

Contact UpgradeToLED for volume pricing and project assistance.

Frequently Asked Questions

How many lumens does this 150W LED light produce?

This fixture produces up to 21,000 lumens with an efficiency of up to 140 lumens per watt.

What traditional fixture does it replace?

The 150W LED is designed as an approximate replacement for 300–450W metal halide or HPS lighting, depending on the existing fixture and application.

What color temperature is this light?

This model uses 5000K daylight white, providing bright, clear illumination for industrial work environments.

Does it support 0–10V dimming?

Yes. 0–10V dimming is included, providing control over light output and energy consumption.

Is battery backup available?

Yes. A battery backup function is available as an option for applications requiring emergency lighting capability.

Is this fixture suitable for outdoor environments?

Yes. The fixture is rated IP66/IP67 and designed for demanding environments where moisture, water, dust, and other harsh conditions may be present.

What is the operating temperature range?

The fixture is rated for operation from -40°F to 131°F.

How long does the LED system last?

The LED system is rated L70 for more than 150,000 hours at 55°C, providing long-term lumen maintenance.

What mounting options are available?

The fixture supports ceiling and wall mounting. Mounting accessories are available depending on the installation configuration.

Is this light suitable for hazardous locations?

Yes. It is designed and specified for a range of hazardous-location applications, including Class I Division 2, Class II, Class III, Zone 2, and Zone 21 environments. Always verify the required classification for your specific installation.

Is this suitable for marine applications?

Yes. The fixture is designed for marine and demanding industrial applications and is specified for UL 1598A Marine Outside Type applications.

Do you offer bulk pricing?

Yes. Bulk and project pricing is available for qualifying orders. Contact us for volume pricing on larger quantities.

Shop With Confidence

Get powerful industrial lighting without the high energy consumption of traditional HID fixtures. This 150W LED luminaire delivers up to 21,000 lumens, 140 lm/W efficiency, rugged environmental protection, flexible dimming, and long LED life for demanding applications.

Backed by a 5-year warranty, it is a reliable choice for industrial facilities, marine environments, processing plants, loading areas, and large-scale lighting upgrades.

Need multiple fixtures? Contact UpgradeToLED for bulk pricing and project assistance.
