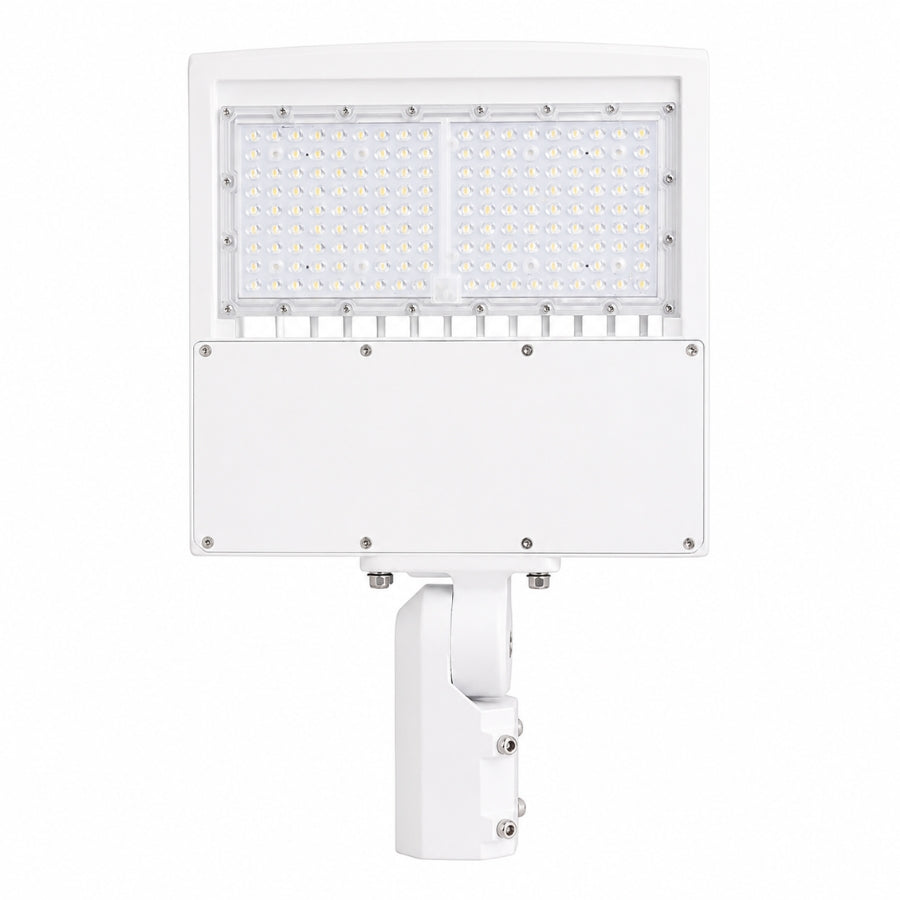

150W LED Parking Lot Light, 21,000 Lumens, 5000K Daylight White, Type III/Type V Distribution, 277-480V, Photocell Ready, 600W Metal Halide Equivalent, 0-10V Dimmable, IP65 Waterproof, White Housing, UL & DLC Certified, 5-Year Warranty

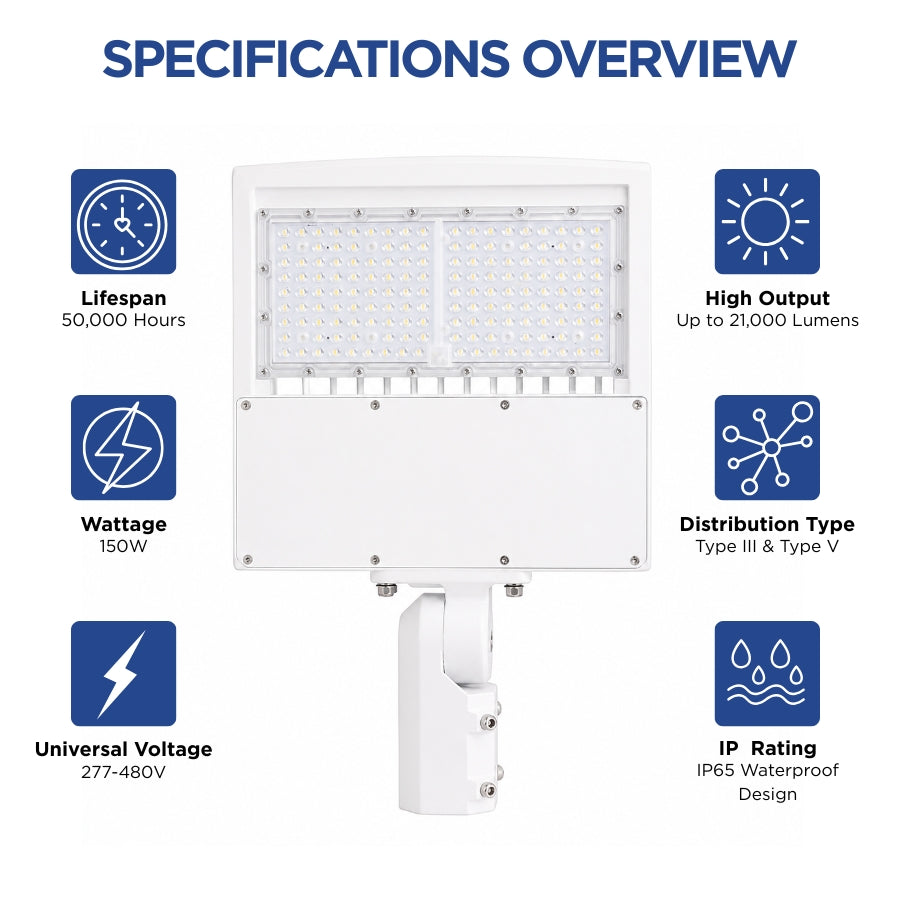

PRODUCT SPECIFICATIONS

DURABLE CONSTRUCTION

MEASUREMENTS

FEATURES / ACCESSORIES

PRODUCT OVERVIEW

The UpgradeToLED 150W LED Parking Lot Light is a commercial-grade outdoor lighting fixture engineered for parking lots, roadways, warehouses, industrial facilities, campuses, and security lighting applications. Producing 21,000 lumens of crisp 5000K daylight white illumination, this fixture delivers excellent visibility while reducing energy consumption compared to traditional 600W metal halide systems.

Designed for high-voltage 277-480V applications, this LED shoebox fixture is ideal for commercial and industrial facilities requiring reliable, energy-efficient outdoor lighting. Available with Type III or Type V optical distributions, it provides flexible lighting solutions for perimeter and open-area applications.

CORE PERFORMANCE AND OUTPUT

This 150W LED parking lot light produces 21,000 lumens with an efficacy of approximately 140 lumens per watt.

Performance highlights include:

• 21,000 Lumens Output
• 5000K Daylight White
• Type III Distribution Option
• Type V Distribution Option
• 277-480V High Voltage Operation

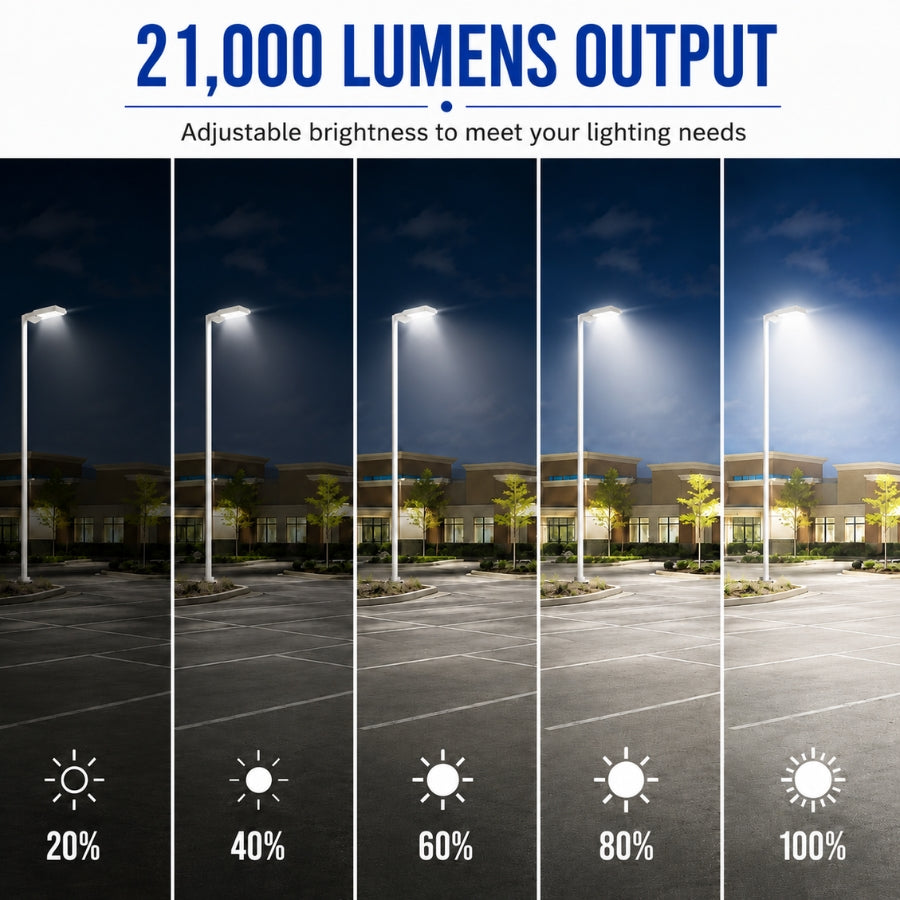

• 0-10V Dimming
• 600W Metal Halide Replacement

The advanced LED system provides bright, uniform illumination while reducing utility and maintenance costs.

ADJUSTABILITY AND CONTROL OPTIONS

This fixture includes advanced lighting controls designed to maximize efficiency and flexibility.

Control features include:

• Photocell Ready Design
• 0-10V Dimming
• Type III Distribution
• Type V Distribution
• High Voltage 277-480V Driver

The photocell-ready design allows users to add automatic dusk-to-dawn operation when desired.

LONGEVITY AND RELIABILITY

Designed for demanding commercial environments, this fixture is rated for over 50,000 hours of operation. Its advanced thermal management system effectively dissipates heat, helping maintain consistent lumen output and extending component life.

Compared to traditional HID lighting systems, this LED solution significantly reduces maintenance costs by eliminating lamp and ballast replacements.

Commercial-grade LED components and driver technology provide dependable long-term performance.

BUILD QUALITY AND PHYSICAL CHARACTERISTICS

Constructed from rugged die-cast aluminum, this fixture offers excellent durability and heat dissipation. The slim-profile design minimizes wind loading while maintaining structural integrity.

Its UV-resistant polycarbonate lens protects internal LED components while maximizing optical efficiency.

The corrosion-resistant white powder-coated finish provides a clean architectural appearance ideal for commercial buildings, schools, healthcare facilities, and municipal installations.

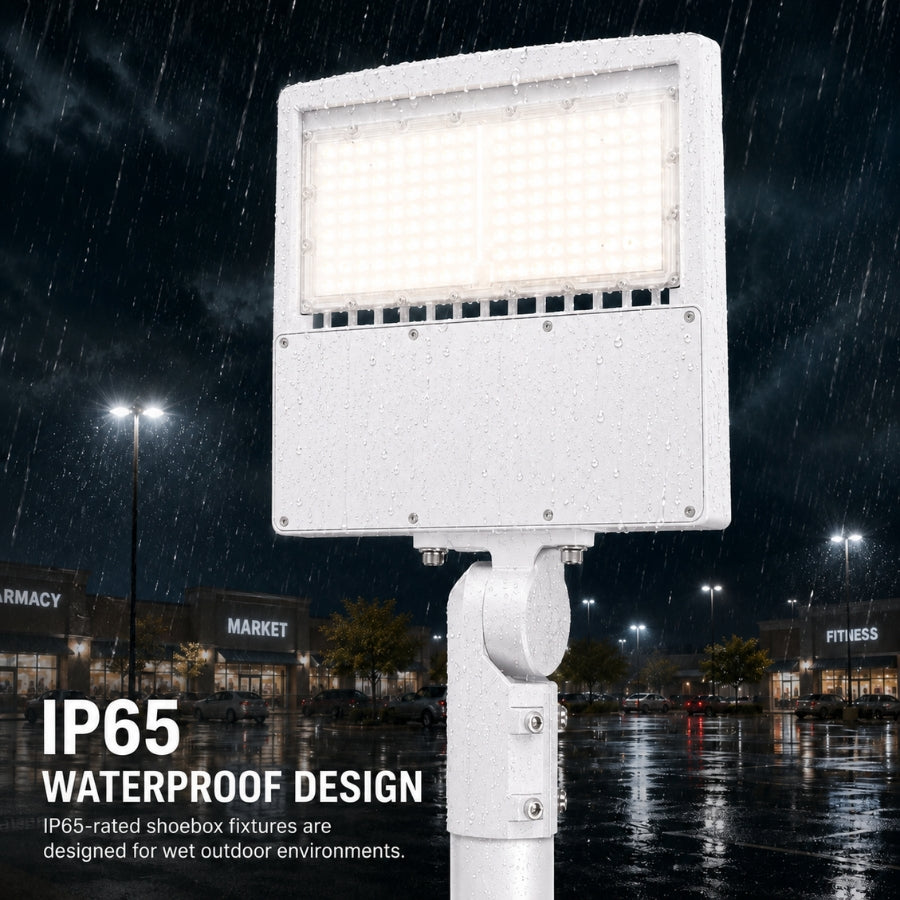

Its IP65-rated enclosure protects against rain, dust, snow, and harsh environmental conditions.

WHERE THIS PRODUCT FITS BEST

This LED parking lot light is ideal for:

• Parking Lots
• Commercial Properties
• Warehouses
• Distribution Centers
• Industrial Facilities
• Manufacturing Plants
• School Campuses
• Municipal Properties
• Healthcare Facilities
• Airport Facilities
• Auto Dealerships
• Security Lighting
• Walkways
• Roadways
• Outdoor Recreation Areas

Type III optics work well for perimeter lighting, while Type V optics provide symmetrical coverage for open parking lots.

INSTALLATION AND LONG-TERM USE

The slip fitter mount allows quick installation on standard outdoor lighting poles and provides angle adjustment for optimized light placement.

The fixture's photocell-ready design enables easy future upgrades to automatic dusk-to-dawn operation.

Its durable construction and maintenance-free LED technology help reduce long-term ownership costs while delivering years of reliable performance.

HOW THIS FIXTURE IS COMMONLY USED

This fixture is commonly mounted between 15 and 25 feet depending on application requirements.

Typical installations include:

• Commercial Parking Lots
• Retail Centers
• Business Parks
• Industrial Facilities
• Warehouses
• Distribution Centers
• School Parking Lots
• Municipal Facilities
• Security Perimeters
• Transportation Facilities

The 21,000-lumen output provides excellent visibility for medium-sized outdoor lighting applications.

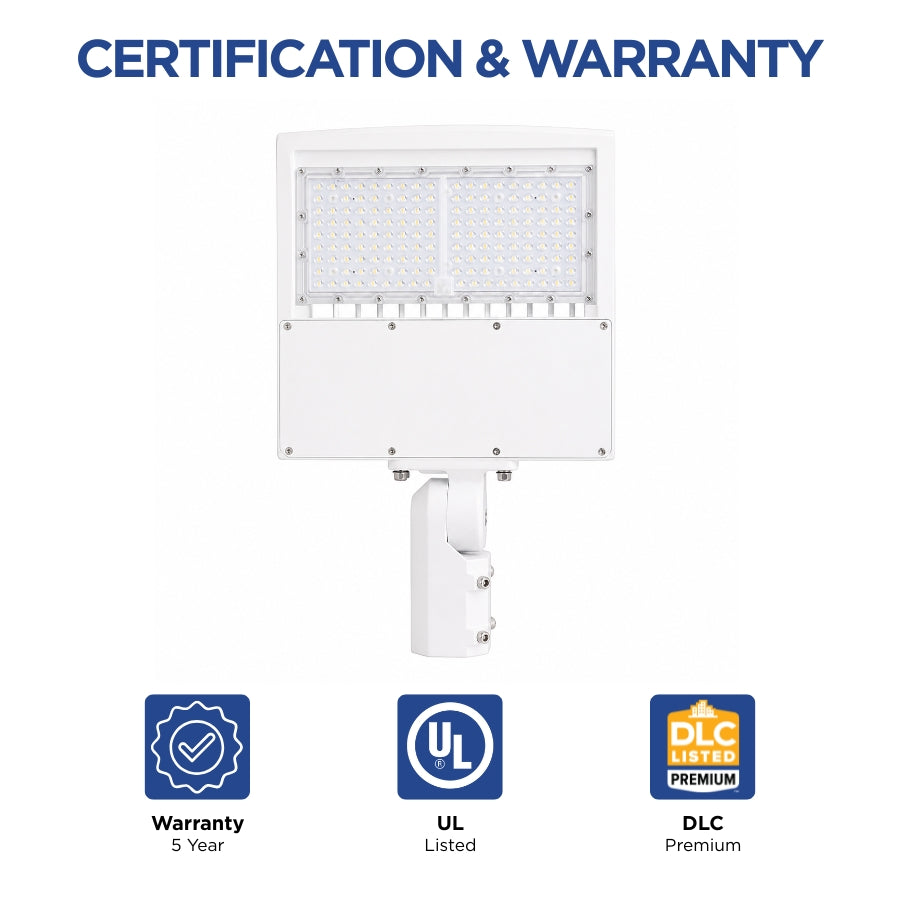

SAFETY, CERTIFICATIONS, AND WARRANTY

This fixture is designed to meet demanding commercial lighting standards and includes:

• UL Listed
• DLC Premium Certified
• Rebate Eligible
• IP65 Waterproof
• Photocell Ready
• 0-10V Dimming
• 277-480V Operation
• 5-Year Warranty

These certifications help ensure safety, energy efficiency, and eligibility for utility rebate programs.

FREQUENTLY ASKED QUESTIONS

Q: What metal halide fixture does this light replace?

A: This 150W LED parking lot light replaces traditional 600W metal halide fixtures.

Q: Is this fixture designed for high-voltage applications?

A: Yes. This model operates on 277V-480V electrical systems commonly found in industrial and commercial facilities.

Q: Does the fixture include a photocell?

A: No. This model is photocell-ready and can be equipped with a compatible photocell for automatic dusk-to-dawn operation.

Q: Is the fixture dimmable?

A: Yes. It supports standard 0-10V dimming controls.

Q: What are the fixture dimensions?

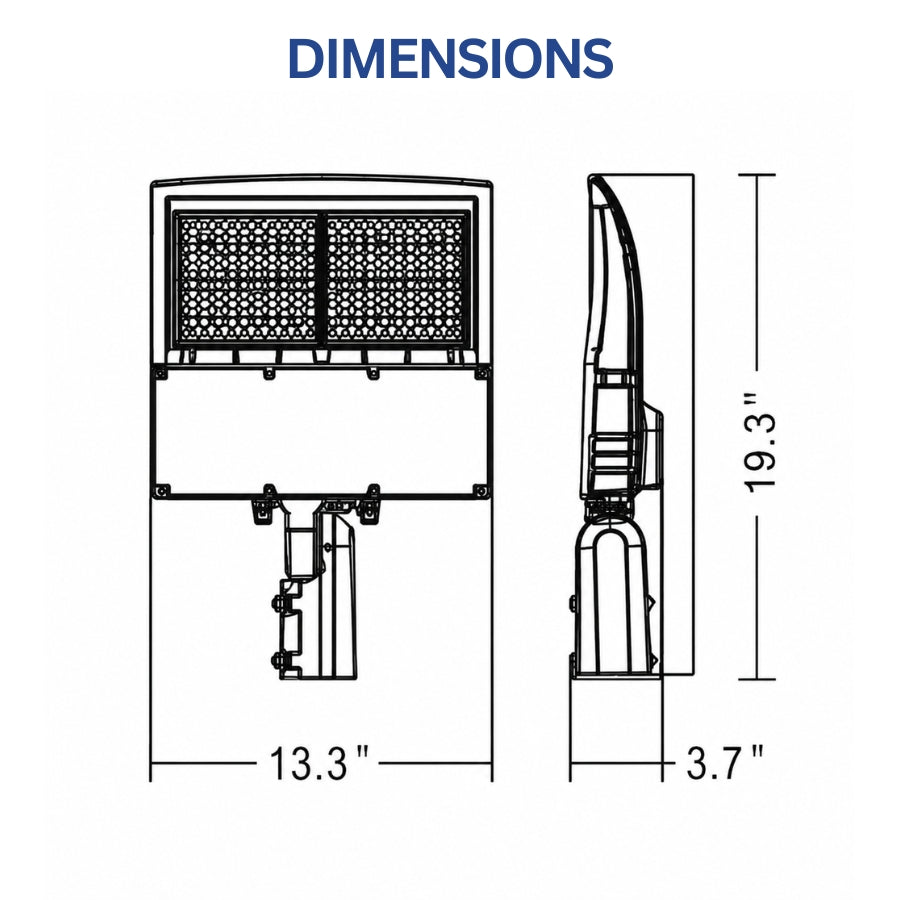

A: The fixture measures 19.3" high × 13.3" wide × 3.7" deep and weighs approximately 12 lbs.

Q: What beam distributions are available?

A: This fixture is available with either Type III or Type V optical distribution.

APPLICATION QUESTIONS AND CLARIFICATION

Q: Is 5000K suitable for commercial parking lots?

A: Yes. 5000K daylight white illumination provides excellent visibility, improved security, and enhanced color recognition.

Q: Why choose a 277-480V fixture?

A: High-voltage fixtures connect directly to industrial and commercial electrical systems, simplifying installation and reducing equipment requirements.

Q: Can this fixture operate in harsh weather conditions?

A: Yes. The IP65-rated housing protects against rain, dust, snow, and environmental contaminants.

Q: What is the difference between Type III and Type V distribution?

A: Type III optics are ideal for perimeter and roadway lighting, while Type V optics provide symmetrical coverage for open parking lots and large outdoor areas.

Q: Is this fixture rebate eligible?

A: Yes. DLC Premium certification may qualify this fixture for utility rebate programs depending on local utility requirements.
