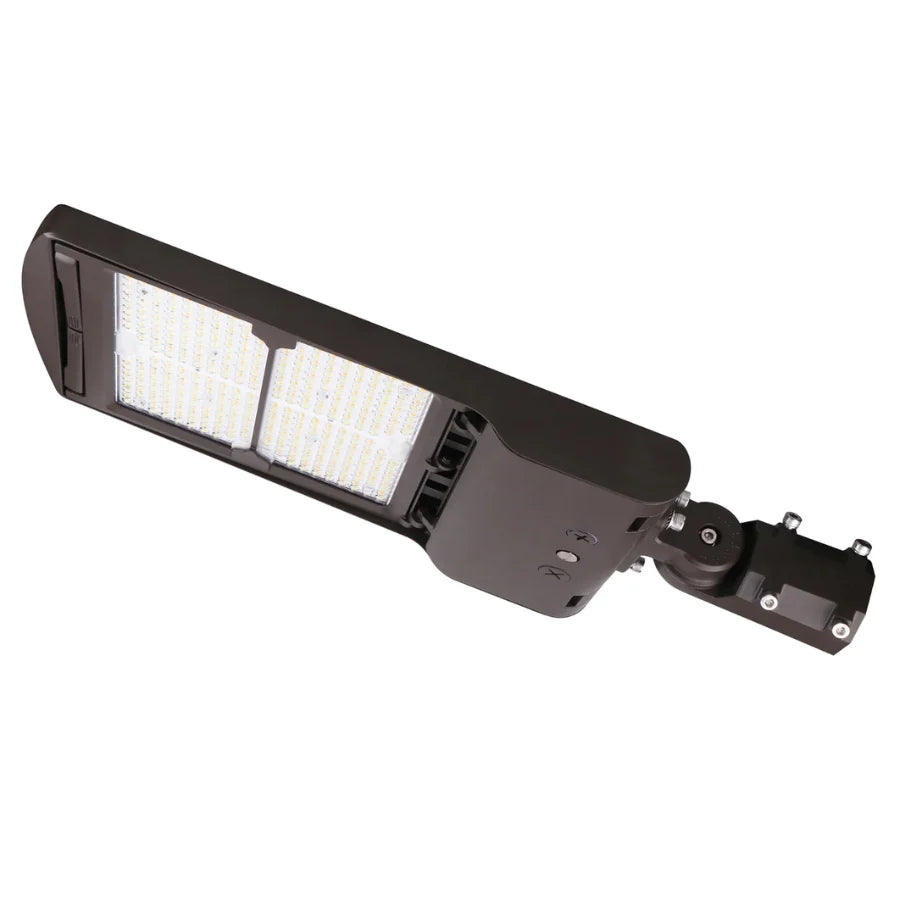

200W/240W/300W Selectable LED Parking Lot Light, 45,000 Lumens, 3000K/4000K/5000K Selectable, Type III Distribution, 120-277V, 1,000W Metal Halide Equivalent, 0-10V Dimmable, IP65 Waterproof, Bronze Housing, UL & DLC Certified, 5-Year Warranty

PRODUCT SPECIFICATIONS

DURABLE CONSTRUCTION

MEASUREMENTS

FEATURES / ACCESSORIES

PRODUCT OVERVIEW

The UpgradeToLED 200W/240W/300W Selectable LED Parking Lot Light is a versatile commercial outdoor lighting solution designed for parking lots, commercial campuses, industrial facilities, warehouses, roadways, and security lighting applications. Featuring both wattage and color temperature selection, this fixture allows installers to customize performance on-site while reducing inventory requirements.

Delivering up to 45,000 lumens and replacing traditional fixtures up to 1,000W metal halide, this LED parking lot light provides outstanding illumination, energy savings, and long-term reliability. The slim-profile bronze housing and Type III distribution make it ideal for perimeter lighting and roadway applications.

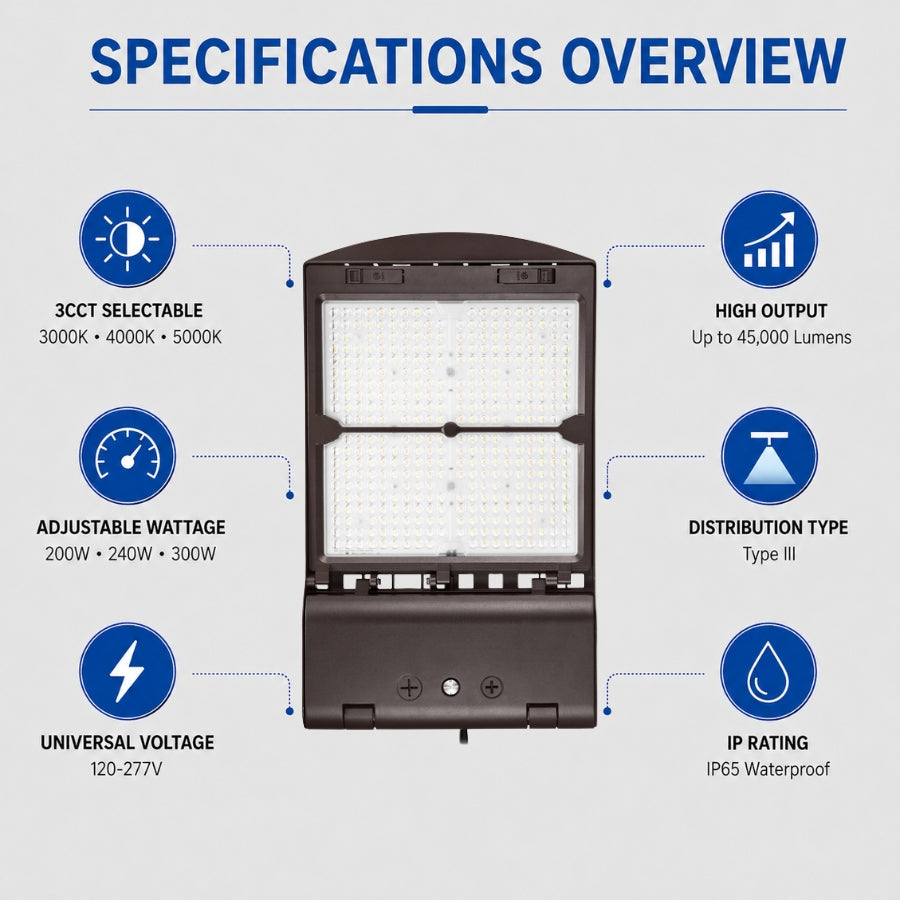

CORE PERFORMANCE AND OUTPUT

This fixture delivers exceptional performance with selectable wattages of 200W, 240W, or 300W and lumen output reaching up to 45,000 lumens.

Performance highlights include:

• Up to 45,000 Lumens
• Up to 150 Lumens Per Watt
• Type III Distribution
• 120-277V Universal Voltage
• 0-10V Dimming
• Up to 1,000W Metal Halide Replacement

The Type III optic provides wide forward light projection, making it ideal for parking lots, roadways, pathways, and perimeter lighting applications.

ADJUSTABILITY AND CONTROL OPTIONS

Designed for maximum flexibility, this fixture includes both wattage and color selection capabilities.

Adjustable features include:

• 200W / 240W / 300W Selectable Wattage
• 3000K / 4000K / 5000K Selectable Color Temperature
• 0-10V Dimming
• Universal 120-277V Input
• Type III Optical Distribution

These field-selectable settings allow contractors to fine-tune lighting levels without changing fixtures.

LONGEVITY AND RELIABILITY

Engineered for long-term commercial use, this fixture is rated for over 50,000 hours of operation. Advanced thermal management technology helps maintain consistent lumen output while protecting internal LED components.

Compared to metal halide systems, this LED fixture dramatically reduces maintenance costs by eliminating frequent lamp and ballast replacements.

Its premium-grade driver and high-efficiency LEDs ensure dependable performance in demanding outdoor environments.

BUILD QUALITY AND PHYSICAL CHARACTERISTICS

The fixture features a rugged die-cast aluminum housing designed for superior durability and heat dissipation. The slim-profile design reduces wind loading while maintaining structural strength.

The impact-resistant polycarbonate lens protects LED components while maximizing optical efficiency.

Finished with a corrosion-resistant bronze powder coating, the fixture is suitable for harsh outdoor conditions and commercial installations.

The IP65-rated construction protects against rain, dust, snow, and airborne contaminants.

WHERE THIS PRODUCT FITS BEST

This LED parking lot light is ideal for:

• Parking Lots
• Commercial Properties
• Warehouses
• Distribution Centers
• Manufacturing Facilities
• Business Parks
• School Campuses
• Municipal Properties
• Airport Facilities
• Auto Dealerships
• Security Lighting
• Roadway Lighting
• Walkways
• Tennis Courts
• Pickleball Courts

The Type III optic is particularly effective for perimeter and roadway installations.

INSTALLATION AND LONG-TERM USE

The slip fitter mount provides easy installation on standard outdoor lighting poles and allows fixture angle adjustment for optimized light distribution.

Selectable wattage and color temperature settings simplify project planning and allow installers to customize output without stocking multiple fixture models.

The durable construction and maintenance-free LED design help reduce ownership costs over the life of the fixture.

HOW THIS FIXTURE IS COMMONLY USED

This fixture is commonly mounted at heights between 20 and 35 feet depending on site requirements.

Typical applications include:

• Commercial Parking Lots
• Retail Centers
• Industrial Facilities
• Warehouses
• Distribution Yards
• Campus Lighting
• Municipal Parking Areas
• Security Perimeters
• Transportation Centers
• Recreational Facilities

The high lumen output and adjustable settings make it suitable for a wide range of outdoor lighting projects.

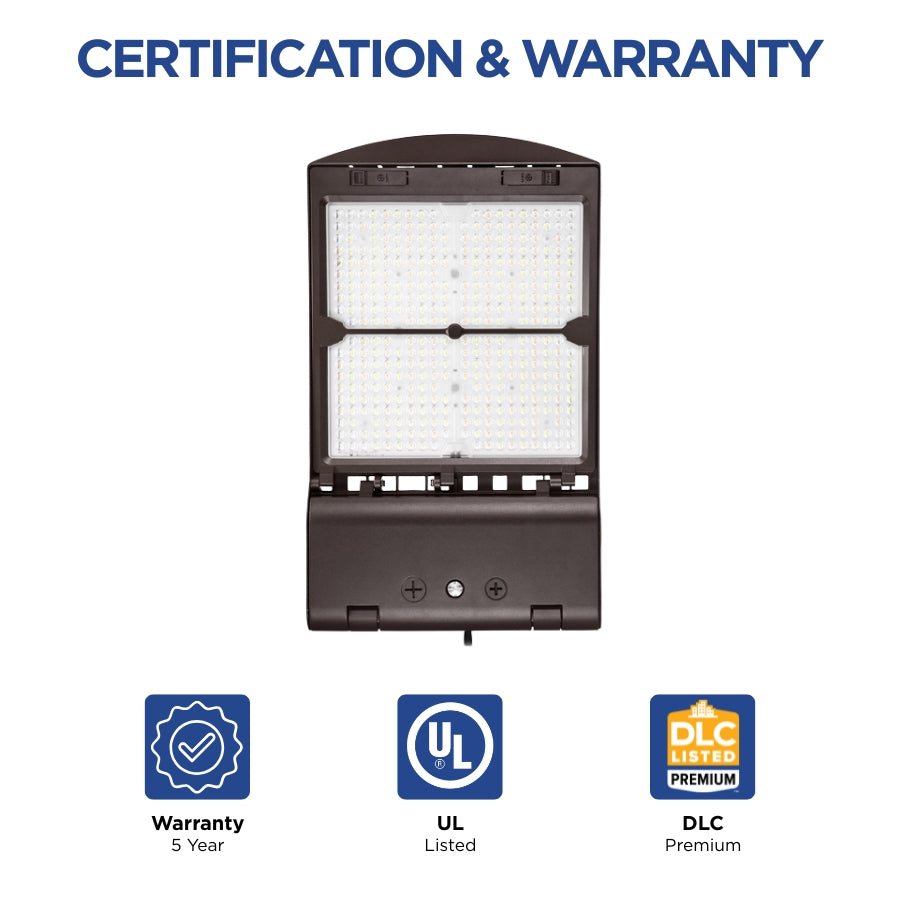

SAFETY, CERTIFICATIONS, AND WARRANTY

This fixture is designed to meet demanding commercial lighting standards and includes:

• UL Listed
• DLC Premium Certified
• Rebate Eligible
• IP65 Waterproof
• 0-10V Dimming
• 120-277V Operation
• Selectable Wattage
• Selectable Color Temperature
• 5-Year Warranty

These certifications help ensure safety, energy efficiency, and eligibility for many utility rebate programs.

FREQUENTLY ASKED QUESTIONS

Q: What metal halide fixture does this light replace?

A: Depending on the selected wattage, this fixture can replace traditional metal halide fixtures up to 1,000W.

Q: Can the wattage be changed after installation?

A: Yes. The fixture offers selectable wattage settings of 200W, 240W, and 300W.

Q: Can the color temperature be adjusted?

A: Yes. Users can select between 3000K warm white, 4000K neutral white, and 5000K daylight white.

Q: Is the fixture dimmable?

A: Yes. It supports standard 0-10V dimming controls.

Q: What are the fixture dimensions?

A: The fixture measures approximately 28.4" × 11.0" × 3.6" and weighs approximately 17 lbs.

Q: What distribution pattern is included?

A: This fixture features Type III optical distribution.

APPLICATION QUESTIONS AND CLARIFICATION

Q: Why choose a selectable wattage fixture?

A: Selectable wattage allows installers to adjust light output for specific projects while reducing inventory requirements and simplifying future upgrades.

Q: Which color temperature should I choose?

A: 3000K provides a warmer appearance, 4000K offers balanced neutral lighting, and 5000K delivers maximum visibility and security.

Q: Is this fixture suitable for commercial parking lots?

A: Yes. The high lumen output and Type III distribution make it ideal for commercial parking areas, business parks, and roadways.

Q: Can this fixture operate in harsh weather?

A: Yes. The IP65-rated housing protects against rain, dust, snow, and outdoor environmental conditions.

Q: Is this fixture rebate eligible?

A: Yes. DLC Premium certification may qualify the fixture for utility rebate programs depending on local utility requirements.
