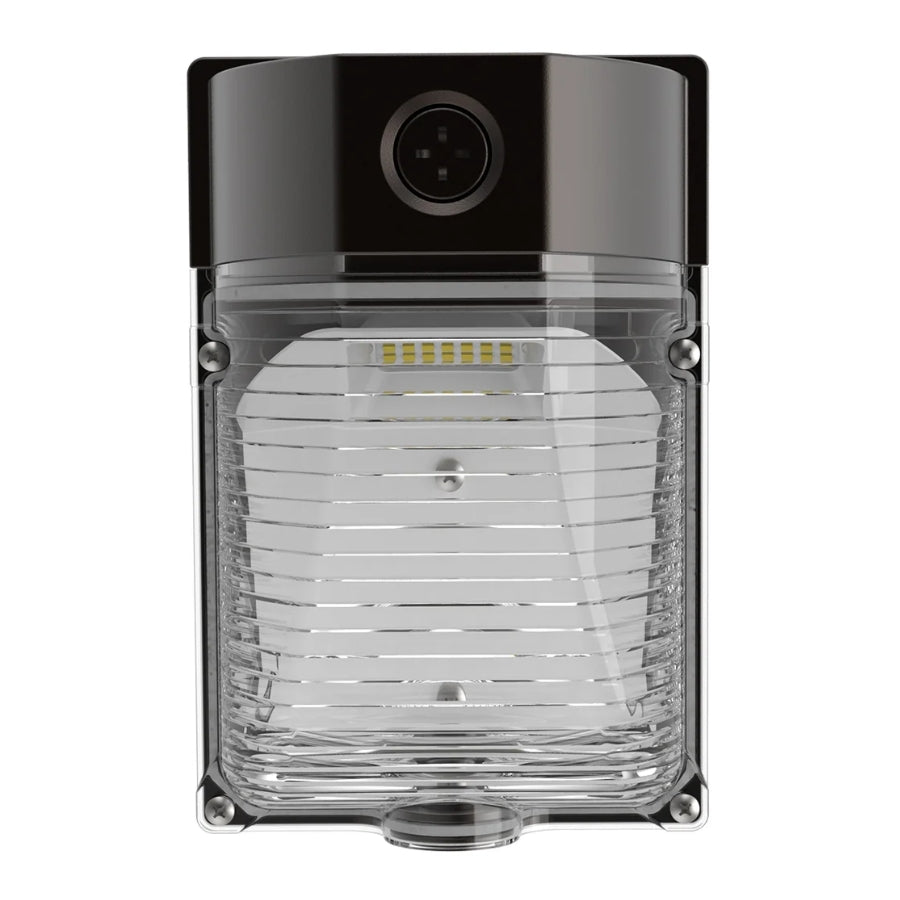

The UpgradeToLED 26W LED Mini Wall Pack delivers compact, energy-efficient outdoor illumination for commercial, industrial, and security lighting applications. Designed with a sleek, low-profile housing and selectable color temperatures, this fixture provides installation flexibility while maintaining a clean architectural appearance.
Powered by premium Lumileds 2835 LED chips, the fixture produces up to 3,588 lumens with an efficacy of 138 lumens per watt, making it an ideal replacement for traditional 50W-90W metal halide and high-pressure sodium fixtures. The integrated 3CCT selectable technology allows installers to choose between 3000K, 4000K, and 5000K color temperatures during installation, reducing inventory requirements while adapting to different project needs.
Constructed from rugged die-cast aluminum with a durable bronze powder-coated finish and high-transmittance polycarbonate optics, this mini wall pack is built for long-lasting outdoor performance. The fixture features a wide 120° beam angle that provides uniform illumination for entrances, walkways, loading areas, building perimeters, parking lots, and commercial exteriors.
A built-in universal photocell automatically turns the fixture on at dusk and off at dawn, maximizing energy savings and reducing maintenance requirements. Standard 0-10V dimming compatibility allows integration with modern lighting control systems for additional efficiency and control.
Operating on 120-277VAC, the fixture is UL Listed, cUL Listed, and DLC Premium Listed, with a 50,000-hour rated lifespan and a 5-year warranty, making it a dependable lighting solution for warehouses, factories, shopping centers, supermarkets, logistics facilities, parking lots, and auto dealerships.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | UpgradeToLED |
| Product Type | LED Mini Wall Pack |
| Model | ML-WPA-26W-XXK-P |
| Wattage | 26W |
| Lumen Output | 3,588 Lumens |
| Light Efficiency | 138 LM/W |
| Color Temperature | 3000K / 4000K / 5000K (3CCT Selectable) |
| Input Voltage | 120-277VAC |
| Input Current | 0.21A @120V / 0.09A @277V |
| Power Factor | >0.90 |
| CRI | >80 |
| Beam Angle | 120° |
| LED Chips | Lumileds 2835 |
| Driver | KH UL Driver |
| Housing Material | Die-Cast Aluminum |
| Lens Material | High-Transmittance Polycarbonate |
| Finish | Bronze Powder-Coated |
| Photocell | Built-In Universal Photocell |
| Dimming | 0-10V |
| Operating Temperature | -20°C to 45°C |
| Junction Temperature | <75°C |
| Fixture Efficiency | ≥90% |
| Dimensions | 8.22" × 5.55" × 3.15" |
| Lifetime | 50,000 Hours |
| Certifications | UL Listed, cUL Listed, DLC Premium |
| HID Replacement | 50W–90W MH/HPS |
| Warranty | 5-Year Limited |
| Applications | Warehouses, Stadiums, Factories, Parking Lots, Supermarkets, Shopping Malls, Logistics Centers, Auto Dealerships |
