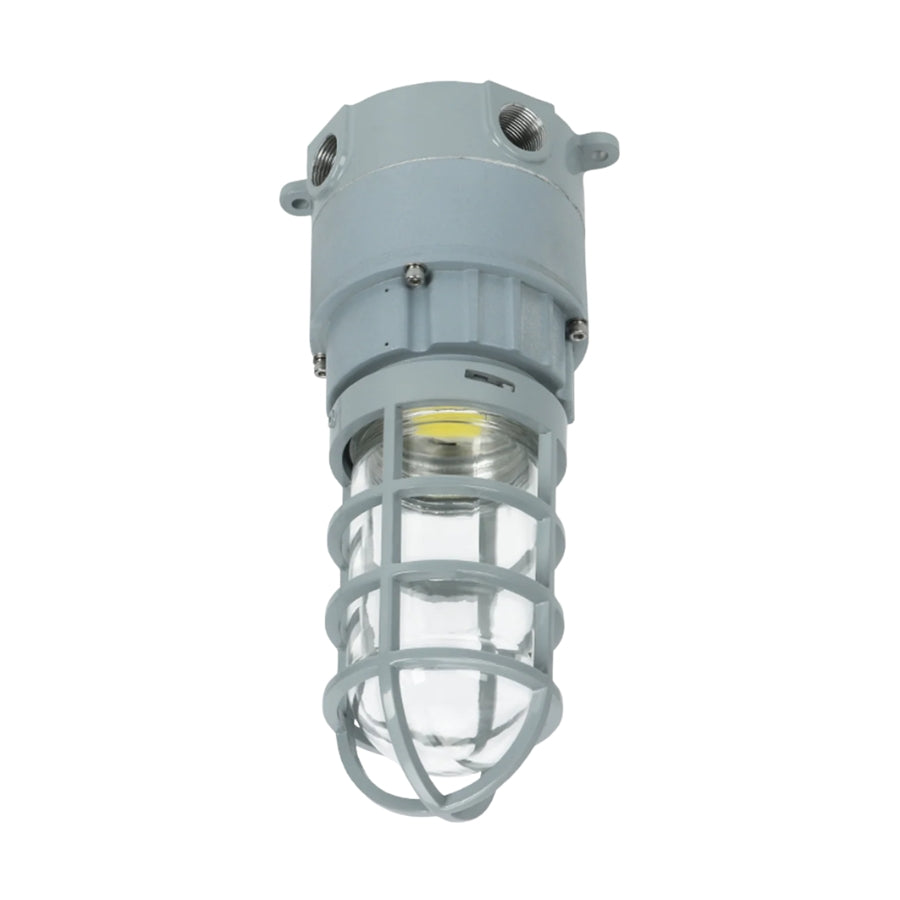

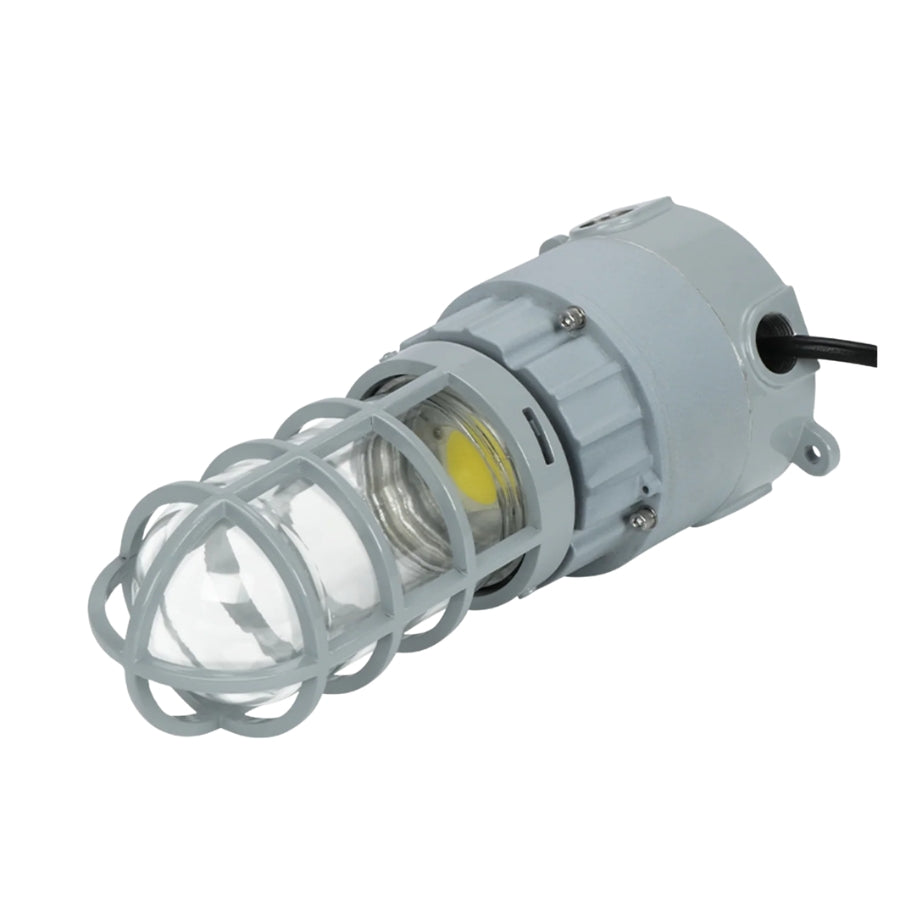

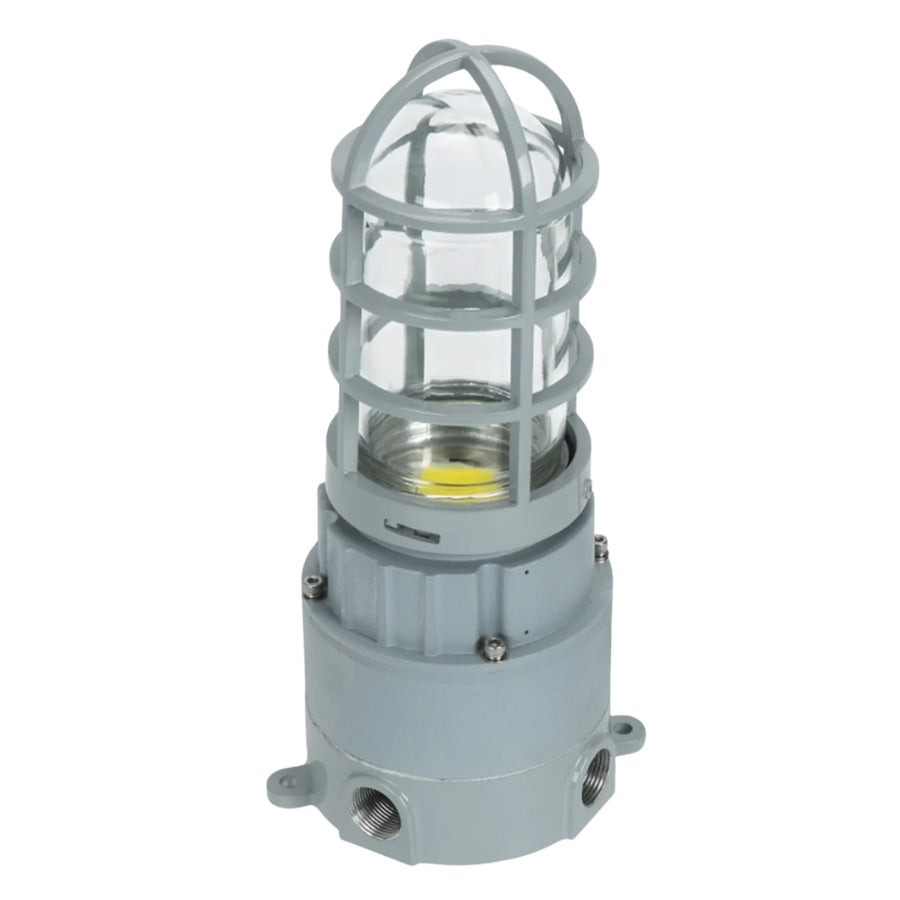

27W LED Explosion-Proof Jelly Jar Light, Class I Div 2 Hazardous Location, 2,700 Lumens, 5000K, 120-277V AC, 0-10V Dimmable, Industrial Cage Fixture, Surface Mount

Product Overview

The 27W Hazardous Location LED Light is a compact, durable lighting solution for industrial, marine, and hazardous environments where reliable illumination is essential. Producing 2,700 lumens at 100 lm/W, it provides bright, focused lighting while using significantly less power than traditional 50–100W metal halide or HPS fixtures.

Built with a copper-free aluminum housing for excellent corrosion resistance and heat dissipation, this fixture is designed to perform in environments exposed to moisture, dust, dirt, vibration, wind, water, snow, and high ambient temperatures.

The tempered glass diffuser provides strong resistance to impact and thermal shock, while the included metal guard adds another layer of protection. Its compact design makes it particularly useful for spot lighting, walkways, mines, breweries, processing areas, and other space-constrained applications.

With 120–277V AC input, a 97° beam angle, IP66 protection, IK08 impact resistance, and multiple mounting options, it provides a flexible lighting solution for demanding installations.

Key Features

• 2,700 lumens of bright illumination

• 100 lm/W efficiency

• 27W rated power

• 5000K color temperature

• 97° beam angle

• 120–277V AC input

• CRI >70

• Optional 0–10V dimming

• Copper-free aluminum housing

• Tempered glass diffuser

• Protective metal guard included

• IP66 protection

• IK08 impact resistance

• Corrosion-resistant construction

• Designed for hazardous and marine environments

• Multiple mounting options

• Four side-wall cable entries

• 5-year standard warranty

Technical Specifications

Built for Harsh & Hazardous Environments

This compact LED luminaire is designed for demanding locations where standard commercial lighting may not provide the required level of protection and durability.

It is specified for Class I Division 2 Groups A, B, C & D, as well as applicable Class II, Class III, Zone 2, and Zone 20/21/22 environments. The fixture is also specified for wet and marine applications, including UL 1598 and UL 1598A, along with UL 8750, UL 924, ABS, and CSA requirements listed by the manufacturer.

Its waterproof and dust-resistant design helps minimize internal cleaning and maintenance, making it a practical choice for facilities where access to lighting fixtures can be difficult or costly.

Always verify the required classification and certification for your specific installation before purchasing.

Compact Design for Flexible Lighting

Not every industrial space has room for a large lighting fixture. This compact design makes it an excellent option when dependable illumination is needed without taking up unnecessary space.

The 97° beam angle provides broad, useful coverage for walkways, work areas, processing spaces, and other locations where focused yet distributed illumination is needed.

The fixture can be mounted in several configurations, including:

• Ceiling

• Wall

• Pole

• Pendant

This flexibility allows the same lighting platform to be used across different areas of an industrial facility.

Durable Construction

The housing is manufactured from copper-free aluminum, providing corrosion resistance and effective heat dissipation for demanding environments.

The tempered glass diffuser is designed to withstand impact and thermal shock, while the included metal guard provides additional physical protection.

With an IP66 rating, the fixture is protected against dust and powerful water exposure. The IK08 impact rating further supports reliable performance in industrial environments where equipment may be exposed to physical impacts.

Energy-Efficient Alternative to Traditional Lighting

Using just 27W, this LED fixture produces 2,700 lumens, making it an efficient replacement for approximately 50–100W metal halide or HPS lighting.

For facilities operating lighting for extended periods, upgrading from traditional HID technology can help reduce energy consumption while providing consistent LED illumination.

The optional 0–10V dimming function also provides additional control when full light output is not required.

Ideal Applications

This compact hazardous-location LED fixture is well suited for:

• Power plants

• Heavy industrial facilities

• Storage facilities

• Paper mills

• Wastewater treatment plants

• Loading docks

• Offshore environments

• Chemical processing facilities

• Petrochemical facilities

• Metallurgical facilities

• Coal mines

• Food and beverage processing

• Breweries

• Industrial walkways

• Processing areas

• Industrial warehouses

• Marine environments

• Spotlight applications

Easy Installation & Maintenance

The fixture is designed for straightforward installation with multiple mounting configurations and four side-wall cable entries.

Its waterproof and dust-resistant construction helps prevent the accumulation of contaminants inside the fixture, reducing the need for routine internal cleaning.

For safe installation, disconnect power before installation or maintenance and ensure all wiring and grounding comply with applicable local electrical codes.

Bulk & Project Pricing Available

Need multiple fixtures for a mine, processing facility, warehouse, plant, marine project, or industrial retrofit?

Bulk purchasing and project pricing are available for qualifying orders.

Volume orders are ideal for:

• Industrial lighting projects

• Contractor purchases

• Distributor orders

• Facility-wide upgrades

• New construction

• Hazardous-area lighting replacements

• Multi-location projects

Contact UpgradeToLED for volume pricing, project quantities, and product recommendations.

Frequently Asked Questions

How many lumens does this 27W LED light produce?

The fixture produces 2,700 lumens at an efficiency of 100 lumens per watt.

What traditional light does it replace?

It is designed as an energy-efficient alternative to approximately 50–100W metal halide or HPS lighting.

What color temperature is this fixture?

The standard configuration uses 5000K, providing bright, clear illumination suitable for industrial work areas.

Does this fixture support dimming?

Yes. 0–10V dimming is available as an option.

What voltage does this LED light use?

The fixture operates on 120–277V AC, making it suitable for many commercial and industrial electrical systems.

Is this light suitable for hazardous locations?

Yes. It is specified for a range of hazardous-location applications, including Class I Division 2, Class II, Class III, and applicable Zone 2 and Zone 20/21/22 environments. Always verify the required classification for your specific installation.

Can it be used in marine environments?

Yes. The fixture is designed for marine applications and is specified for UL 1598A Marine Outside Type applications.

Is the fixture waterproof?

The fixture carries an IP66 rating, providing protection against dust and powerful water exposure.

What is the operating temperature range?

The fixture is rated for temperatures from -40°C to +50°C.

What mounting options are available?

It can be installed using ceiling, wall, pole, or pendant mounting, depending on the selected configuration.

Does it have impact protection?

Yes. The fixture has an IK08 impact rating and includes a protective metal guard.

Do you offer bulk pricing?

Yes. Bulk and project pricing is available for qualifying orders. Contact us for volume pricing and assistance with larger projects.

Upgrade Your Industrial Lighting

When space is limited but reliable illumination is essential, this compact 27W LED fixture delivers a strong combination of 2,700 lumens, 100 lm/W efficiency, rugged construction, IP66 protection, and flexible mounting.

It is built for demanding industrial, marine, and hazardous environments while providing an efficient alternative to traditional HID lighting.

Need multiple fixtures? Contact UpgradeToLED for bulk pricing and project assistance.
