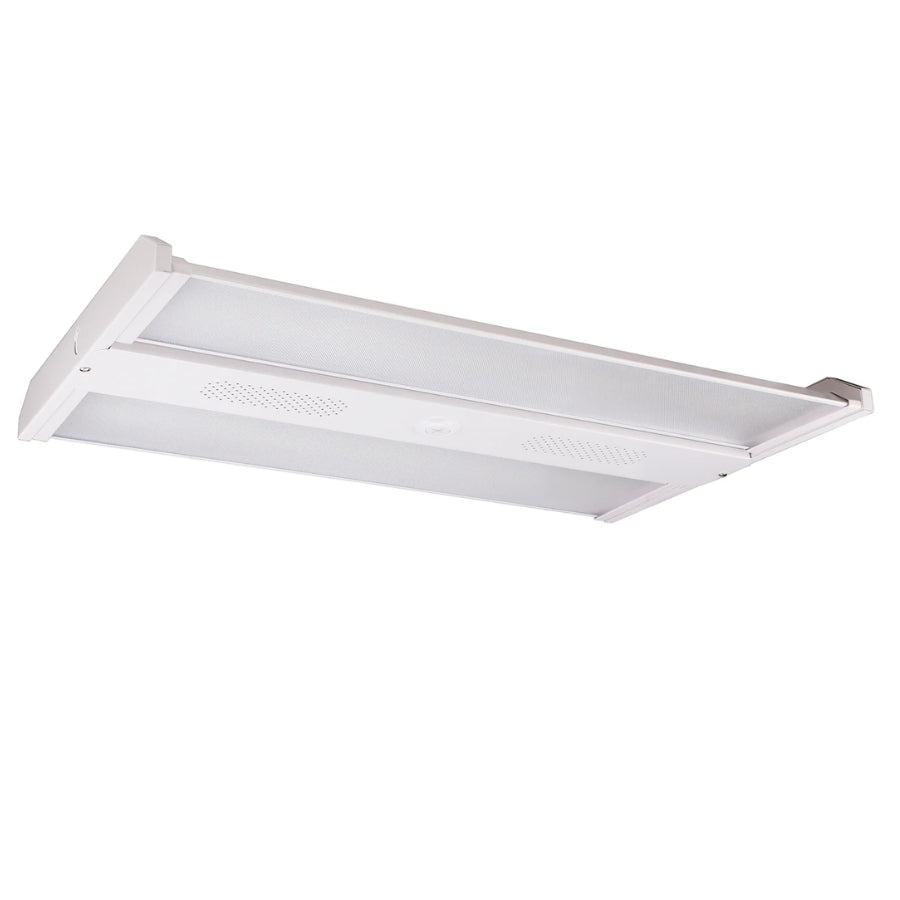

2ft LED Linear High Bay Light, 220W, 30,800 Lumens, 5000K, 140 lm/W, Rotatable LED Modules up to 135°, 0-10V Dimmable, 277-480V, UL Driver, Philips Chips, Receptacle Sensor, 700W Metal Halide Equivalent
- $172.60
$189.86- $172.60
- Unit price
- per
Bulk Discounts on orders over $500 — Learn More
Bulk Discounts
×Automatic discounts apply at checkout on orders over $500.
SPENDSAVE
$500 – $1,9995%
$2,000 – $3,9996%
$4,000 – $5,9997%
$6,000 – $7,9998%
$8,000 – $9,9999%
$10,000 – $19,99910%
$20,000 – $49,99912%
$50,000+15%
For assistance, complete the form below or give us a call at (706) 380-2070
Estimated Shipping Widget will be displayed here!
Get your quote within 1 hour!
Free shipping on orders over $99
Ships within 1 business day
Product Overview
The UpgradeToLED 220W LED Linear High Bay Light is engineered to deliver powerful, energy-efficient illumination for warehouses, manufacturing plants, distribution centers, retail facilities, and other high-ceiling commercial applications. Producing 30,800 lumens with an efficacy of 140 lumens per watt, this fixture provides bright, uniform lighting while replacing traditional 500W–700W Metal Halide (MH) and High Pressure Sodium (HPS) fixtures.
Designed for 277-480V AC high-voltage commercial electrical systems, the fixture features a premium 0-10V dimmable LED driver for smooth lighting control and additional energy savings. The integrated plug-and-play motion sensor receptacle supports optional microwave or PIR occupancy sensors, while the LED modules rotate up to 135° to direct light where it is needed most.
Built with a heavy-duty die-cast aluminum housing, white powder-coated finish, and frosted polycarbonate lens, this fixture delivers excellent heat dissipation, corrosion resistance, and a rated lifespan of 50,000 hours. Flexible installation options include suspension, surface, and 3/4" NPT pendant mounting. The fixture is certified to UL, cUL, DLC Premium, and FCC standards.
Key Features
- 220W LED Linear High Bay
- 30,800 Lumens Output
- 140 Lumens Per Watt
- 5000K Daylight White
- 277-480V High Voltage
- Premium Lumileds LED Chips
- 0-10V Dimmable Driver
- LED Modules Rotate Up to 135°
- Plug & Play Motion Sensor Receptacle
- Optional PIR Sensor Compatible
- Optional Microwave Sensor Compatible
- Heavy Die-Cast Aluminum Housing
- White Powder-Coated Finish
- Frosted Polycarbonate Lens
- 90° Beam Angle
- UL Listed
- cUL Listed
- DLC Premium Certified
- FCC Certified
- 50,000-Hour Rated Life
- 5-Year Limited Warranty
Product Attributes
| General Specifications | |
|---|---|
| Brand | UpgradeToLED |
| Product Type | LED Linear High Bay Light |
| Model | AST-PHB08B-220WBMP3H1 |
| Wattage | 220W |
| Lumen Output | 30,800 Lumens |
| Luminous Efficiency | 140 LM/W |
| Color Temperature | 5000K Daylight White |
| CRI | >80 |
| Input Voltage | 277-480V AC |
| Input Current | 0.79A @277V / 0.45A @480V |
| Driver | FD-240V-050B |
| LED Chips | Premium Lumileds LEDs |
| Construction & Installation | |
|---|---|
| Dimming | 0-10V Standard |
| Beam Angle | 90° |
| Adjustable Modules | Up to 135° Rotation |
| Motion Sensor | Plug & Play Sensor Receptacle |
| Motion Detection Distance | 40-50 Feet |
| Housing Material | Heavy Die-Cast Aluminum |
| Finish | White Powder-Coated |
| Lens | Frosted Polycarbonate |
| Operating Temperature | -30°C to +50°C |
| Junction Temperature | <75°C |
| Fixture Efficiency | ≥90% |
| Mounting Options | Suspension, Surface, 3/4" NPT Pendant |
| Certifications | UL, cUL, DLC Premium, FCC |
| HID Replacement | 500W-700W MH/HPS |
| Lifetime | 50,000 Hours |
| Warranty | 5-Year Limited Warranty |
