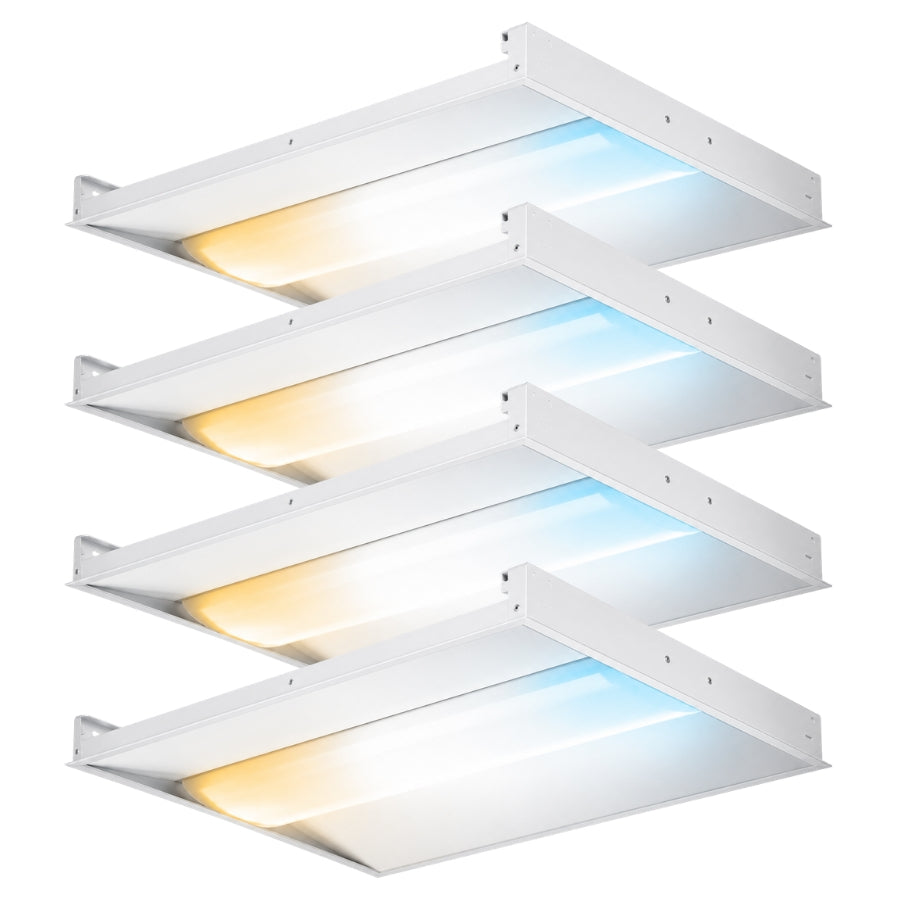

2x2 LED Troffer Light Fixture – 20/25/30/35/40W Selectable Wattage, 5CCT Selectable 3500K/4000K/5000K/5700K/6500K, Up to 5,200 Lumens, 130 lm/W, 0-10V Dimmable, 120-277V, ETL Listed, DLC, Commercial Recessed T-Grid Ceiling Light

Product Overview

The UpgradeToLED 2x2 LED Troffer Light Fixture is a commercial-grade backlit troffer designed for offices, schools, retail spaces, restaurants, meeting rooms, and other indoor applications. The LS-TF22S40W5CCT combines selectable wattage, selectable color temperature, high-efficiency LED technology, and 0-10V dimming in one flexible fixture.

Choose from 20W, 25W, 30W, 35W, or 40W power settings and select 3500K, 4000K, 5000K, 5700K, or 6500K to match project lighting requirements. At 40W, the fixture produces up to 5,200 lumens with up to 130 lm/W efficacy.

Designed for commercial contractors and electrical professionals, this 2x2 LED troffer operates on 120-277V AC, supports 0-10V dimming, and is compatible with standard T-grid ceiling systems. Recessed, surface, and suspended mounting options provide installation flexibility for new construction, renovation, and retrofit projects.

The fixture uses a high-transmission polycarbonate optical cover and aluminum construction for effective thermal management. Optional plug-and-play occupancy/motion sensors and emergency battery backup are available for qualifying projects.

Key Features

• 2x2 commercial LED troffer fixture

• Selectable wattage: 20W / 25W / 30W / 35W / 40W

• Selectable CCT: 3500K / 4000K / 5000K / 5700K / 6500K

• Up to 5,200 lumens

• Up to 130 lm/W

• 120-277V AC input

• 0-10V dimmable

• Approximately 110° beam angle

• High-transmission polycarbonate lens

• Aluminum heat-sink construction

• 50,000-hour rated life

• 5-year limited warranty

• ETL / cETL / DLC listed

• Standard T-grid ceiling compatible

• Recessed, surface, and suspended mounting

• Optional plug-and-play occupancy/motion sensor

• Optional emergency battery backup

Technical Specifications

Bulk Buying & Contractor Pricing

Need lighting for a commercial project, renovation, retrofit, or multi-location installation?

UpgradeToLED offers bulk purchasing options for contractors, electrical professionals, distributors, facility managers, and commercial buyers.

Contact us for:

• Contractor bulk pricing

• Volume discounts

• Large project quantities

• Commercial lighting quotations

• Multi-fixture orders

• Project-specific pricing

• Wholesale purchasing options

• Repeat-order pricing

• Job-site and project requirements

Need 50, 100, 500+ fixtures? Contact UpgradeToLED for a project quote.

Recommended Applications

• Offices

• Schools and classrooms

• Meeting rooms

• Retail stores

• Restaurants

• Commercial buildings

• Healthcare facilities

• Corridors

• Institutional buildings

• General indoor commercial spaces

Installation & Mounting

The 2x2 LED troffer is designed for standard T-grid ceiling systems and can be configured for recessed installation. Surface and suspended mounting options are also available depending on the project requirements.

The fixture's commercial voltage range and 0-10V dimming capability make it suitable for integration into many commercial lighting-control systems.

Frequently Asked Questions

1. What wattages are available for this 2x2 LED troffer?

The fixture offers five selectable wattage settings: 20W, 25W, 30W, 35W, and 40W.

2. What color temperatures are available?

The 5CCT selectable design provides 3500K, 4000K, 5000K, 5700K, and 6500K options.

3. How many lumens does the 2x2 troffer produce?

The fixture produces up to 5,200 lumens at 40W. Lower wattage settings provide proportionally lower output.

4. Is the fixture 0-10V dimmable?

Yes. The fixture uses a 0-10V dimmable driver for compatibility with suitable commercial lighting-control systems.

5. What voltage does this LED troffer use?

The fixture is designed for 120-277V AC commercial electrical systems.

6. Can this fixture be used with a standard drop ceiling?

Yes. The 2x2 troffer is designed for standard T-grid ceiling systems and can also be configured for other mounting methods.

7. Are occupancy sensors available?

Yes. A plug-and-play occupancy/motion sensor is available as an optional accessory.

8. Is this LED troffer suitable for bulk commercial projects?

Yes. UpgradeToLED offers bulk purchasing and project pricing for contractors, commercial buyers, facility managers, and larger installations. Contact us with your required quantity for a project quote.
