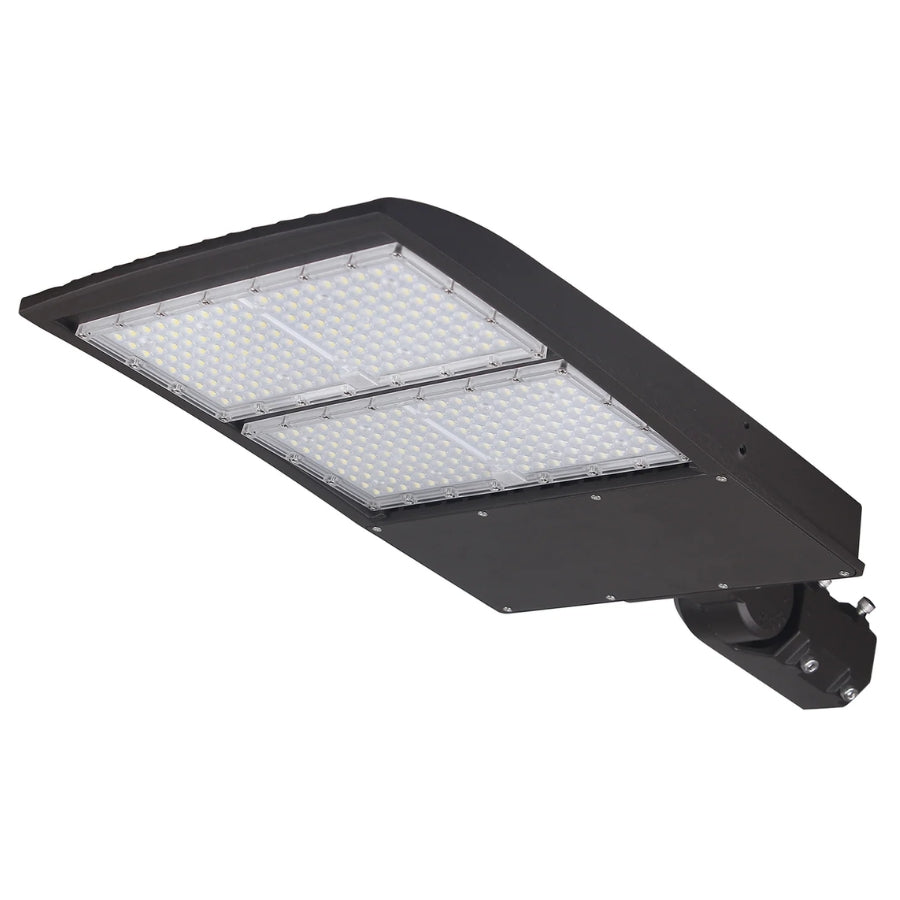

300W LED Parking Lot Light with Photocell, 42,000 Lumens, 5000K Daylight White, Type III Distribution, 120-277V, 1,000W Metal Halide Equivalent, 0-10V Dimmable, IP65 Waterproof, Bronze Housing, UL & DLC Certified, 5-Year Warranty

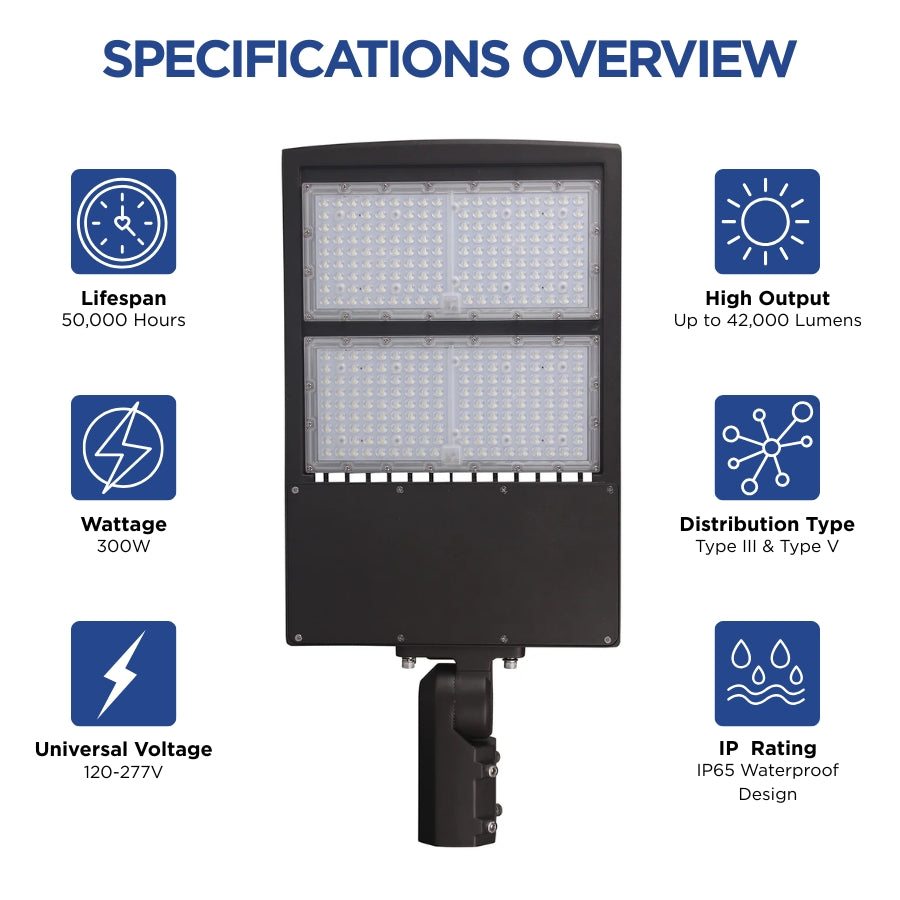

PRODUCT SPECIFICATIONS

DURABLE CONSTRUCTION

MEASUREMENTS

FEATURES / ACCESSORIES

PRODUCT OVERVIEW

The UpgradeToLED 300W LED Parking Lot Light is a high-performance outdoor lighting solution engineered for parking lots, commercial properties, roadways, industrial facilities, campuses, warehouses, distribution centers, and security applications. Delivering 42,000 lumens of powerful 5000K daylight white illumination, this fixture provides excellent visibility while dramatically reducing energy consumption compared to traditional 1,000W metal halide systems.

Featuring a built-in photocell and Type III optical distribution, this LED shoebox light automatically operates from dusk to dawn while delivering wide forward light projection ideal for parking lot perimeters, roadways, and pathways. The rugged bronze housing and DLC Premium certification make it a dependable solution for demanding commercial environments.

CORE PERFORMANCE AND OUTPUT

This 300W LED parking lot fixture delivers 42,000 lumens of high-output illumination while achieving approximately 140 lumens per watt. The advanced LED system provides bright, uniform coverage that improves safety, visibility, and security across large outdoor spaces.

The Type III optical distribution pattern projects light forward and outward, making it ideal for perimeter-mounted poles, parking lot edges, roadways, walkways, and commercial site lighting.

Operating on universal 120-277V input voltage, the fixture integrates seamlessly into most commercial electrical systems.

ADJUSTABILITY AND CONTROL OPTIONS

This fixture is designed with modern lighting controls that improve energy efficiency and simplify operation.

Control features include:

• Built-In Photocell
• Automatic Dusk-to-Dawn Operation
• 0-10V Dimming
• Type III Optical Distribution
• Universal 120-277V Input

The integrated photocell automatically activates the fixture at sunset and turns it off at sunrise, helping reduce unnecessary energy consumption.

LONGEVITY AND RELIABILITY

Rated for 50,000 hours of operation, this LED parking lot light is designed to provide years of dependable performance with minimal maintenance requirements.

The advanced heat sink design effectively dissipates heat, preserving lumen output and extending component lifespan. Compared to traditional HID systems, this LED fixture eliminates frequent lamp and ballast replacements while reducing maintenance costs.

Its premium-grade driver and commercial-quality LED components ensure reliable operation in demanding outdoor environments.

BUILD QUALITY AND PHYSICAL CHARACTERISTICS

Constructed from heavy-duty die-cast aluminum, this fixture offers exceptional structural durability and thermal management. The impact-resistant polycarbonate lens protects internal components while maximizing optical efficiency.

The bronze powder-coated finish provides enhanced corrosion resistance and a professional appearance suitable for commercial properties, municipalities, industrial facilities, and campuses.

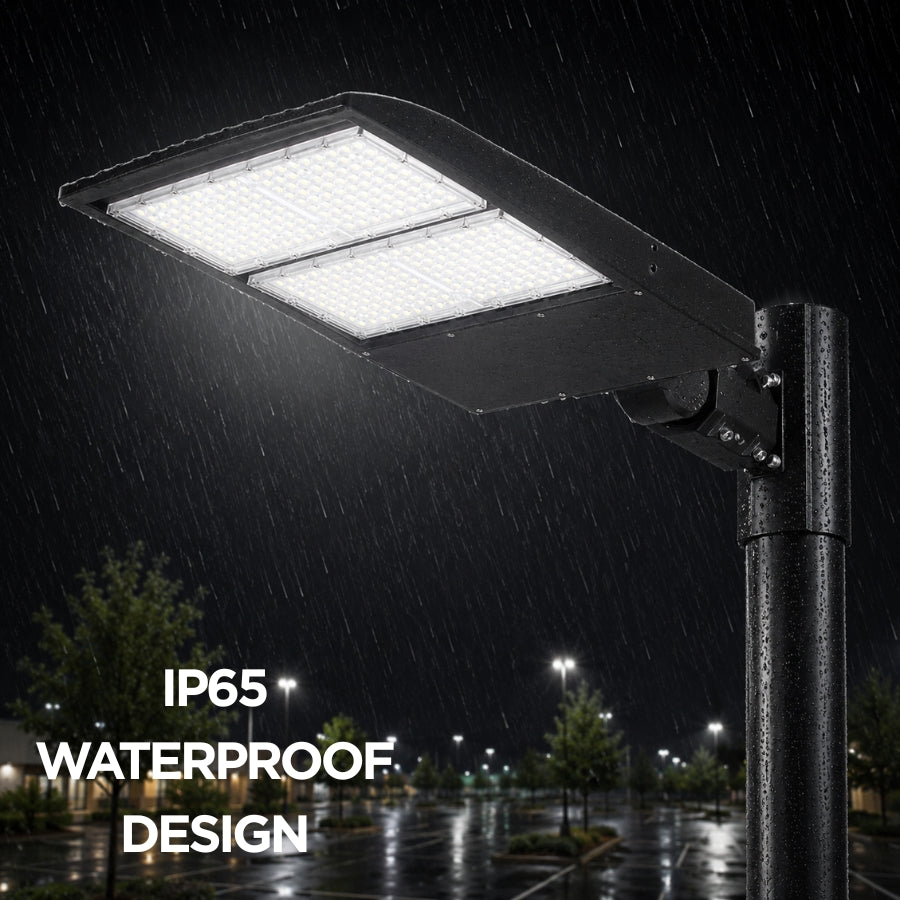

With an IP65 waterproof rating, the fixture is protected against dust, rain, snow, and harsh outdoor weather conditions.

WHERE THIS PRODUCT FITS BEST

This LED parking lot light is ideal for:

• Parking Lot Lighting
• Commercial Properties
• Warehouses
• Distribution Centers
• Logistics Facilities
• Manufacturing Plants
• Business Parks
• School Campuses
• Airport Facilities
• Auto Dealerships
• Security Lighting
• Municipal Facilities
• Roadway Lighting
• Pathway Lighting
• Perimeter Lighting

Its Type III distribution is especially effective for perimeter-mounted lighting applications where broad forward light projection is required.

INSTALLATION AND LONG-TERM USE

The included slip fitter mount allows fast installation on standard outdoor lighting poles and provides adjustable aiming capabilities for optimized light distribution.

The built-in photocell reduces operating costs by automatically controlling the fixture based on ambient light levels.

Combined with the maintenance-free LED system and durable housing construction, this fixture delivers exceptional long-term value and reliability.

HOW THIS FIXTURE IS COMMONLY USED

This fixture is commonly mounted between 20 and 40 feet depending on the application and required illumination levels.

Typical installations include:

• Retail Parking Lots
• Commercial Campuses
• Shopping Centers
• Industrial Facilities
• Distribution Warehouses
• Logistics Yards
• Transportation Facilities
• Security Perimeters
• Municipal Parking Areas
• Outdoor Storage Facilities

The 42,000-lumen output provides broad coverage while maintaining excellent visibility and uniformity.

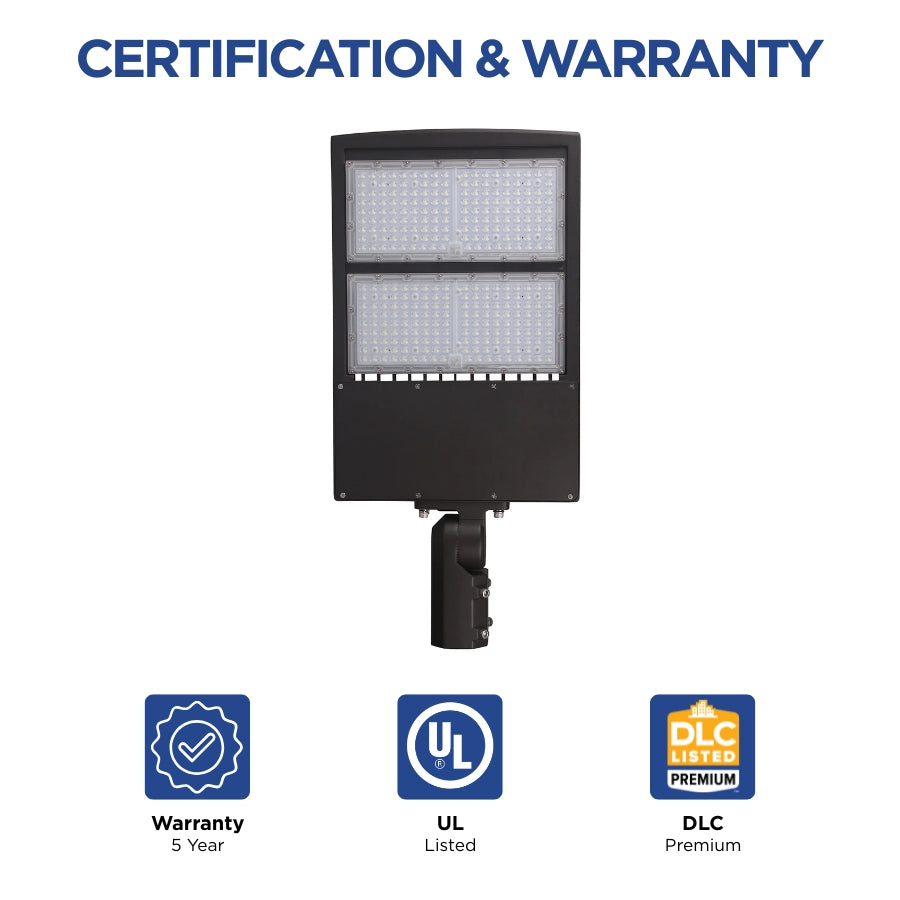

SAFETY, CERTIFICATIONS, AND WARRANTY

This fixture is designed to meet demanding commercial lighting standards and includes:

• UL Listed
• DLC Premium Certified
• Rebate Eligible
• IP65 Waterproof
• Built-In Photocell
• 0-10V Dimming
• 120-277V Operation
• 5-Year Warranty

These certifications help ensure safety, reliability, energy efficiency, and eligibility for utility rebate programs.

FREQUENTLY ASKED QUESTIONS

Q: What metal halide fixture does this light replace?

A: This 300W LED parking lot light is designed to replace traditional 1,000W metal halide fixtures.

Q: Does the fixture include a photocell?

A: Yes. The fixture includes a built-in photocell for automatic dusk-to-dawn operation.

Q: Is the fixture dimmable?

A: Yes. The fixture supports standard 0-10V dimming controls.

Q: What color temperature does this fixture provide?

A: This model provides 5000K Daylight White illumination for maximum visibility and security.

Q: What are the fixture dimensions?

A: The fixture measures 28.6" high × 13.3" wide × 3.81" deep and weighs approximately 18 lbs.

Q: What beam distribution is included?

A: This fixture features Type III optical distribution for perimeter, roadway, and parking lot lighting applications.

APPLICATION QUESTIONS AND CLARIFICATION

Q: Is 5000K suitable for parking lot lighting?

A: Yes. 5000K daylight white provides maximum visibility, improved security, and enhanced color recognition for outdoor commercial environments.

Q: Can this fixture be used for warehouse exterior lighting?

A: Yes. The high lumen output, IP65 protection, and photocell operation make it ideal for warehouse perimeters, loading docks, and outdoor storage areas.

Q: Can this fixture operate in harsh weather conditions?

A: Yes. The IP65-rated housing protects against rain, dust, snow, and outdoor environmental exposure.

Q: Why choose Type III distribution?

A: Type III optics provide wide forward light projection, making them ideal for parking lot perimeters, roadways, pathways, and commercial property lighting.

Q: Is this fixture rebate eligible?

A: Yes. DLC Premium certification may qualify the fixture for utility rebate programs depending on local utility requirements.
