300W LED Parking Lot Light with Photocell, 42,000 Lumens, 5000K Daylight White, Type III/Type V Distribution, 120-277V, 1,000W Metal Halide Equivalent, 0-10V Dimmable, IP65 Waterproof, White Housing, UL & DLC Certified, 5-Year Warranty

PRODUCT SPECIFICATIONS

DURABLE CONSTRUCTION

MEASUREMENTS

FEATURES / ACCESSORIES

PRODUCT OVERVIEW

The UpgradeToLED 300W LED Parking Lot Light is a commercial-grade outdoor lighting solution engineered for parking lots, roadways, warehouses, campuses, industrial facilities, distribution centers, and security lighting applications. Delivering an impressive 42,000 lumens of bright 5000K daylight illumination, this fixture provides excellent visibility while dramatically reducing energy consumption compared to traditional 1,000W metal halide fixtures.

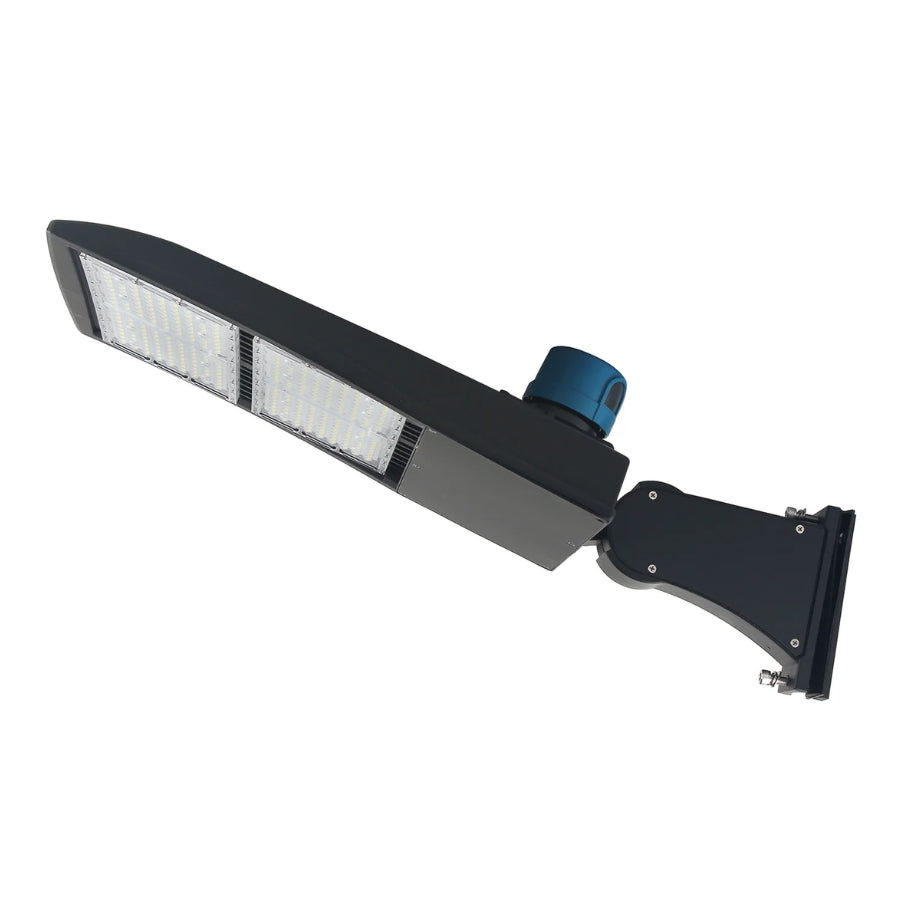

Featuring an integrated photocell, this fixture automatically turns on at dusk and off at dawn, maximizing energy savings and reducing operating costs. Available with either Type III or Type V optical distribution, the fixture can be optimized for perimeter lighting or central-area coverage depending on site requirements.

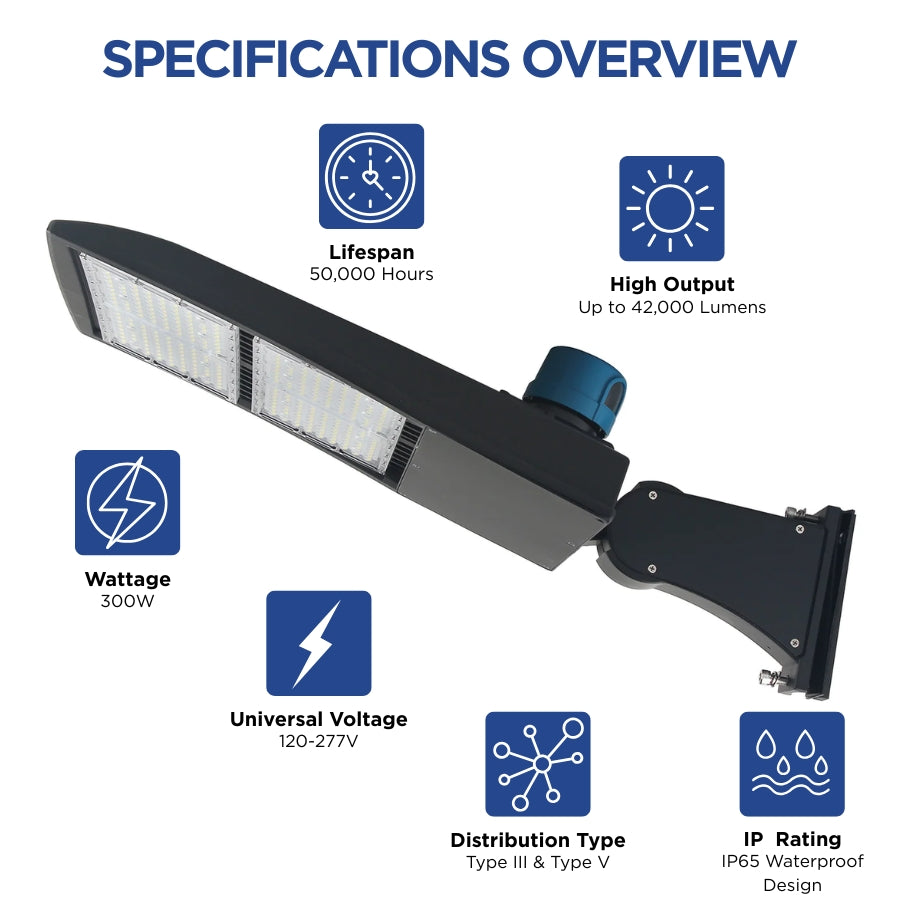

CORE PERFORMANCE AND OUTPUT

This 300W LED parking lot light produces 42,000 lumens with an efficacy of approximately 140 lumens per watt. The high-output LED system delivers bright, uniform illumination while significantly lowering maintenance and utility costs compared to traditional HID fixtures.

The fixture's Type III and Type V optics provide flexibility for a wide range of outdoor lighting applications. Type III optics are ideal for perimeter-mounted poles and roadway lighting, while Type V optics provide symmetrical distribution for center-of-lot installations.

ADJUSTABILITY AND CONTROL OPTIONS

The fixture incorporates advanced lighting controls for improved efficiency and operational flexibility.

Key control features include:

• Built-In Photocell
• Automatic Dusk-to-Dawn Operation
• 0-10V Dimming
• Type III Distribution Option
• Type V Distribution Option
• Universal 120-277V Input

These features allow users to optimize energy usage while maintaining ideal illumination levels throughout the property.

LONGEVITY AND RELIABILITY

Built for long-term commercial operation, this fixture is rated for 50,000 hours of service life. The advanced thermal management system effectively dissipates heat, helping maintain consistent lumen output and extending component longevity.

Compared to metal halide fixtures, this LED solution significantly reduces maintenance costs and eliminates frequent lamp and ballast replacements.

BUILD QUALITY AND PHYSICAL CHARACTERISTICS

The fixture utilizes a heavy-duty die-cast aluminum housing designed to withstand harsh outdoor environments while providing excellent heat dissipation.

Its impact-resistant polycarbonate lens protects internal LED components while maximizing optical performance. The durable white powder-coated finish resists corrosion and provides a clean architectural appearance suitable for commercial and municipal projects.

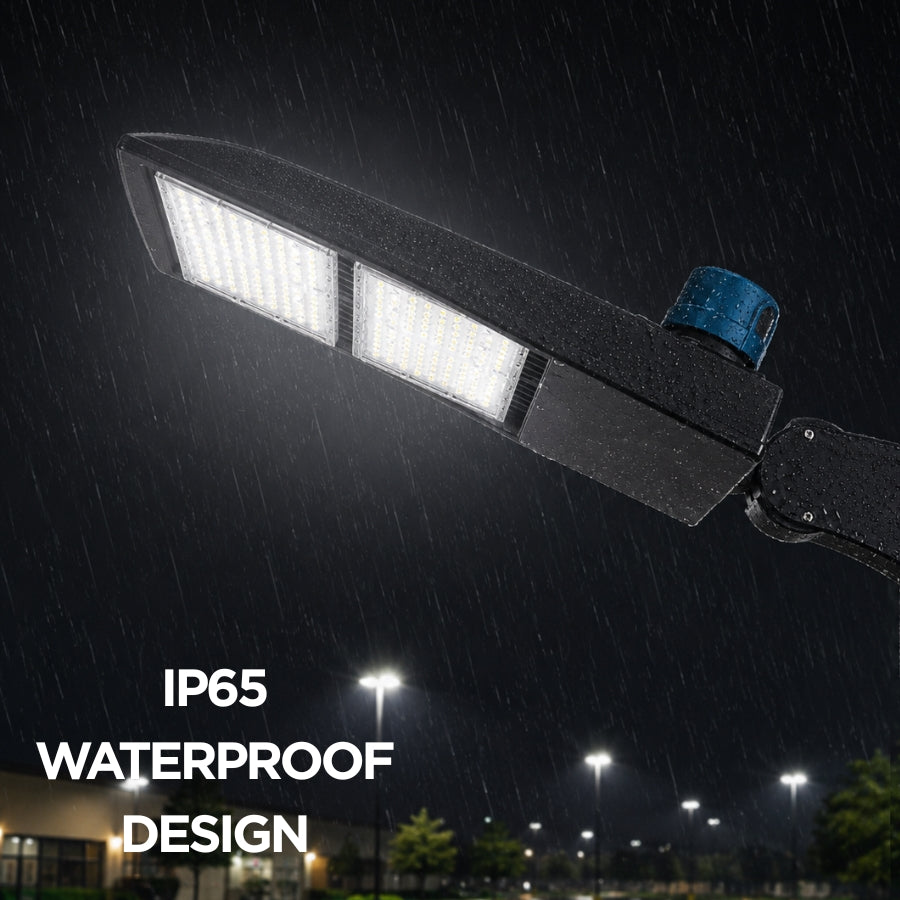

With an IP65 waterproof rating, the fixture is protected against rain, dust, snow, and other environmental contaminants.

WHERE THIS PRODUCT FITS BEST

This LED parking lot light is ideal for:

• Parking Lot Lighting
• Commercial Properties
• Shopping Centers
• Warehouses
• Distribution Centers
• Logistics Facilities
• Manufacturing Plants
• School Campuses
• Airport Facilities
• Auto Dealerships
• Public Parks
• Security Lighting
• Tennis Courts
• Pickleball Courts
• Municipal Facilities

Type III optics work best for perimeter poles, while Type V optics are ideal for center-mounted poles and open-area lighting.

INSTALLATION AND LONG-TERM USE

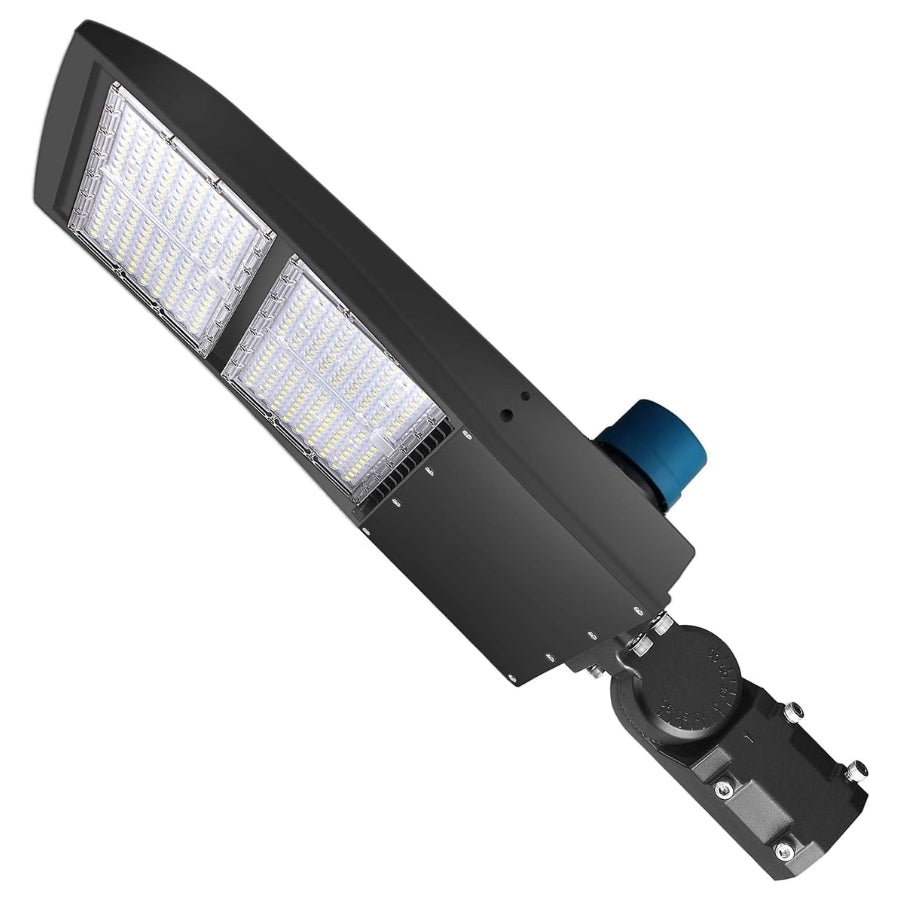

The included slip fitter mount provides fast installation on standard outdoor lighting poles and allows angle adjustment for optimal light distribution.

The integrated photocell automatically controls operation based on ambient light levels, reducing energy waste and eliminating manual switching requirements.

Its rugged construction and maintenance-free LED system make it an excellent long-term solution for commercial and industrial lighting projects.

HOW THIS FIXTURE IS COMMONLY USED

This fixture is commonly installed at mounting heights between 20 and 40 feet depending on the site layout and required light levels.

Typical applications include:

• Retail Parking Lots
• Business Parks
• Commercial Campuses
• Industrial Facilities
• Logistics Yards
• Distribution Warehouses
• Transportation Centers
• School Parking Areas
• Recreation Facilities
• Security Perimeters

The 42,000-lumen output provides broad coverage and excellent visibility across large outdoor spaces.

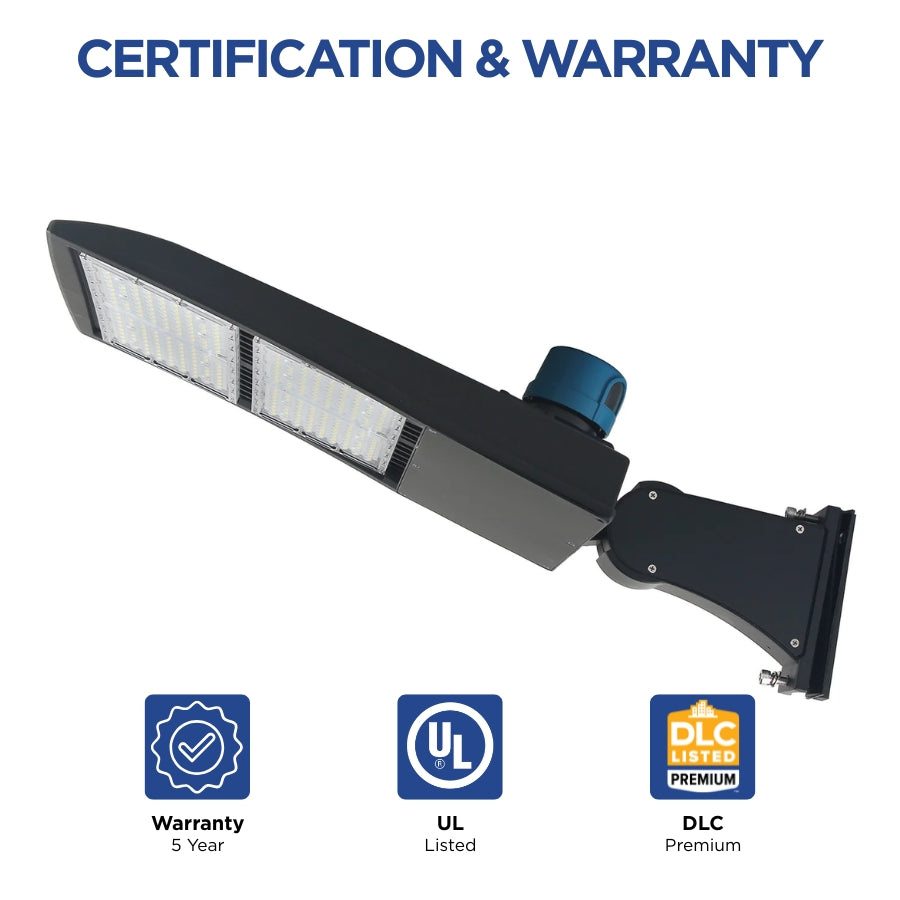

SAFETY, CERTIFICATIONS, AND WARRANTY

This fixture is designed to meet demanding commercial lighting standards and includes:

• UL Listed
• DLC Premium Certified
• Rebate Eligible
• IP65 Waterproof
• Built-In Photocell
• 0-10V Dimming
• 120-277V Operation
• 5-Year Warranty

These certifications ensure safety, reliability, energy efficiency, and eligibility for many utility rebate programs.

FREQUENTLY ASKED QUESTIONS

Q: What metal halide fixture does this light replace?

A: This 300W LED parking lot light is designed to replace traditional 1,000W metal halide fixtures.

Q: Does this fixture include a photocell?

A: Yes. The fixture includes a built-in photocell for automatic dusk-to-dawn operation.

Q: Is the fixture dimmable?

A: Yes. It supports standard 0-10V dimming controls.

Q: What color temperature does this fixture provide?

A: The fixture delivers 5000K Daylight White illumination.

Q: Can I choose different light distributions?

A: Yes. The fixture is available with either Type III or Type V optical distribution.

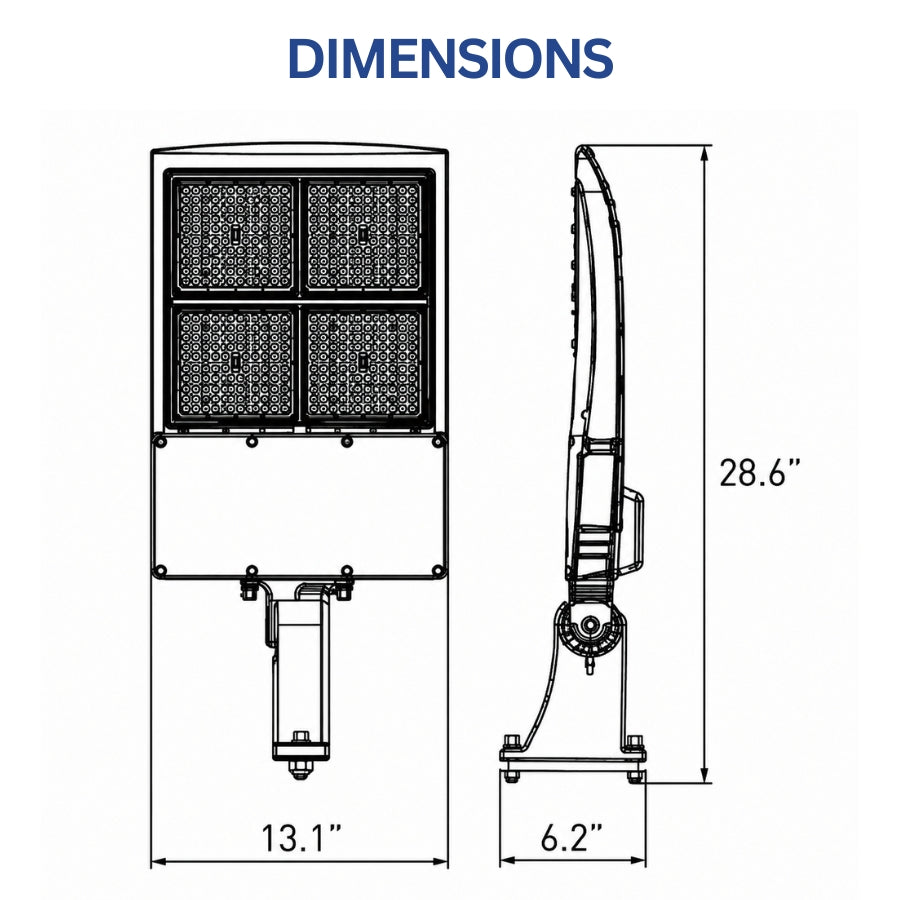

Q: What are the fixture dimensions?

A: The fixture measures 28.6" high × 13.1" wide × 6.2" deep and weighs approximately 18 lbs.

APPLICATION QUESTIONS AND CLARIFICATION

Q: What is the difference between Type III and Type V distribution?

A: Type III optics are ideal for perimeter-mounted poles and roadway lighting, while Type V optics provide symmetrical coverage for center-of-lot installations.

Q: Is this fixture suitable for warehouse exterior lighting?

A: Yes. The high lumen output, IP65 protection, and photocell operation make it ideal for warehouse perimeters and loading areas.

Q: Can this light be used in harsh weather conditions?

A: Yes. The IP65-rated housing protects against rain, dust, and outdoor environmental conditions.

Q: Why choose a white housing?

A: White housing provides a modern architectural appearance and blends well with commercial buildings, campuses, healthcare facilities, and municipal properties.

Q: Is this fixture rebate eligible?

A: Yes. DLC Premium certification may qualify the fixture for utility rebate programs depending on local utility requirements.
