3W LED Emergency Ceiling Light - 350+ Lumens - 100-347V - UL 924 Listed - 90-Minute Emergency Runtime - Self-Diagnostic - Recessed / Bracket Mount - White - 5000K

UpgradeToLED 3W LED Emergency Ceiling Light provides reliable illumination during power outages with 350+ lumens of emergency light output and a minimum 90-minute battery runtime. The universal 100-347V AC input makes it suitable for a wide range of commercial and institutional electrical applications.

The built-in self-diagnostic (SDT) system automatically performs monthly and annual testing to help verify emergency operation. A maintenance-free rechargeable Li-ion battery fully recharges within approximately 24 hours.

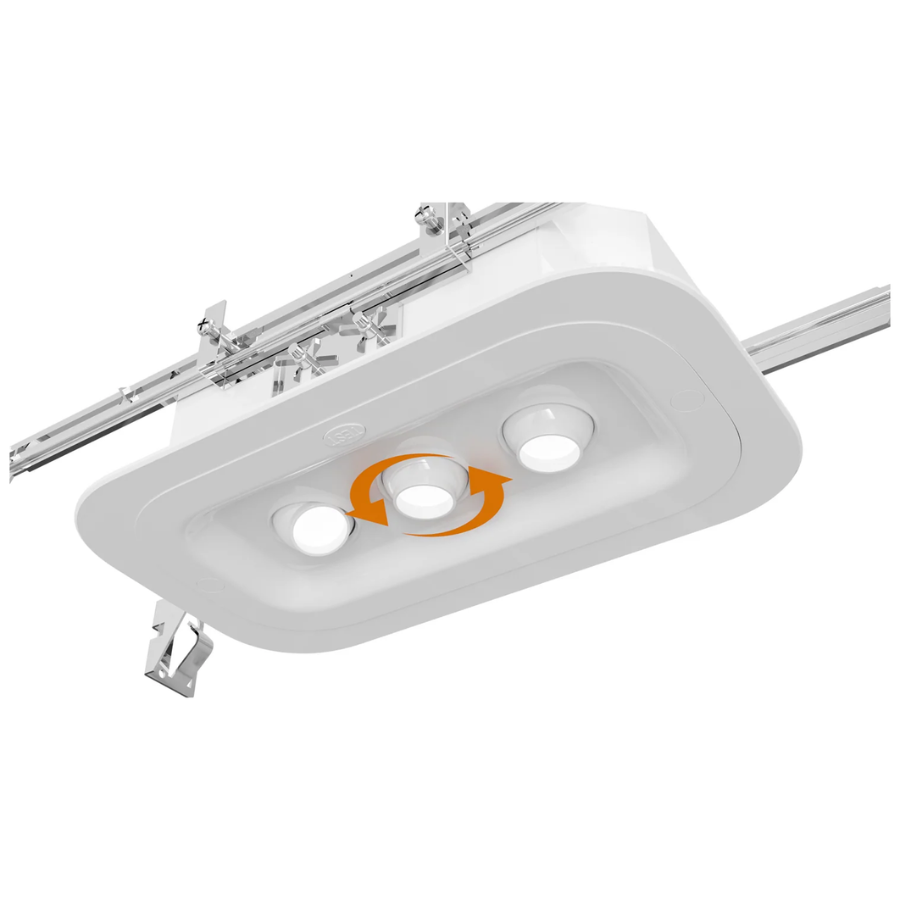

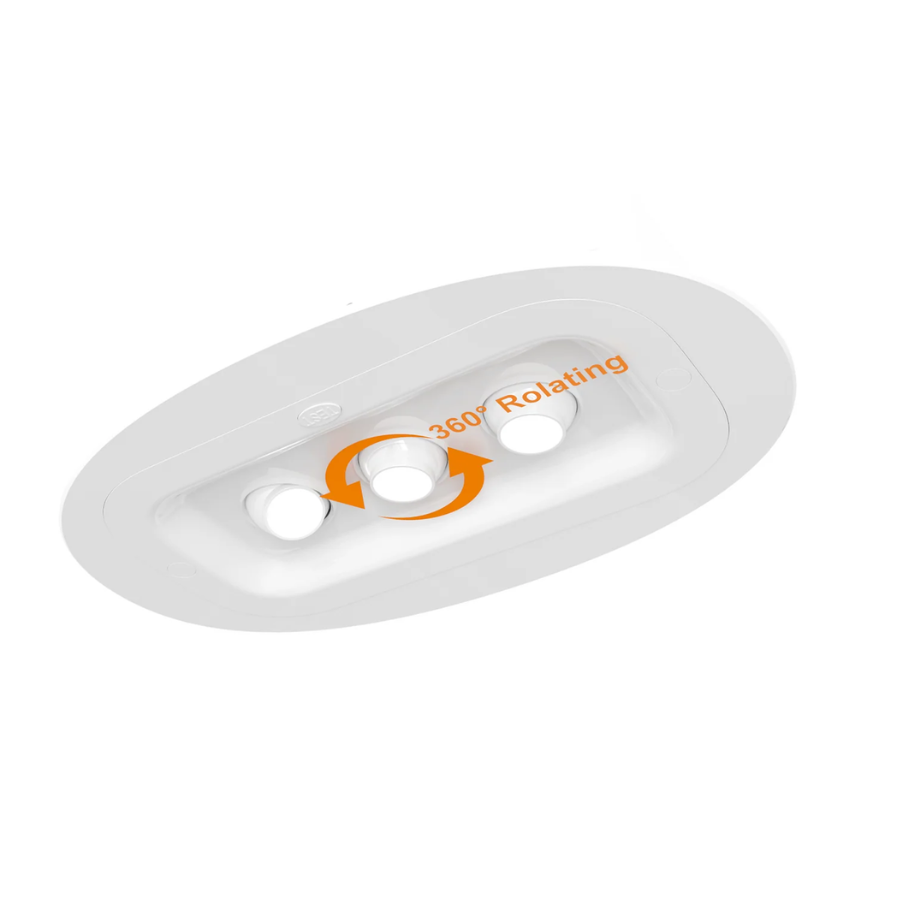

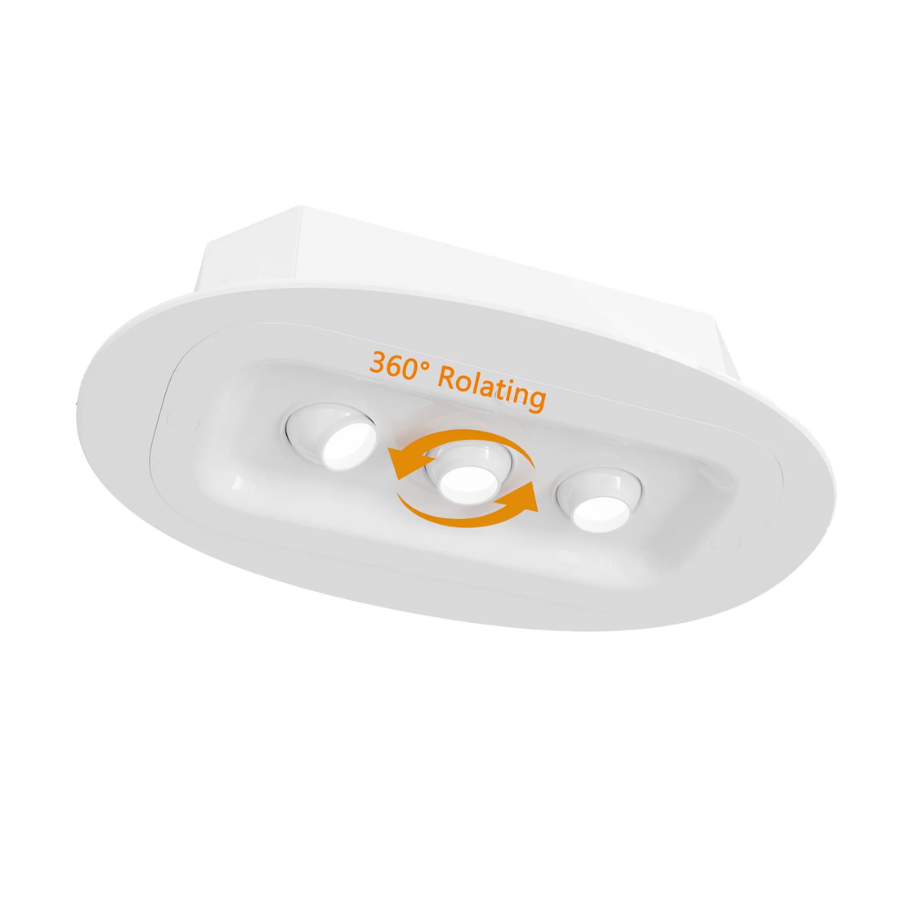

Designed with adjustable LED lamp heads, the fixture provides flexible emergency illumination. Spring mounting supports sheetrock ceilings, while the optional bracket mounting works with drop ceilings and T-bar installations. The durable flame-retardant thermoplastic housing is available in white or black.

Key Features

• 3W LED emergency ceiling light
• 350+ lumens emergency output
• 100-347V universal voltage
• Minimum 90-minute emergency runtime
• UL 924 listed
• UL listed for damp locations
• Self-Diagnostic (SDT) system
• Automatic monthly and annual testing
• Maintenance-free rechargeable Li-ion battery
• Approximately 24-hour recharge time
• Adjustable LED lamp heads
• Spring-mounted installation for sheetrock ceilings
• Bracket-mounted installation for drop ceilings
• Injection-molded flame-retardant thermoplastic housing
• White finish
• Push-to-test switch
• Charge/status indicator
• Optional ambient lighting
• Optional Bluetooth control
• Optional trim plates with light function
• 5-year limited warranty

Product Specifications

Emergency Operation

When normal AC power fails, the emergency driver automatically switches to battery power and keeps the LED lamp heads operating for at least 90 minutes. When power is restored, the fixture returns to normal operation and begins recharging the battery.

Self-Diagnostic Testing

The built-in SDT system automatically monitors the emergency lighting system.

• Monthly: 30-second discharge test
• Annually: 90-minute discharge test
• Monitors battery condition and LED load
• Status indicator identifies charging, testing, full-charge, emergency, and error conditions
• Manual test button included

Installation

The fixture supports flexible ceiling installation with spring or bracket mounting.

Spring Mount: Suitable for sheetrock ceilings.

Bracket Mount: Suitable for drop ceilings and T-bar suspended ceilings.

Supplied bar hangers support ceiling installation where applicable.

Applications

• Offices
• Retail stores
• Warehouses
• Manufacturing facilities
• Schools
• Hospitals
• Healthcare facilities
• Hotels
• Multifamily buildings
• Restaurants
• Parking garages
• Corridors
• Commercial and institutional buildings

Bulk & Contractor Orders

UpgradeToLED offers bulk purchasing options for contractors, electricians, builders, developers, distributors, facility managers, and commercial projects.

Contact UpgradeToLED for bulk pricing and project orders.

Frequently Asked Questions

How long does the emergency light operate during a power outage?
The fixture provides a minimum of 90 minutes of emergency operation.

How many lumens does it produce in emergency mode?
The emergency output is 350+ lumens.

What voltage does it support?
It accepts 100-347V AC.

Does it have a rechargeable battery?
Yes. It uses a maintenance-free rechargeable Li-ion battery.

How long does the battery take to recharge?
The built-in charger can fully recharge a depleted battery within approximately 24 hours.

Does it perform automatic testing?
Yes. The SDT system performs monthly 30-second and annual 90-minute tests.

Is it UL 924 listed?
Yes. The emergency ceiling light is designed to comply with UL 924 requirements.

Can it be installed in a drop ceiling?
Yes. The fixture supports bracket mounting for drop ceilings and T-bar suspended ceilings.

Can it be installed in sheetrock?
Yes. Spring mounting is designed for sheetrock ceilings.

Is it suitable for damp locations?
Yes. It is UL listed for damp locations.

Are bulk quantities available?
Yes. Bulk and contractor pricing is available for larger orders and projects.

What warranty is included?
The product includes a 5-year limited warranty.
