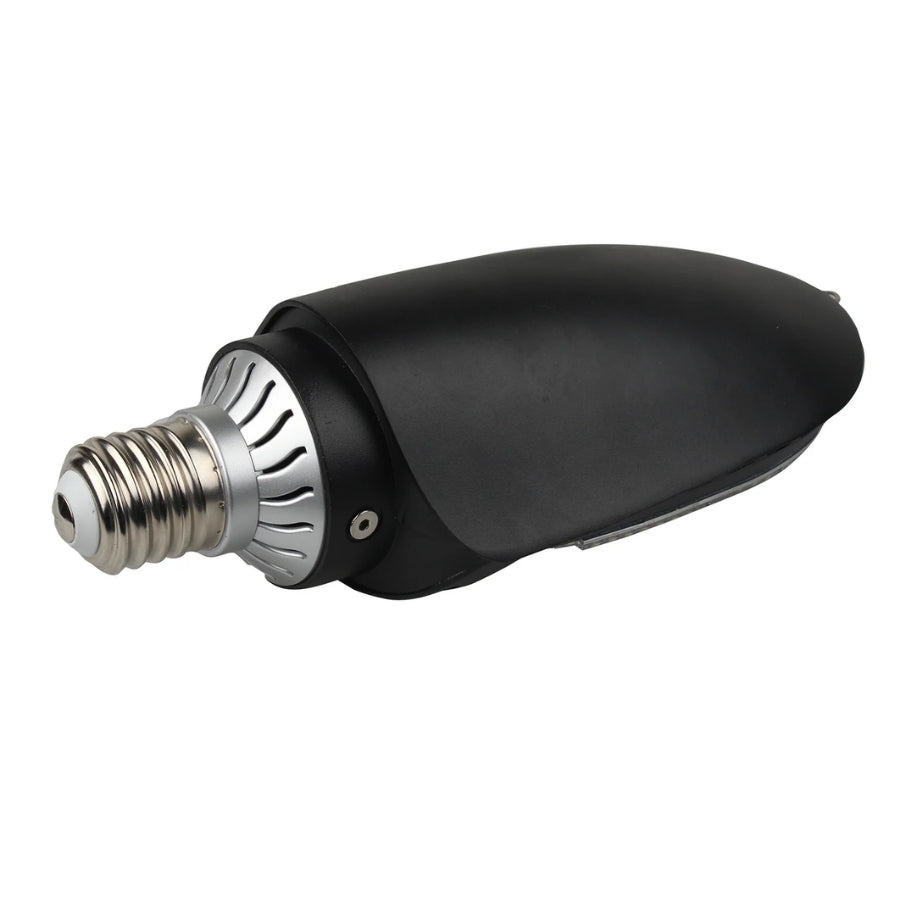

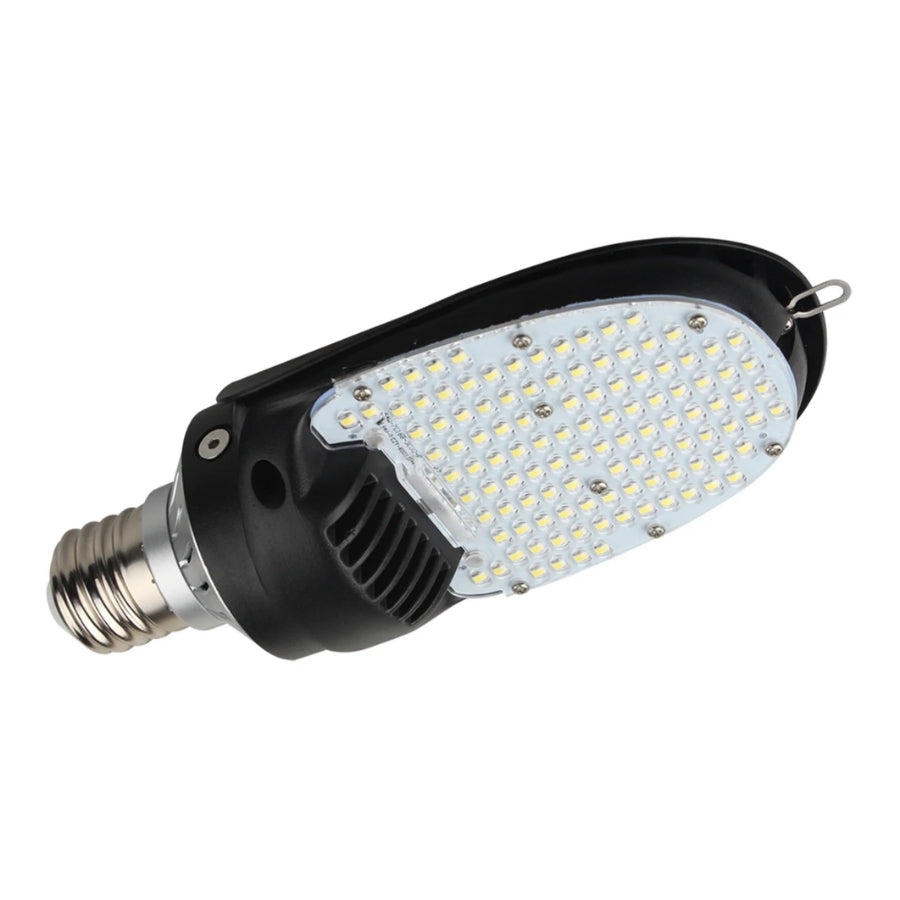

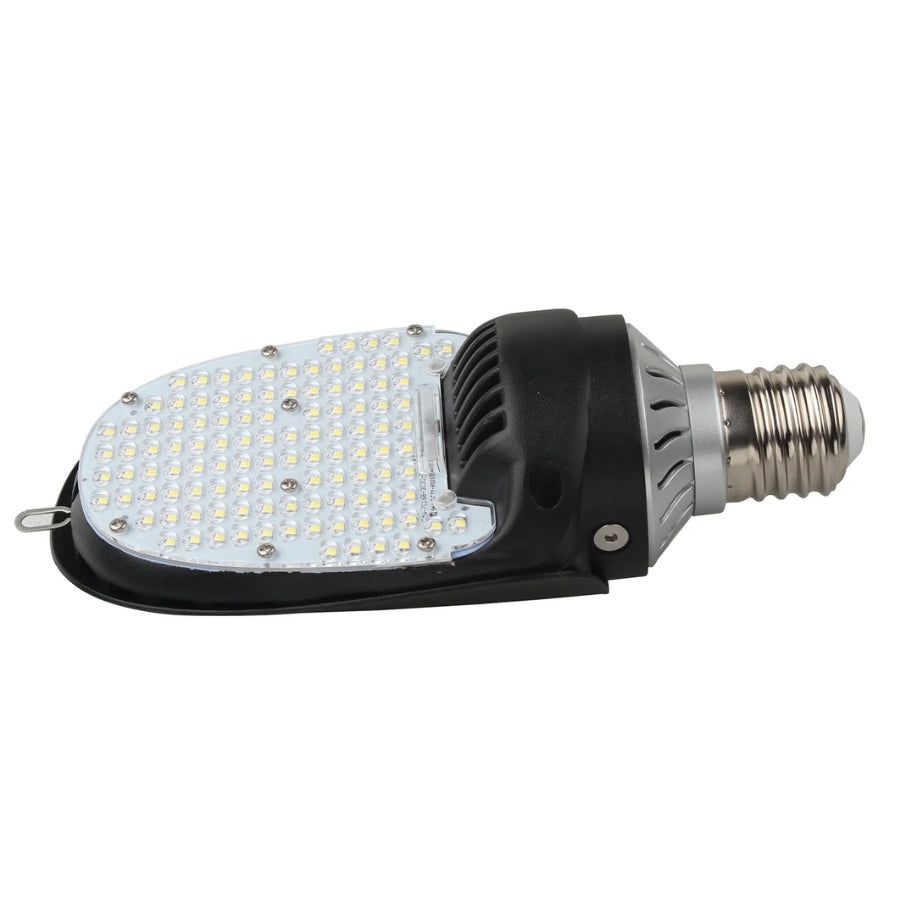

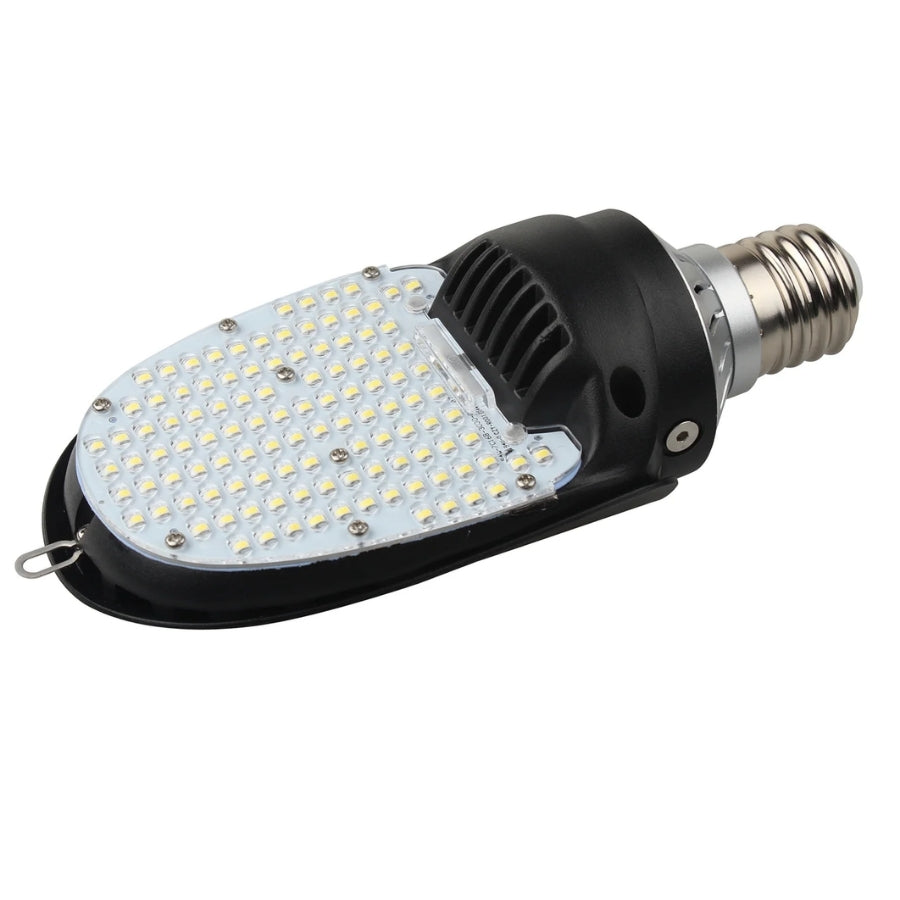

75W E39 LED Retrofit Lamp, 9,750 Lumens, 130 lm/W, 5000K, 120-277V AC, Rotatable E39 Mogul Base, 120° Beam Angle, Built-In Cooling Fan, Die-Cast Aluminum Housing, UL/cUL & DLC Listed, Ballast Bypass, 5-Year Warranty

Product Overview

Upgrade existing shoebox and area lighting with this 75W LED Retrofit Kit, producing 9,750 lumens at 130 lm/W. It provides a high-efficiency replacement for traditional metal halide and HPS lamps while maintaining the broad light coverage needed for outdoor commercial spaces.

The fixture combines high-brightness Lumileds LED chips with a die-cast aluminum housing and high-transmission PC optics for reliable performance and effective heat management.

A 120° beam angle delivers broad, even illumination, while the 120–277V AC input makes the retrofit compatible with a wide range of commercial electrical systems.

Choose from 3000K, 4000K, or 5000K to achieve the desired appearance for your property.

Key Features

• 9,750 lumens

• 130 lm/W efficiency

• 75W LED power

• 3000K / 4000K / 5000K options

• 120° beam angle

• 120–277V AC

• CRI >72

• Lumileds LED chips

• High-transmission PC optics

• Die-cast aluminum housing

• Excellent heat dissipation

• Internal isolated driver

• Flicker-free operation

• Designed for shoebox fixture retrofits

• Damp-location suitable

• UL / cUL / DLC listed

• 5-year limited warranty

Technical Specifications

Replace 150–200W HID Lighting

The 75W retrofit is designed as an efficient alternative to approximately 150–200W metal halide or HPS lamps.

For parking lots, commercial properties, and outdoor areas with long operating hours, upgrading to LED can help lower energy consumption and reduce maintenance associated with traditional HID lamps.

Broad, Even Illumination

The 120° beam angle provides wide coverage for outdoor spaces where consistent light distribution is important.

It works well for:

• Parking lots

• Pathways

• Gardens

• Walkways

• Commercial properties

• Building entrances

• Apartment communities

• Retail properties

• Outdoor common areas

Choose Your Color Temperature

Select the light appearance that fits your application:

• 3000K: Warm and comfortable

• 4000K: Balanced neutral white

• 5000K: Bright daylight white

Retrofit Your Existing Fixture

The retrofit design is intended for compatible shoebox fixtures and can help modernize existing installations without replacing the entire fixture.

The existing ballast must be removed or bypassed before installation. Installation should be performed by a qualified professional according to applicable electrical codes.

This product is suitable for damp locations and should not be used with dimmers.

Bulk & Project Pricing Available

Need dozens or hundreds of retrofits for a parking lot, commercial property, apartment community, or outdoor lighting project?

Bulk purchasing and project pricing are available for qualifying orders.

Contact UpgradeToLED for volume pricing, project quantities, and help selecting the right wattage.

Frequently Asked Questions

How many lumens does the 75W retrofit produce?

It produces 9,750 lumens at 130 lm/W.

What does it replace?

The 75W version is designed as an alternative to approximately 150–200W metal halide or HPS lamps.

What voltage does it use?

It operates on 120–277V AC.

What color temperatures are available?

The available options are 3000K, 4000K, and 5000K.

Does it require ballast bypass?

Yes. The existing ballast must be removed or bypassed before installation.

Can it be used outdoors?

It is suitable for damp locations and appropriately specified outdoor applications.

Can I use a dimmer?

No. The specifications indicate that the retrofit should not be used with dimmers.

What warranty is included?

A 5-year limited warranty is included.

Upgrade Your Shoebox Lighting

Get 9,750 lumens from just 75W with an efficient LED retrofit designed for compatible shoebox fixtures. The 120° distribution, selectable color temperatures, and 120–277V operation make it a flexible choice for parking and outdoor area lighting.

Need multiple units? Contact UpgradeToLED for bulk pricing and project assistance.
