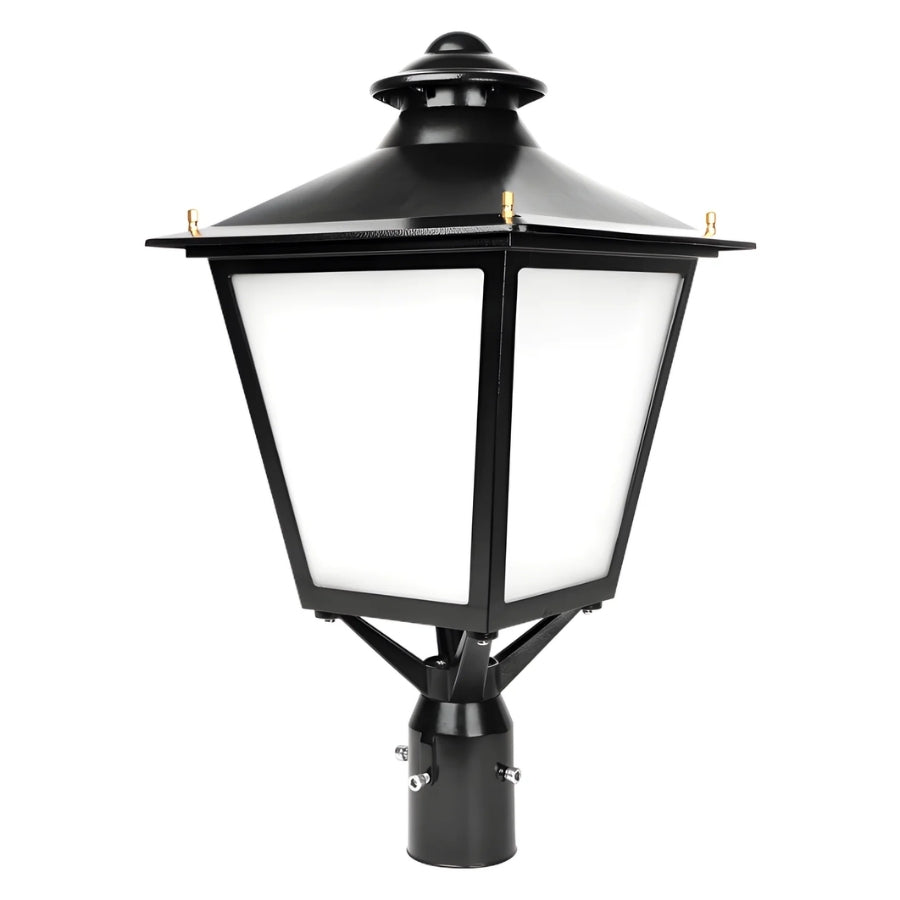

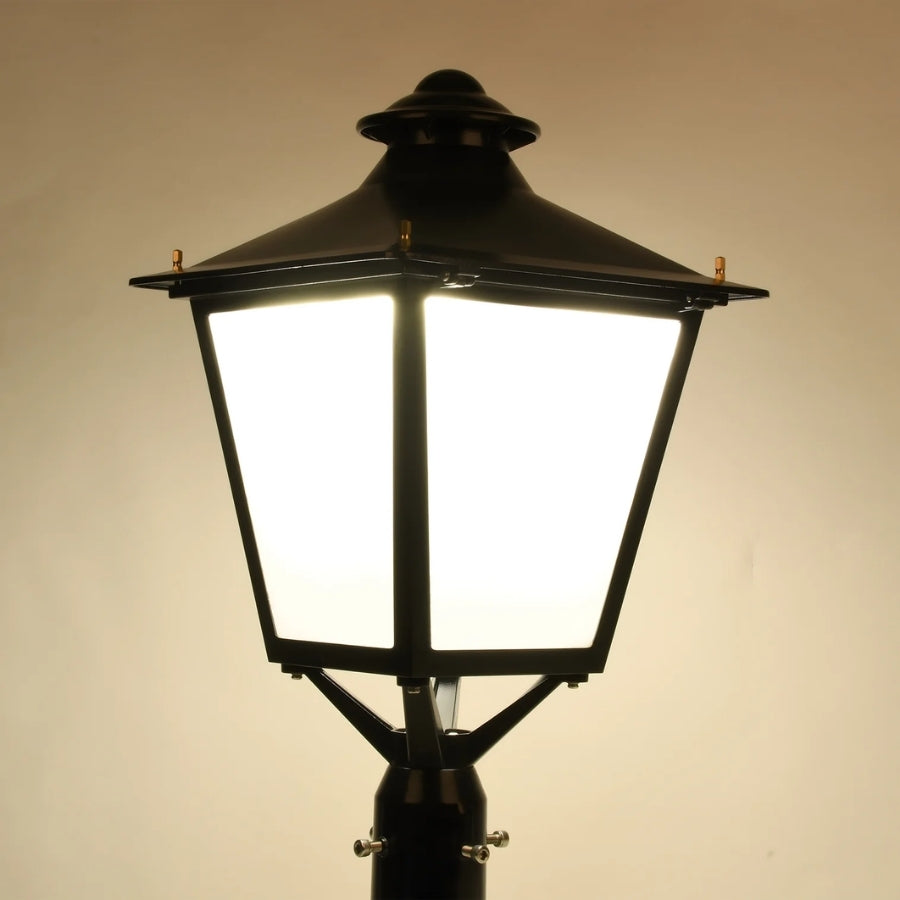

80W/100W/120W Selectable Lantern Post Top LED Light, 3CCT 3000K/4000K/5000K, 120 lm/W, 120-277V AC, 0-10V Dimmable, 120° Beam Angle, UL/cUL & DLC Listed, IP65, Black Die-Cast Aluminum Housing, Slip-Fit Mount, 5-Year Warranty

Product Overview

Illuminate large outdoor spaces with the 80W/100W/120W LED Lantern Post Top Light, a high-output decorative LED fixture designed for parking lots, commercial properties, shopping centers, sporting complexes, parks, and landscape lighting.

Delivering up to 14,400 lumens at 120 lumens per watt, this powerful LED post top provides bright, uniform illumination while helping reduce energy consumption compared with traditional HID lighting.

The fixture features three selectable wattages (80W, 100W, and 120W) and three selectable color temperatures (3000K, 4000K, and 5000K), giving you flexibility to adjust the brightness and lighting appearance for your project.

Built with a heavy-duty die-cast aluminum housing, black powder-coated finish, and high-quality glass optics, this LED lantern post top combines elegant outdoor styling with durable commercial-grade performance.

With 0–10V dimming, IP65 protection, and slip-fit mounting for 3-inch round poles, it is designed for reliable outdoor lighting installations.

Key Features

• 3 selectable wattages: 80W / 100W / 120W

• Up to 14,400 lumens

• High efficiency of 120 LM/W

• 3CCT selectable: 3000K / 4000K / 5000K

• 120–277V AC universal input

• 0–10V dimming for adjustable illumination

• Wide 120° nominal beam angle

• High-brightness LED chips

• Heavy-duty die-cast aluminum housing

• Black powder-coated finish

• High-quality glass lens

• IP65 rated for outdoor use

• Slip-fit mounting for 3-inch round poles

• Recommended mounting heights of 15–30 feet

• UL, cUL, and DLC listed

• 5-year limited warranty

Technical Specifications

High-Output Lighting with Three Selectable Wattages

This LED lantern post top provides flexible illumination for medium to large outdoor spaces.

Select the power level that best matches your outdoor lighting requirements.

The 120W setting delivers 14,400 lumens, making it an excellent option for large commercial areas, parking lots, and outdoor public spaces where stronger illumination is needed.

Lower wattage settings allow you to reduce energy consumption when less brightness is required.

3CCT Selectable for Customized Outdoor Illumination

Choose from three selectable color temperatures to match your environment.

• 3000K Warm White: Creates a welcoming atmosphere for landscaped properties, gardens, and decorative outdoor areas.

• 4000K Neutral White: Provides balanced illumination for commercial spaces, parking areas, and walkways.

• 5000K Cool White: Delivers crisp, bright lighting for larger outdoor areas where visibility is important.

The built-in CCT selector makes it easy to configure the fixture during installation.

Replace Traditional 160–400W HID Lighting

This LED lantern post top is designed as an energy-efficient alternative to approximately 160–400W metal halide and high-pressure sodium lighting.

With an efficiency of 120 LM/W, it delivers substantial light output while using less power than many traditional HID systems.

For commercial properties operating outdoor lights for extended hours, upgrading to LED can help reduce electricity costs and maintenance associated with conventional HID lamps.

Wide Light Distribution for Outdoor Spaces

The high-quality glass optical system provides a 120° nominal beam angle for broad illumination.

Its wide light distribution makes the fixture suitable for open outdoor areas such as parking lots, shopping centers, gardens, pathways, and recreational facilities.

Durable Construction for Demanding Environments

Built with a heavy-duty die-cast aluminum housing and black powder-coated finish, this fixture is designed for long-term outdoor performance.

The high-transmission glass lens supports efficient illumination, while the IP65 protection rating helps protect against dust and water exposure.

An operating temperature range of -20°C to +45°C makes it suitable for many commercial and outdoor environments.

0–10V Dimming for Flexible Control

The fixture supports 0–10V dimming, allowing compatible lighting control systems to adjust brightness.

This feature provides additional flexibility for commercial properties, parking facilities, and public spaces that may benefit from adjustable illumination.

Slip-Fit Installation for 3-Inch Round Poles

The LED lantern post top is designed for 3-inch round pole mounting using a slip-fit installation system.

Recommended pole heights range from 15 to 30 feet, depending on the application and lighting design.

The mounting assembly allows the fixture to be secured to the pole after the electrical connections are completed.

Professional installation is recommended to ensure proper mounting, wiring, and operation.

Ideal Applications

• Large parking lots

• Shopping malls

• Auto dealerships

• Commercial properties

• Sporting complexes

• Public parks

• Garden and landscape lighting

• Pathway lighting

• Residential communities

• Business parks

• Outdoor recreational facilities

• Decorative commercial pole lighting

Bulk & Project Pricing Available

Upgrading outdoor lighting across a parking lot, shopping center, residential community, or commercial facility?

UpgradeToLED offers bulk and project pricing for qualifying orders. Contact our team for volume pricing and help selecting the appropriate wattage for your outdoor lighting project.

Frequently Asked Questions

What wattages can I select?

The fixture offers 80W, 100W, and 120W selectable power settings.

How many lumens does it produce?

It delivers 9,600 lumens at 80W, 12,000 lumens at 100W, and 14,400 lumens at 120W.

What color temperatures are available?

The fixture offers 3000K, 4000K, and 5000K selectable color temperatures.

Is the lantern post top dimmable?

Yes. It supports 0–10V dimming with compatible lighting controls.

What size pole does it fit?

The fixture uses a slip-fit mounting system designed for 3-inch round poles.

What mounting height is recommended?

The manufacturer recommends pole heights of 15–30 feet, depending on the installation and lighting requirements.

Is it suitable for outdoor environments?

Yes. The fixture features an IP65 protection rating and durable die-cast aluminum construction for outdoor applications.

What HID wattage does it replace?

It is designed to replace approximately 160–400W MH/HPS lighting, depending on the selected wattage and application.

What voltage does it support?

The fixture operates on 120–277V AC.

What warranty is included?

The product includes a 5-year limited warranty, subject to the manufacturer's terms.

Upgrade to High-Performance LED Post Top Lighting

Brighten large outdoor spaces with the 80W/100W/120W LED Lantern Post Top Light, combining up to 14,400 lumens, selectable wattage, adjustable color temperature, and energy-efficient LED performance.

With durable construction, 0–10V dimming, IP65 protection, and convenient 3-inch round pole mounting, this fixture is an excellent choice for modernizing commercial and decorative outdoor lighting.
