80W Full Cutoff LED Wall Pack – 11,200 Lumens, Built-In Dusk-to-Dawn Photocell, Selectable 3000K/4000K/5000K CCT, 250W Metal Halide Equivalent, 120–277V, DLC Premium, 5-Year Warranty
SKU:
UTLED-1040
- $83.50
$91.85- $83.50
- Unit price
- per
Get your quote within 1 hour!
Free shipping on orders over $99
We promise same day shipping
PRODUCT SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Type | Full Cutoff LED Wall Pack |
| Brand | UpgradeToLED |
| Wattage | 80W |
| Lumen Output | 11,200 Lumens |
| Luminous Efficacy | Up to 140 lm/W |
| Input Voltage | 120-277V AC |
| Frequency | 50/60Hz |
| Color Temperature | 3000K / 4000K / 5000K Selectable |
| CRI | 80+ |
| Dimming | 0-10V Dimmable |
| Photocell | Built-In Dusk-to-Dawn Photocell (Included) |
| Beam Distribution | Full Cutoff Forward Throw |
| Housing Material | Heavy-Duty Die-Cast Aluminum |
| Lens Material | UV-Resistant Polycarbonate |
| Housing Finish | Bronze Powder-Coated Finish |
| Mounting Type | Surface Wall Mount |
| IP Rating | IP65 Wet Location |
| Lifespan | 50,000+ Hours |
| HID Replacement | Replaces Up to 320W Metal Halide |
| Certifications | DLC Premium |
| Warranty | 5-Year Limited Warranty |
DURABLE CONSTRUCTION
| Component | Description |
|---|---|
| Housing | Commercial-grade die-cast aluminum construction |
| Finish | Corrosion-resistant bronze powder-coated finish |
| Lens | UV-stabilized impact-resistant polycarbonate lens |
| Heat Dissipation | Integrated aluminum heat sink for long LED life |
| Photocell | Factory-installed dusk-to-dawn photocell |
| Weather Protection | IP65 sealed against rain, dust, and harsh environments |
| Hardware | Corrosion-resistant mounting hardware |
FEATURES / ACCESSORIES
| Feature | Included |
|---|---|
| Built-In Photocell | Yes |
| 3CCT Selectable (3000K/4000K/5000K) | Yes |
| 0-10V Dimming | Yes |
| DLC Premium Listed | Yes |
| Full Cutoff Optical Design | Yes |
| Mounting Hardware | Yes |
| Installation Instructions | Yes |
| Die-Cast Aluminum Housing | Yes |
| Polycarbonate Lens | Yes |
PRODUCT OVERVIEW
The UpgradeToLED 80W Full Cutoff LED Wall Pack is engineered to provide powerful, energy-efficient outdoor illumination while minimizing glare and unwanted light trespass. Producing up to 11,200 lumens, this commercial-grade fixture features a full cutoff optical design that directs light downward where it is needed most, making it ideal for security lighting, building perimeters, walkways, loading docks, and commercial entrances.
With selectable 3000K, 4000K, and 5000K color temperatures, an integrated dusk-to-dawn photocell, and universal 120-277V operation, one fixture can be configured for a wide variety of commercial applications. Its rugged die-cast aluminum housing, IP65 weatherproof rating, and DLC Premium certification ensure dependable performance in demanding outdoor environments. Comparable commercial fixtures offer 11,200 lumens, selectable CCT, integrated photocells, and DLC Premium efficiency.
CORE PERFORMANCE AND OUTPUT
Designed for superior exterior illumination, this fixture produces 11,200 lumens while consuming only 80 watts, delivering excellent efficacy of up to 140 lumens per watt.
The full cutoff optical design concentrates light on walkways, entrances, and building perimeters while helping reduce glare and sky glow. It is commonly used as an energy-efficient replacement for 320W metal halide wall packs, significantly lowering electricity consumption and maintenance costs.
ADJUSTABILITY AND CONTROL OPTIONS
This fixture includes multiple built-in features for flexible installation.
- 3000K / 4000K / 5000K selectable color temperatures
- Built-in dusk-to-dawn photocell
- Automatic on/off operation
- 0-10V dimming compatibility
- Universal 120-277V driver
- One fixture for multiple commercial applications
The selectable color temperatures allow contractors to match lighting requirements without stocking multiple fixture models.
LONGEVITY AND RELIABILITY
Built for continuous outdoor operation, this commercial fixture provides years of dependable performance.
Key benefits include:
- 50,000+ hour LED lifespan
- Reduced maintenance costs
- Stable lumen output
- Commercial-grade LED driver
- Efficient thermal management
- Corrosion-resistant finish
- Reliable operation in harsh outdoor environments
BUILD QUALITY AND PHYSICAL CHARACTERISTICS
Constructed for demanding commercial installations, the fixture includes:
- Heavy-duty die-cast aluminum housing
- Full cutoff optical reflector
- UV-resistant polycarbonate lens
- Bronze outdoor powder-coated finish
- Integrated aluminum heat sink
- Sealed optical chamber
- IP65 weatherproof construction
- Architectural commercial appearance

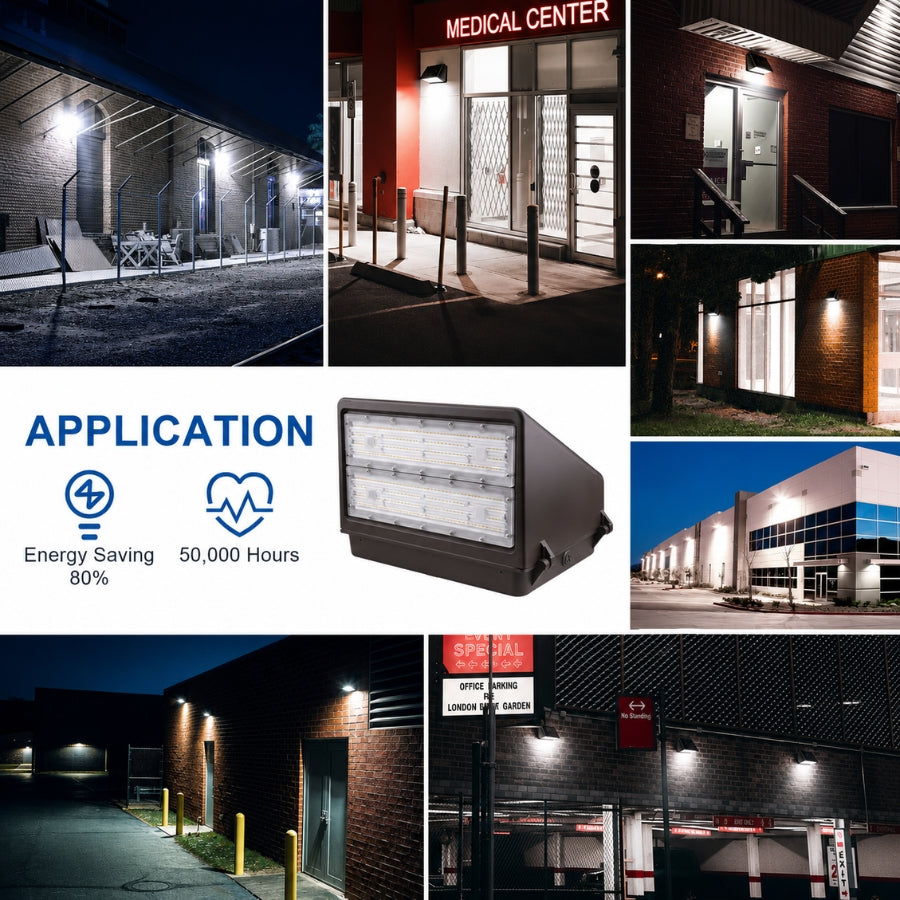

WHERE THIS PRODUCT FITS BEST
Ideal for:
- Commercial buildings
- Warehouses
- Distribution centers
- Office buildings
- Apartment complexes
- Shopping centers
- Schools and universities
- Hospitals
- Manufacturing facilities
- Parking lots
- Loading docks
- Building entrances
- Service areas
- Walkways
- Security lighting
INSTALLATION AND LONG-TERM USE
The universal 120-277V driver allows simple installation in both retrofit and new construction projects. Contractors can easily select the preferred color temperature before energizing the fixture.
Once installed, the integrated photocell automatically turns the light on at dusk and off at dawn, reducing energy consumption without manual control. Combined with its weather-resistant construction and long-life LED system, the fixture delivers years of dependable service with minimal maintenance.
HOW THIS FIXTURE IS COMMONLY USED
This Full Cutoff LED Wall Pack is commonly installed to:
- Replace outdated HID wall packs
- Illuminate commercial entrances
- Improve warehouse security
- Light loading docks
- Illuminate building perimeters
- Enhance parking lot visibility
- Reduce glare and light trespass
- Improve pedestrian safety
- Provide dusk-to-dawn security lighting
- Reduce electrical and maintenance costs
SAFETY, CERTIFICATIONS, AND WARRANTY
Built for commercial performance and long-term reliability.
- DLC Premium Listed
- IP65 Wet Location Rated
- Built-in dusk-to-dawn photocell
- 0-10V dimming compatible
- Commercial-grade LED driver
- Energy-efficient LED technology
- 5-Year Limited Warranty
FREQUENTLY ASKED QUESTIONS
Does this wall pack include a photocell?
Yes. The fixture comes with a built-in dusk-to-dawn photocell that automatically turns the light on at sunset and off at sunrise.
Can I choose the color temperature?
Yes. You can select 3000K, 4000K, or 5000K during installation.
Is this fixture dimmable?
Yes. It supports standard 0-10V dimming systems.
What HID fixture can it replace?
It is commonly used as an energy-efficient replacement for up to 320W metal halide wall packs while providing comparable or better light output.
Is it suitable for outdoor use?
Yes. The IP65-rated enclosure is designed for wet-location commercial and industrial applications.
What voltage does it support?
The fixture operates on universal 120-277V AC power.
How long will the LEDs last?
The LED system is rated for more than 50,000 hours of operation.
APPLICATION QUESTIONS AND CLARIFICATION
Is this fixture suitable for commercial buildings?
Yes. It is ideal for offices, warehouses, schools, hospitals, retail centers, apartment communities, and industrial facilities.
Why choose a full cutoff wall pack?
A full cutoff optical design directs light downward to improve visibility while reducing glare, light trespass, and unnecessary uplight, helping create a more efficient and professional lighting installation.
Can it be used for security lighting?
Absolutely. The high lumen output and integrated photocell make it an excellent choice for perimeter security, entrances, loading docks, and building exteriors.
Is it suitable for parking lots and walkways?
Yes. The forward-throw full cutoff optics provide uniform illumination for parking areas, sidewalks, pedestrian paths, and service entrances.
Can it withstand harsh outdoor conditions?
Yes. The die-cast aluminum housing, bronze powder-coated finish, UV-resistant polycarbonate lens, and IP65 weatherproof rating are designed for reliable year-round operation in rain, dust, and demanding commercial environments.
