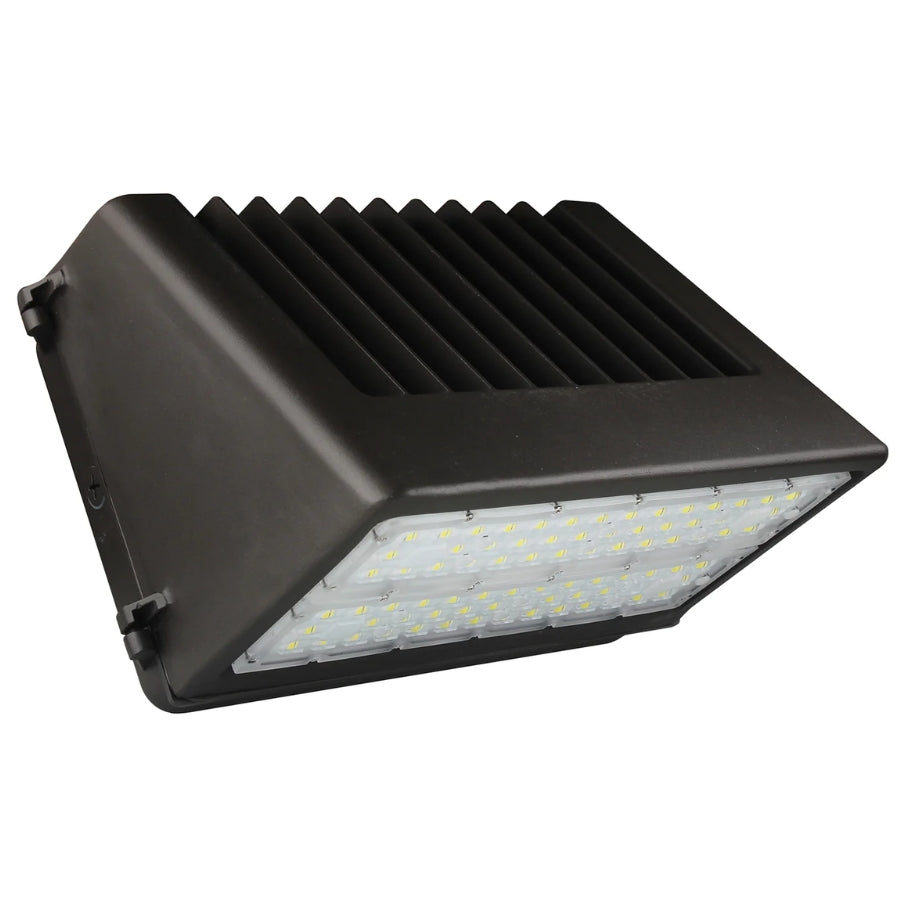

The UpgradeToLED 80W Full Cutoff LED Wall Pack is engineered to deliver powerful, energy-efficient exterior illumination for commercial and industrial applications. Featuring a full cutoff optical design, this fixture directs light downward where it is needed most, reducing glare and light trespass while improving visibility and security around buildings, loading docks, parking areas, warehouses, and commercial facilities.
Powered by premium Lumileds 3030 LED chips, the fixture produces up to 11,200 lumens with an impressive efficacy of 140 lumens per watt. Selectable color temperatures of 3000K, 4000K, and 5000K allow contractors and facility managers to customize the lighting environment for specific applications while maintaining excellent visibility and comfort.
Constructed from heavy-duty die-cast aluminum with a durable bronze powder-coated finish, this wall pack is designed to withstand harsh outdoor environments. The UV-resistant polycarbonate lens provides superior light transmission and long-term durability, while the IP65 wet-location rating ensures reliable performance in rain, snow, and challenging weather conditions.
The fixture includes a built-in photocell for automatic dusk-to-dawn operation and a UL Listed Daermay 0-10V dimmable driver for advanced lighting control and energy savings. Operating on 120-277VAC, this DLC Premium Listed wall pack delivers dependable performance with a 50,000-hour rated lifespan and minimal maintenance requirements.
Ideal for warehouses, factories, shopping centers, supermarkets, logistics centers, parking lots, and commercial building exteriors requiring reliable and efficient outdoor lighting.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | UpgradeToLED |
| Product Type | Full Cutoff LED Wall Pack |
| Model | AST-FWP01B-80D5BYT3SA1 |
| Wattage | 80W |
| Lumen Output | 11,200 Lumens |
| Efficacy | 140 LM/W |
| Color Temperature | 3000K / 4000K / 5000K |
| CRI | >80 |
| Input Voltage | 120-277VAC |
| Input Current | 0.66A @120V / 0.28A @277V |
| Driver | UL Listed Daermay, 0-10V Dimmable |
| LED Chips | Lumileds 3030 |
| Distribution Type | Full Cutoff Type III |
| Surge Protection | 4KV |
| Housing Material | Die-Cast Aluminum |
| Lens Material | UV-Resistant Polycarbonate |
| Finish | Bronze Powder-Coated |
| Photocell | Included |
| Waterproof Rating | IP65 |
| Operating Temperature | -30°C to 45°C |
| Junction Temperature | <75°C |
| Fixture Efficiency | ≥90% |
| Mounting | Wall Mount with Quick-Mount Back Plate |
| Lifetime | 50,000 Hours |
| Certifications | UL Listed, cUL Listed, DLC Premium |
| Equivalent Replacement | 160W-250W MH/HPS |
| Warranty | 5-Year Limited |
| Applications | Warehouses, Factories, Shopping Malls, Supermarkets, Logistics Centers, Commercial Buildings |
