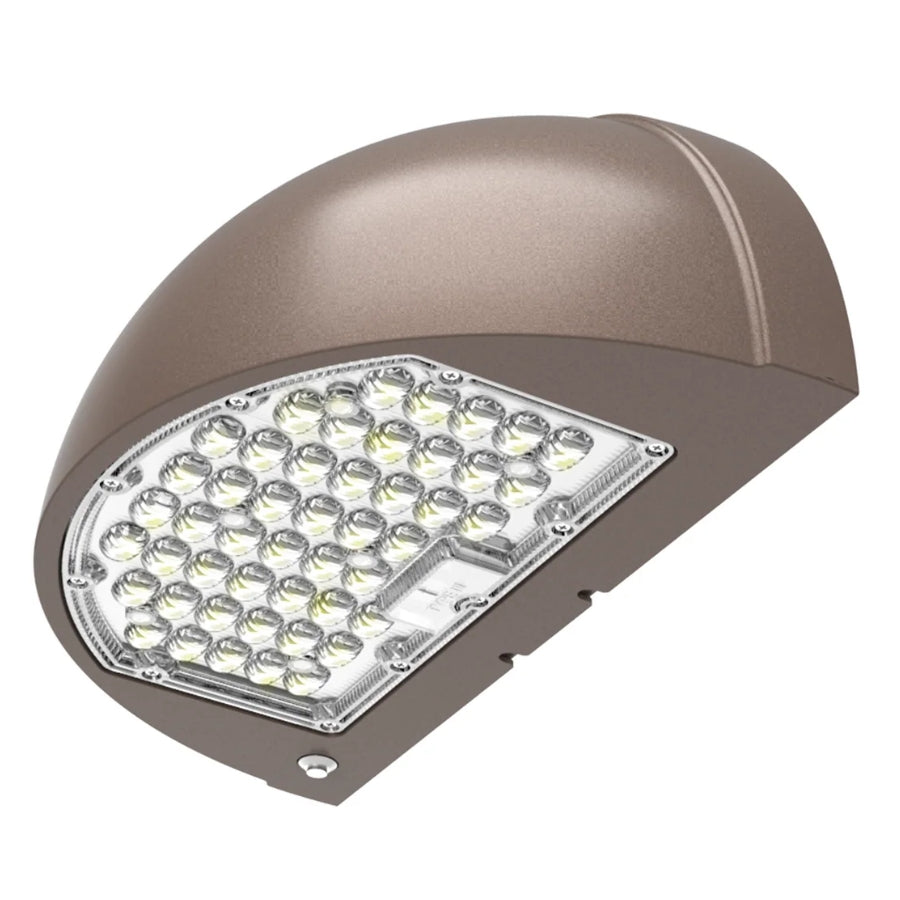

The UpgradeToLED LED Half Moon Wall Pack is a versatile commercial outdoor lighting solution designed to provide exceptional illumination, energy efficiency, and installation flexibility for a wide range of exterior applications. Featuring three selectable wattages (48W, 64W, and 80W) and three selectable color temperatures (3000K, 4000K, and 5000K), this fixture allows contractors and facility managers to customize light output and color temperature on-site, reducing inventory requirements while simplifying project planning.
Powered by premium Lumileds 3030 LED chips, the fixture delivers up to 10,800 lumens with an impressive efficacy of 135 lumens per watt, providing bright, uniform illumination while significantly reducing energy consumption compared to traditional HID fixtures. The Type III light distribution ensures excellent coverage for building perimeters, walkways, entrances, loading areas, and commercial exterior spaces.
Constructed from rugged die-cast aluminum with a durable bronze powder-coated finish and a high-transmittance polycarbonate lens, the fixture is built to withstand demanding outdoor environments. Its IP65 waterproof rating protects against dust and moisture, making it suitable for wet-location installations.
The fixture operates on 120-347VAC, includes a built-in dusk-to-dawn photocell, and features a standard 0-10V dimmable driver for enhanced energy savings. An optional emergency battery backup is available for additional safety and code compliance. Installation is quick and easy using the integrated mounting bracket system.
With a 50,000-hour rated lifespan, UL Listed, cUL Listed, and DLC Listed certifications, the UpgradeToLED LED Half Moon Wall Pack is ideal for warehouses, steel mills, toll booths, railway platforms, storage facilities, commercial buildings, and other exterior lighting applications requiring dependable, energy-efficient illumination.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | UpgradeToLED |
| Product Type | LED Half Moon Wall Pack |
| Model | BWWP5-80/64/48W-CSP |
| Wattage Selectable | 48W / 64W / 80W |
| Lumen Output | 6,480 / 8,640 / 10,800 Lumens |
| Light Efficiency | 135 LM/W |
| Color Temperature | 3000K / 4000K / 5000K (3CCT Selectable) |
| CRI | >72 |
| Input Voltage | 120-347VAC |
| Power Factor | >0.90 |
| Input Current | 0.40A / 0.53A / 0.66A @120V |
| LED Chips | Lumileds 3030 |
| Distribution Type | Type III |
| Driver | UL Listed WELEDPOWER, 0-10V Dimmable |
| Housing Material | Heavy Die-Cast Aluminum |
| Lens Material | High-Transmittance Polycarbonate |
| Finish | Bronze Powder-Coated |
| Photocell | Built-In Dusk-to-Dawn |
| Waterproof Rating | IP65 |
| Operating Temperature | -30°C to 45°C |
| Junction Temperature | <75°C |
| Fixture Efficiency | ≥90% |
| Mounting | Wall Mount with Quick-Mount Bracket |
| Lifetime | 50,000 Hours |
| Certifications | UL Listed, cUL Listed, DLC Listed |
| Warranty | 5-Year Limited |
| Equivalent Replacement | 96-150W / 150-200W / 180-300W MH/HPS |
| Applications | Warehouses, Steel Mills, Toll Booths, Railway Platforms, Storage Facilities, Commercial Buildings, Waiting Rooms |
