UpgradeToLED Lighting

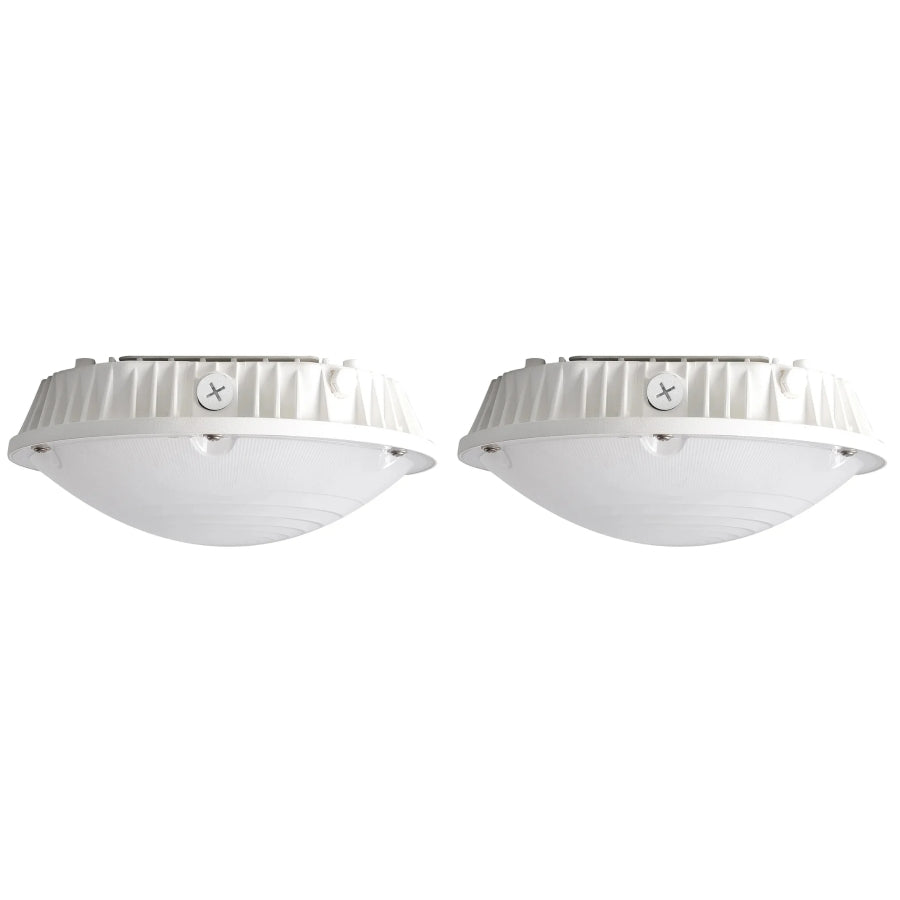

V3 Oval LED Parking Garage Light, 30W/40W/60W Selectable, 250W Metal Halide Equivalent, Up to 9,000 Lumens, 3CCT Tunable 3000K/4000K/5000K, Motion Sensor Ready, DLC Premium, Commercial LED Garage Ceiling Light, 120-277V AC, 5-Year Warranty
SKU:
UTLED-1065
- $124.60
$137.06- $124.60
- Unit price
- per
Get your quote within 1 hour!
Free shipping on orders over $99
We promise same day shipping
Product Specifications
| Specification | Details |
|---|---|
| Brand | UpgradeToLED |
| Product Type | V3 Oval LED Parking Garage Light |
| Selectable Wattage | 30W / 40W / 60W |
| Metal Halide Equivalent | Up to 250W MH |
| Lumen Output | 4,500 / 6,000 / 9,000 Lumens |
| Efficacy | Up to 150 LM/W |
| Selectable Color Temperatures | 3000K / 4000K / 5000K |
| CCT Technology | 3CCT Tunable |
| Input Voltage | 120-277V AC |
| Dimming | 0-10V Dimmable |
| Motion Sensor Ready | Yes |
| Emergency Backup Compatible | Optional 18W Emergency Driver |
| Beam Angle | 154.3° Wide Distribution |
| LED Chips | Premium Lumileds 2835 |
| Housing Material | Die-Cast Aluminum |
| Lens Material | Anti-UV Polycarbonate Optics |
| Finish | White Powder-Coated |
| Mounting Options | Surface Mount, Side Wiring, 3/4" Pendant Mount |
| IP Rating | IP65 Wet Location Rated |
| Operating Temperature | -20°C to 45°C |
| Lifespan | 50,000 Hours |
| Certifications | ETL Listed, DLC Premium |
| Warranty | 5-Year Warranty |
Durable Construction
| Feature | Benefit |
|---|---|
| Die-Cast Aluminum Housing | Excellent heat dissipation and durability |
| White Powder-Coated Finish | Corrosion-resistant for long-term performance |
| Anti-UV Polycarbonate Lens | Maintains optical clarity and light output |
| Commercial-Grade Driver | Reliable operation in demanding environments |
| IP65-Rated Construction | Protection from moisture, dust, and debris |
| Integrated Thermal Management | Extends LED lifespan |
| Commercial Components | Designed for continuous daily operation |
Measurements
| Dimension | Measurement |
|---|---|
| Fixture Diameter | 11.42 Inches |
| Fixture Height | 4.49 Inches |
| Fixture Shape | Oval Profile |
| Mounting Options | Surface, Pendant, Side Entry |
| Housing Style | Low-Profile Commercial Design |
Product Overview
The UpgradeToLED V3 Oval LED Parking Garage Light is a versatile commercial lighting solution engineered for parking garages, underground parking structures, stairwells, hallways, covered walkways, apartment complexes, and commercial facilities. Featuring field-selectable wattages of 30W, 40W, and 60W along with selectable 3000K, 4000K, and 5000K color temperatures, this fixture offers exceptional flexibility for contractors, facility managers, and retrofit projects.
Producing up to 9,000 lumens with industry-leading efficiency up to 150 lumens per watt, the V3 Oval Garage Light delivers bright, uniform illumination while significantly reducing energy consumption and maintenance costs.
Core Performance and Output
The V3 Oval Garage Light allows users to optimize illumination levels based on specific project requirements.
Wattage Settings
- 30W
- 40W
- 60W
Lumen Output
- 4,500 Lumens
- 6,000 Lumens
- 9,000 Lumens
Color Temperature Options
- 3000K Warm White
- 4000K Neutral White
- 5000K Daylight White
Performance Benefits
- Up to 150 LM/W efficacy
- Wide 154.3° beam angle
- Uniform light distribution
- Reduced energy consumption
- Instant-on illumination
- Improved visibility and safety
The wide beam distribution helps minimize shadows and dark spots throughout parking structures and pedestrian areas.
Adjustability and Control Options
One fixture can serve multiple project requirements thanks to its built-in adjustability.
Adjustable Features
- 30W / 40W / 60W Wattage Selection
- 3000K / 4000K / 5000K Color Selection
- 0-10V Dimming
- Motion Sensor Ready
- Optional Occupancy Sensor
- Universal 120-277V Input
- Optional Emergency Battery Backup
Field-selectable wattage and color temperature fixtures help reduce inventory requirements while simplifying project planning. Motion sensor compatibility can provide additional energy savings in parking garages and low-traffic areas.
Longevity and Reliability
Built for demanding commercial environments, the UpgradeToLED V3 Oval Garage Light delivers dependable performance for years.
Long-term benefits include:
- 50,000-hour rated lifespan
- Reduced maintenance costs
- Fewer fixture replacements
- Stable lumen output
- Efficient thermal management
- Reliable commercial operation
Compared with traditional HID fixtures, LED parking garage lights significantly reduce maintenance and energy expenses while providing more consistent illumination.
Build Quality and Physical Characteristics
The fixture combines premium materials with advanced engineering to withstand challenging commercial environments.
Physical Features
- Die-cast aluminum construction
- White powder-coated finish
- Anti-UV polycarbonate optics
- Low-profile oval design
- Corrosion-resistant housing
- IP65 weather protection
- Commercial-grade thermal management
Its modern oval profile provides an attractive appearance while maximizing light distribution throughout parking structures and covered outdoor spaces.
Where This Product Fits Best
The UpgradeToLED V3 Oval LED Parking Garage Light is ideal for:
- Parking Garages
- Underground Parking Structures
- Apartment Complexes
- Commercial Buildings
- Stairwells
- Hallways
- Covered Walkways
- Parking Decks
- Warehouses
- Retail Centers
- Loading Areas
- Covered Outdoor Facilities
Parking garage fixtures with selectable wattage, selectable CCT, and occupancy sensor compatibility are commonly specified for these applications.
Installation and Long-Term Use
The fixture is designed for easy installation in both retrofit and new-construction projects.
Installation Options
- Surface Mount
- Side Wiring Installation
- 3/4" Pendant Mount
Installation Benefits
- Universal 120-277V compatibility
- Adjustable wattage settings
- Adjustable color temperatures
- Motion sensor compatibility
- Emergency backup compatibility
- Retrofit-friendly design
The flexible installation methods make the V3 Oval fixture suitable for a wide range of commercial applications.
How This Fixture Is Commonly Used
Facility managers and contractors commonly install this fixture in:
- Parking Garages
- Underground Parking Areas
- Apartment Parking Structures
- Commercial Walkways
- Stairwells
- Retail Parking Areas
- Warehouse Corridors
- Building Entrances
- Covered Vehicle Storage Areas
- Transportation Facilities
The wide beam angle and uniform illumination improve safety, visibility, and overall user experience.
Safety, Certifications, and Warranty
Certifications
- ETL Listed
- DLC Premium Listed
- IP65 Wet Location Rated
These certifications demonstrate compliance with recognized commercial lighting standards for safety, energy efficiency, and durability. DLC Premium certification may also help qualify for energy rebate programs where available.
Warranty
The UpgradeToLED V3 Oval LED Parking Garage Light is backed by a 5-Year Limited Warranty for long-term commercial confidence.
Frequently Asked Questions
How many lumens does this fixture produce?
The fixture produces up to 9,000 lumens depending on the selected wattage.
What wattages are available?
You can select 30W, 40W, or 60W during installation.
What color temperatures can be selected?
The fixture offers 3000K, 4000K, and 5000K color temperature options.
Is the fixture dimmable?
Yes. It supports 0-10V dimming.
Does it support motion sensors?
Yes. The fixture is motion sensor ready and supports optional occupancy sensors.
Can emergency backup be added?
Yes. An optional 18W emergency battery backup driver is available.
What HID fixture does it replace?
It can replace traditional 100W to 250W HPS and metal halide fixtures.
Is it suitable for wet locations?
Yes. The fixture carries an IP65 wet-location rating.
Application Questions and Clarification
Which wattage should I choose?
30W: Stairwells, hallways, and lower mounting heights
40W: General parking garage applications
60W: High-traffic parking structures and brighter illumination requirements
Which color temperature is best?
3000K: Warm and welcoming environments
4000K: Balanced commercial lighting
5000K: Maximum visibility and security
Is motion sensor functionality beneficial?
Yes. Occupancy sensors can reduce energy consumption significantly in parking garages and low-traffic zones by dimming or switching lights when areas are unoccupied.
Can this help reduce inventory?
Yes. One fixture provides three wattages and three color temperatures, allowing contractors and distributors to cover multiple applications with a single product SKU.
Who typically purchases this fixture?
- Parking Garage Owners
- Property Managers
- Facility Managers
- Electrical Contractors
- Apartment Complex Operators
- Commercial Building Owners
- Maintenance Companies
- Commercial Developers
