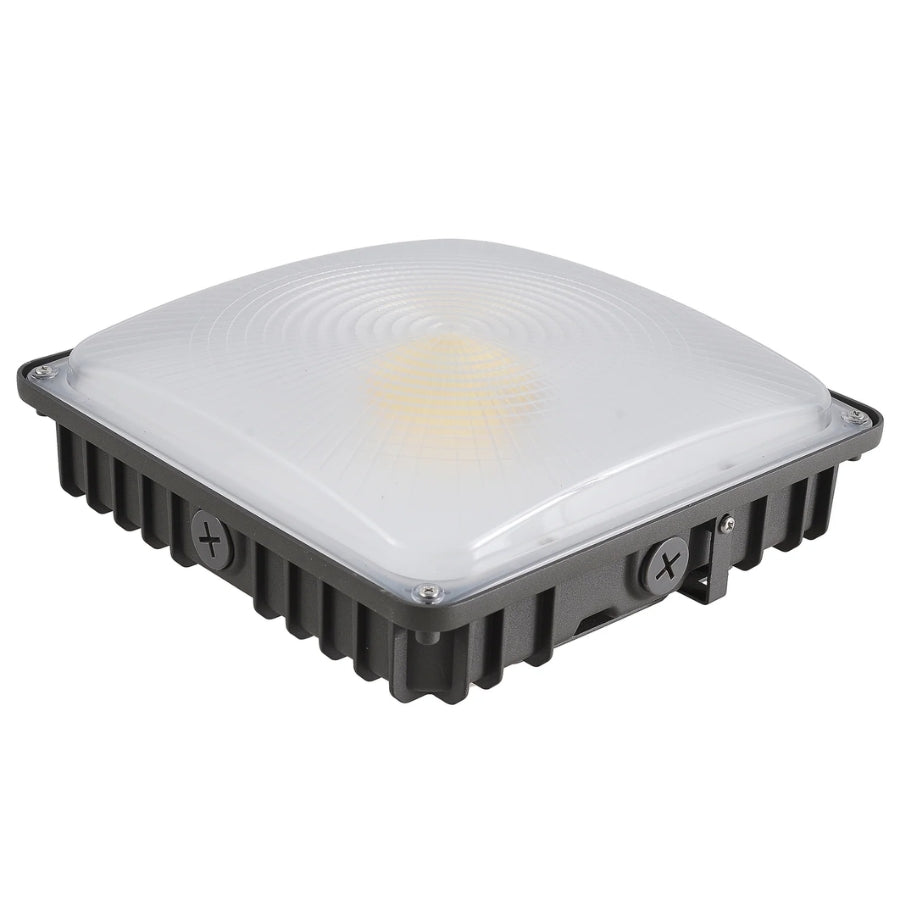

The UpgradeToLED V4 LED Canopy Light is a versatile commercial lighting solution designed for parking garages, canopies, covered walkways, gas stations, warehouses, and building entrances. Featuring field-selectable wattages of 30W, 45W, and 70W along with selectable 3000K, 4000K, and 5000K color temperatures, this fixture allows contractors and facility managers to customize illumination levels and light color to meet specific project requirements.
Powered by premium Lumileds 2835 LED technology, the fixture delivers up to 9,100 lumens while maintaining an impressive 130 lumens per watt efficacy. The wide 150° beam angle provides uniform light distribution across parking structures, underground garages, commercial canopies, and pedestrian areas, enhancing visibility and safety.
The fixture features a rugged die-cast aluminum housing with a durable bronze powder-coated finish that resists corrosion and weathering in demanding outdoor environments. High-transmission anti-UV polycarbonate optics maximize light output while maintaining long-term optical performance. Built-in power and CCT adjustment switches simplify inventory management by allowing multiple configurations from a single fixture.
For enhanced energy savings, the fixture includes a motion sensor receptacle port compatible with plug-and-play occupancy sensors. Standard 0-10V dimming support allows integration with modern lighting control systems, reducing operating costs while maximizing efficiency.
Designed for operation on 120-277VAC, the V4 LED Canopy Light supports both ceiling mounting and pendant mounting installations. With ETL, cETL, and DLC certifications, an IP-rated commercial design, and a 50,000-hour rated lifespan, this fixture delivers reliable performance for years of maintenance-free operation.
Ideal for parking garages, underground parking structures, shopping centers, commercial buildings, airports, warehouses, and other covered outdoor lighting applications.
Key Features
- Wattage Selectable:
- 30W
- 45W
- 70W
- 3CCT Selectable:
- 3000K
- 4000K
- 5000K
- Up to 9,100 lumens
- High efficiency: 130 LM/W
- Premium Lumileds 2835 LED chips
- Motion sensor ready
- Plug-and-play occupancy sensor compatible
- 0-10V dimmable
- Wide 150° beam angle
- Anti-UV polycarbonate optics
- Heavy-duty die-cast aluminum housing
- Corrosion-resistant bronze finish
- Ceiling or pendant mount installation
- ETL Listed
- cETL Listed
- DLC Listed
- 50,000-hour rated life
- Power and CCT adjustable
Technical Specifications
| Specification | Details |
|---|---|
| Brand | UpgradeToLED |
| Product Type | LED Canopy Light |
| Model | LS-4NCP(70/45/30W)-XXK |
| Wattage Selectable | 30W / 45W / 70W |
| Lumen Output | 3,900 / 5,850 / 9,100 Lumens |
| Light Efficiency | 130 LM/W |
| Color Temperature | 3000K / 4000K / 5000K |
| CRI | >80 |
| Input Voltage | 120-277VAC |
| Power Factor | >0.90 |
| Input Current | 0.25A / 0.37A / 0.58A @120V |
| LED Chips | Lumileds 2835 |
| Driver | UL Listed 0-10V Dimmable |
| Beam Angle | 150° |
| Lens Material | High-Transmission Anti-UV Polycarbonate |
| Housing Material | Die-Cast Aluminum |
| Finish | Bronze Powder-Coated |
| Motion Sensor Port | Built-In Receptacle |
| Compatible Sensor | HD07VR-MH Occupancy Sensor |
| Operating Temperature | -20°C to 45°C |
| Junction Temperature | <75°C |
| Fixture Efficiency | ≥90% |
| Mounting Options | Ceiling Mount / Pendant Mount |
| Dimensions | 9.56" × 9.56" × 3.34" |
| Lifetime | 50,000 Hours |
| Certifications | ETL Listed, cETL Listed, DLC Listed |
| Equivalent HID Replacement | 80W–250W MH/HPS |
| Warranty | 5-Year Limited |
Applications
- Underground Parking Garages
- Parking Structures
- Carports
- Airport Parking Facilities
- Shopping Centers
- Commercial Buildings
- Warehouses
- Factories
- Building Entrances
- Covered Walkways
- Loading Areas
- Security Lighting
