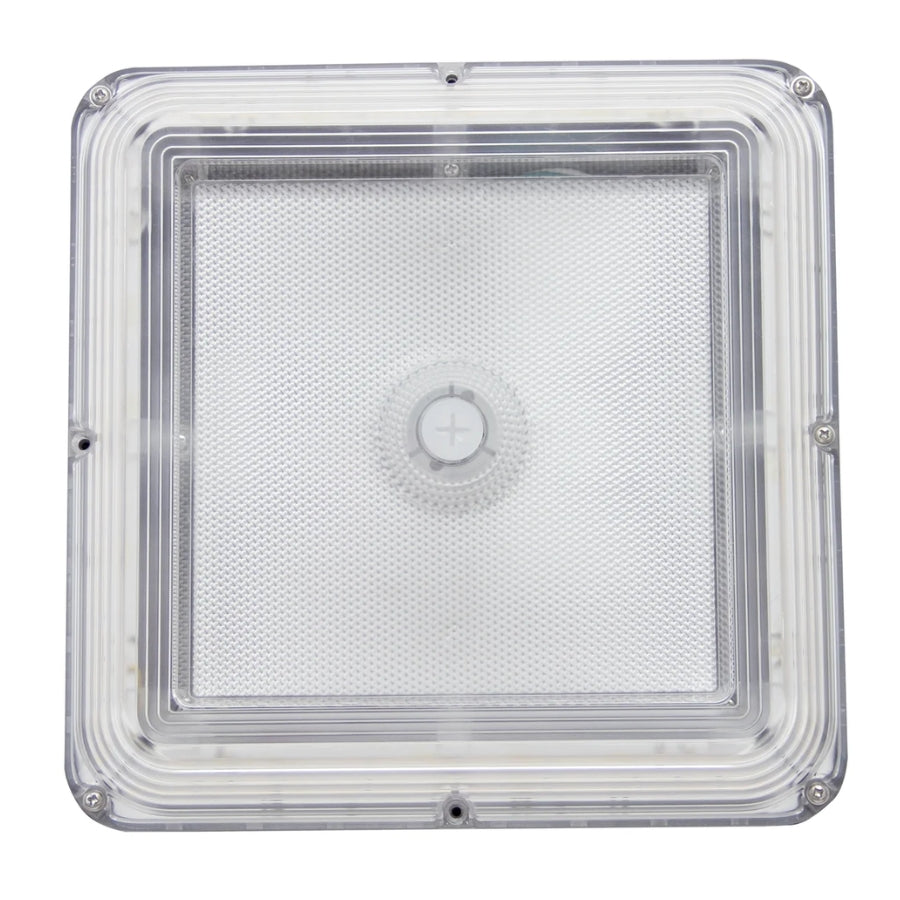

The UpgradeToLED V5 LED Canopy Light is a high-performance commercial lighting solution designed for parking garages, gas stations, covered walkways, shopping centers, warehouses, and outdoor canopies. Featuring field-selectable wattages of 60W, 80W, and 100W along with selectable 3000K, 4000K, and 5000K color temperatures, this fixture allows contractors and facility managers to customize light output and color temperature during installation without stocking multiple fixture models.
Powered by premium Lumileds 2835 LED chips, the fixture delivers up to 12,000 lumens with an efficiency of 120 lumens per watt, providing bright, uniform illumination while reducing energy consumption and maintenance costs. The wide 150° beam angle ensures excellent coverage and visibility throughout parking structures, driveways, loading zones, and commercial outdoor spaces.
Designed with a rugged die-cast aluminum housing featuring advanced cooling fins and ventilation grooves, the fixture provides excellent thermal management and long-term reliability. The high-transmittance polycarbonate lens offers over 90% light transmission while maintaining uniform light distribution and minimizing glare.
The built-in power and color temperature adjustment switches allow easy on-site customization. A convenient motion sensor receptacle port supports plug-and-play occupancy sensors for additional energy savings. Standard 0-10V dimming compatibility enables integration with modern lighting control systems.
Operating on 120-277VAC, the fixture is UL Listed, cUL Listed, DLC Listed, and rated for 50,000 hours of dependable performance. Installation options include ceiling mounting or pendant mounting using a ¾-inch conduit connection for maximum flexibility.
Ideal for parking garages, shopping centers, airports, warehouses, factories, carports, driveways, logistics facilities, and commercial canopy lighting applications.
Key Features
- Selectable wattages:
- 60W
- 80W
- 100W
- 3CCT Selectable:
- 3000K
- 4000K
- 5000K
- Up to 12,000 lumens
- High efficacy: 120 LM/W
- Premium Lumileds 2835 LED chips
- Motion sensor ready
- Plug-and-play occupancy sensor compatible
- 0-10V dimmable
- Wide 150° beam angle
- High-transmittance PC lens
- Die-cast aluminum housing
- Advanced heat dissipation fins
- Ceiling or pendant mount installation
- DLC Listed
- UL Listed
- cUL Listed
- 50,000-hour rated life
- Power and CCT adjustable
Technical Specifications
| Specification | Details |
|---|---|
| Brand | UpgradeToLED |
| Product Type | LED Canopy Light |
| Model | TS-GCP1110-100W-FG-TCP |
| Wattage Selectable | 60W / 80W / 100W |
| Lumen Output | 7,200 / 9,600 / 12,000 Lumens |
| Light Efficiency | 120 LM/W |
| Color Temperature | 3000K / 4000K / 5000K |
| CRI | >80 |
| Input Voltage | 120-277VAC |
| Power Factor | >0.90 |
| Input Current | 0.50A / 0.66A / 0.83A @120V |
| LED Chips | Lumileds 2835 |
| Driver | UL Listed 0-10V Dimmable |
| Beam Angle | 150° |
| Housing Material | Die-Cast Aluminum |
| Lens Material | High-Transmission Polycarbonate |
| Motion Sensor Port | Built-In Receptacle |
| Motion Sensor | ANT-5-4T Plug-and-Play Compatible |
| Operating Temperature | -20°C to 45°C |
| Junction Temperature | <75°C |
| Fixture Efficiency | ≥90% |
| Mounting Options | Ceiling Mount / Pendant Mount |
| Lifetime | 50,000 Hours |
| Certifications | UL Listed, cUL Listed, DLC Listed |
| Equivalent HID Replacement | 120W-300W MH/HPS |
| Warranty | 5-Year Limited |
Applications
- Parking Garages
- Underground Parking Structures
- Carports
- Airport Parking Facilities
- Shopping Centers
- Warehouses
- Factories
- Logistics Centers
- Commercial Buildings
- Driveways
- Covered Walkways
- Canopy Lighting
