UpgradeToLED Lighting

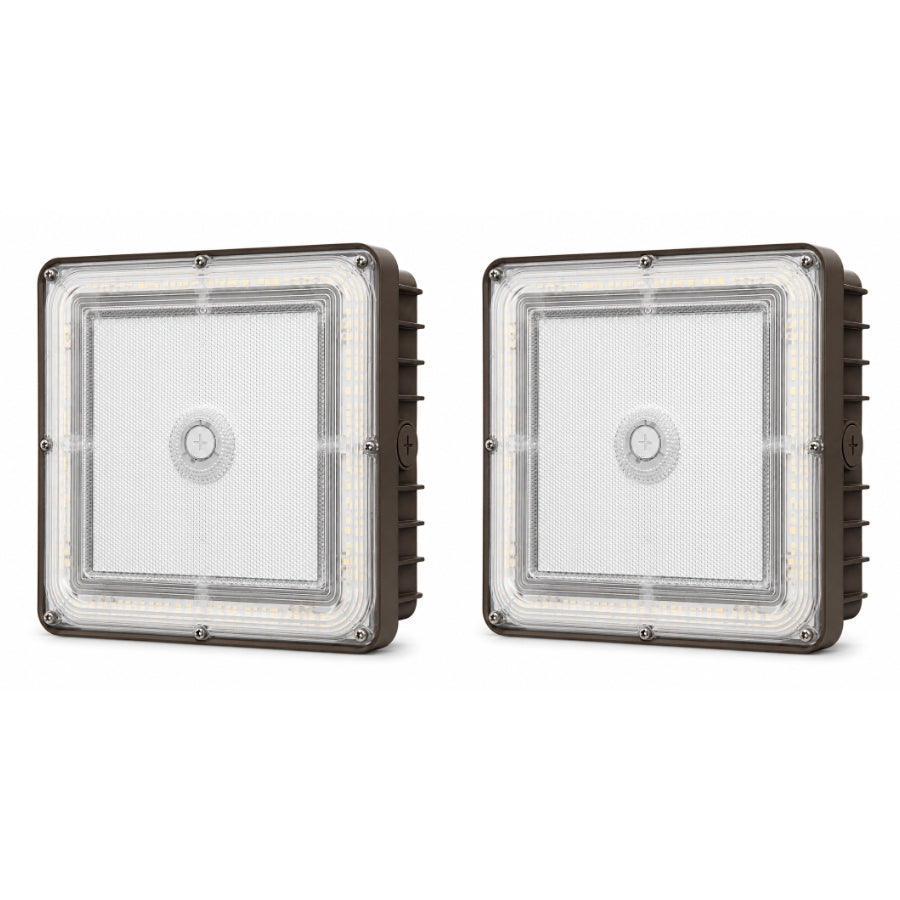

V5 LED Canopy Lights, 60W/80W/100W Selectable, 400W Metal Halide Equivalent, Up to 12,000 Lumens, 3CCT Tunable, Motion Sensor Ready, 120-277V AC, Commercial Outdoor Ceiling Fixture for Gas Stations, Parking Garages & Walkways, 5-Year Warranty
SKU:
UTLED-1071
- $151.20
$166.32- $151.20
- Unit price
- per
Get your quote within 1 hour!
Free shipping on orders over $99
We promise same day shipping
Product Specifications
| Specification | Details |
|---|---|
| Brand | UpgradeToLED |
| Product Type | V5 LED Canopy Light |
| Selectable Wattage | 60W / 80W / 100W |
| Metal Halide Equivalent | Up to 400W MH |
| Maximum Luminous Output | Up to 12,000 Lumens |
| Efficacy | Up to 120 Lumens/Watt |
| Selectable Color Temperatures | 3000K / 4000K / 5000K |
| CCT Technology | 3CCT Tunable |
| Input Voltage | 120-277V AC |
| Dimming | 0-10V Dimmable |
| Motion Sensor Ready | Yes |
| CRI | >80 |
| Housing Material | Die-Cast Aluminum |
| Lens Material | UV-Stabilized Polycarbonate |
| Mounting Type | Surface Mount |
| IP Rating | IP65 Waterproof |
| Operating Temperature | -40°F to 122°F |
| Lifespan | 50,000+ Hours |
| Certifications | UL Listed, DLC Premium |
| Warranty | 5-Year Warranty |
Durable Construction
| Feature | Benefit |
|---|---|
| Die-Cast Aluminum Housing | Excellent thermal management and durability |
| UV-Resistant Polycarbonate Lens | Maintains clarity and light output over time |
| Commercial-Grade LED Driver | Stable long-term performance |
| IP65 Weatherproof Design | Protection against rain, dust, and moisture |
| Corrosion-Resistant Finish | Suitable for harsh outdoor environments |
| Integrated Heat Sink Design | Extends LED lifespan |
| Commercial Components | Built for demanding daily operation |
Measurements
| Dimension | Measurement |
|---|---|
| Fixture Style | Low-Profile Square Canopy |
| Mounting Type | Surface Mount |
| Housing Design | Compact Commercial Fixture |
| Installation Location | Indoor or Outdoor Covered Areas |
| Construction | Commercial-Grade Aluminum Housing |
Product Overview
The UpgradeToLED V5 LED Canopy Light delivers exceptional versatility through selectable wattage settings of 60W, 80W, and 100W combined with 3CCT color temperature tuning. Designed for commercial facilities that require flexibility, this fixture allows contractors and property owners to customize light output and color temperature during installation without purchasing multiple fixtures.
Producing up to 12,000 lumens while replacing traditional 400W metal halide fixtures, the V5 canopy light is ideal for gas stations, parking garages, walkways, commercial entrances, loading areas, and covered outdoor spaces. Similar commercial canopy fixtures commonly provide selectable wattage, selectable color temperatures, and motion sensor compatibility for maximum installation flexibility.
Core Performance and Output
The V5 Canopy Light provides adjustable light output to match project requirements.
Wattage Settings
- 60W
- 80W
- 100W
Color Temperature Settings
- 3000K Warm White
- 4000K Neutral White
- 5000K Daylight White
Performance Benefits
- Up to 12,000 lumens
- Uniform illumination
- Reduced energy consumption
- Instant-on operation
- Improved visibility
- Excellent light distribution
Selectable wattage and CCT canopy fixtures are increasingly popular because they allow a single SKU to serve multiple applications.
Adjustability and Control Options
One of the strongest advantages of the UpgradeToLED V5 Canopy Light is its installation flexibility.
Adjustable Features
- 60W / 80W / 100W Wattage Selection
- 3000K / 4000K / 5000K Color Selection
- 0-10V Dimming
- Motion Sensor Ready
- Universal 120-277V Input
This flexibility allows contractors to optimize illumination levels based on mounting height, application requirements, and energy goals without changing fixtures. Motion sensor compatibility is commonly used in parking garages and low-traffic commercial spaces to maximize energy savings.
Longevity and Reliability
The UpgradeToLED V5 Series is engineered for dependable long-term commercial operation.
Key reliability features include:
- 50,000+ hour lifespan
- Commercial-grade driver
- Efficient heat dissipation
- Reduced maintenance costs
- Stable lumen output
- Long service intervals
Compared to traditional HID fixtures, LED canopy lights significantly reduce maintenance requirements while delivering more consistent illumination throughout their lifespan.
Build Quality and Physical Characteristics
Built using commercial-grade materials, the V5 fixture is designed to withstand demanding outdoor environments.
Physical Features
- Heavy-duty die-cast aluminum housing
- UV-resistant lens
- Corrosion-resistant finish
- Weather-resistant enclosure
- Compact low-profile design
- Modern commercial appearance
The slim fixture profile provides a clean, professional appearance suitable for both new construction and retrofit projects.
Where This Product Fits Best
The UpgradeToLED V5 LED Canopy Light is ideal for:
- Gas Stations
- Fuel Pump Canopies
- Parking Garages
- Parking Decks
- Commercial Walkways
- Building Entrances
- Retail Centers
- Loading Docks
- Warehouse Entrances
- Car Wash Facilities
- Covered Drive Lanes
- Transportation Facilities
Selectable wattage canopy fixtures are especially useful when lighting requirements vary between locations.
Installation and Long-Term Use
The V5 Series is designed for straightforward installation and long-term operation.
Installation advantages include:
- Surface mount installation
- Universal voltage compatibility
- Adjustable wattage selection
- Adjustable color temperature selection
- Motion sensor compatibility
- Retrofit-friendly design
Because wattage and color temperature can be selected during installation, contractors can reduce inventory requirements while maintaining project flexibility.
How This Fixture Is Commonly Used
Commercial property owners and electrical contractors frequently install this fixture in:
- Fueling stations
- Parking garages
- Covered pedestrian walkways
- Retail entrances
- Service stations
- Loading areas
- Commercial campuses
- Industrial facilities
The selectable wattage feature allows users to tailor brightness levels while maintaining excellent energy efficiency.
Safety, Certifications, and Warranty
Certifications
- UL Listed
- DLC Premium Qualified
- IP65 Waterproof Rated
These certifications demonstrate compliance with recognized safety and energy-efficiency standards for commercial lighting projects. Similar selectable canopy fixtures commonly carry UL and DLC certifications.
Warranty
Every UpgradeToLED V5 LED Canopy Light is backed by a 5-Year Limited Warranty, providing confidence for long-term commercial installations.
Frequently Asked Questions
How many lumens does this fixture produce?
The fixture delivers up to 12,000 lumens depending on the selected wattage setting.
What wattages can be selected?
You can choose between 60W, 80W, and 100W.
What color temperatures are available?
The fixture offers 3000K, 4000K, and 5000K selectable color temperatures.
Is the fixture dimmable?
Yes. It supports 0-10V dimming.
Can I add a motion sensor?
Yes. The fixture is motion sensor ready.
What HID fixture can it replace?
It can replace traditional fixtures up to 400W metal halide equivalent.
Is it suitable for outdoor applications?
Yes. The IP65-rated housing is designed for outdoor commercial environments.
What voltage does it support?
The fixture operates on 120-277V AC power systems.
Application Questions and Clarification
Which wattage setting should I choose?
60W: Walkways and lower mounting heights
80W: Parking garages and general commercial applications
100W: Gas stations and higher mounting applications
Which color temperature is best?
3000K: Warm and inviting environments
4000K: Balanced commercial lighting
5000K: Maximum visibility and security
Can this reduce inventory for contractors?
Yes. Because one fixture provides three wattages and three color temperatures, contractors can stock fewer SKUs while covering more project requirements.
Is motion sensor control useful?
Yes. Motion sensors can reduce energy consumption in parking garages, storage areas, and low-traffic locations. Motion sensor-ready canopy fixtures are commonly specified for energy-saving commercial projects.
Who typically purchases this fixture?
- Gas Station Owners
- Electrical Contractors
- Facility Managers
- Property Managers
- Commercial Developers
- Retail Operators
- Parking Garage Owners
- Industrial Facility Managers
