White LED Wall Pack – Selectable 60W/80W/100W/120W Wattage, Up to 15,600 Lumens, Built-In Dusk-to-Dawn Photocell, Selectable 3000K/4000K/5000K CCT, Up to 400W Metal Halide Equivalent, 120–277V, DLC Premium, 5-Year Warranty

PRODUCT SPECIFICATIONS

DURABLE CONSTRUCTION

FEATURES / ACCESSORIES

PRODUCT OVERVIEW

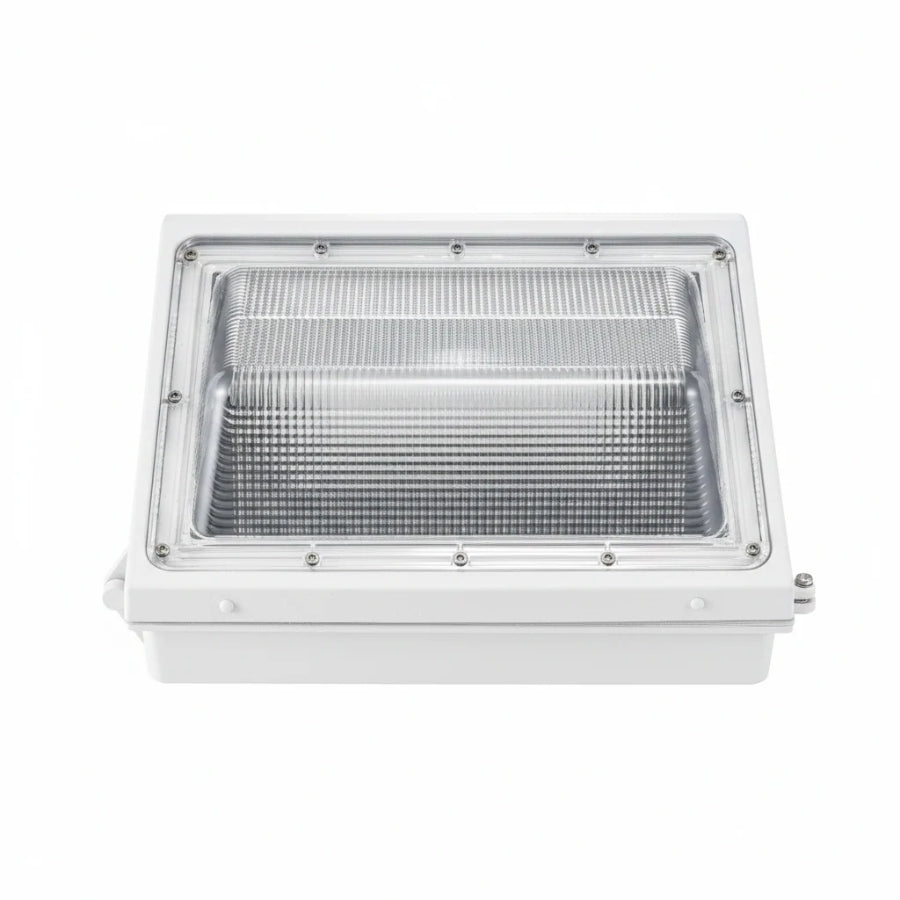

The UpgradeToLED 60W/80W/100W/120W LED White Wall Pack is a versatile commercial outdoor lighting solution that combines four selectable wattages and three selectable color temperatures into one fixture. Installers can choose 60W, 80W, 100W, or 120W and 3000K, 4000K, or 5000K during installation, delivering between 7,800 and 15,600 lumens to meet a wide range of exterior lighting requirements.

Finished in a clean white powder-coated housing, this wall pack is ideal for schools, healthcare facilities, commercial buildings, apartments, retail centers, warehouses, and other properties where a white architectural finish is preferred. The integrated dusk-to-dawn photocell, universal 120-277V input, IP65 weatherproof construction, and commercial-grade die-cast aluminum housing provide years of reliable outdoor performance. Comparable fixtures feature selectable wattage, selectable CCT, built-in photocells, and output up to 15,600 lumens.

CORE PERFORMANCE AND OUTPUT

Designed for high-performance commercial lighting, this fixture delivers adjustable output from 7,800 to 15,600 lumens while maintaining efficacy of approximately 130 lumens per watt.

The field-selectable wattage allows contractors to optimize brightness for each installation without stocking multiple models. Combined with selectable color temperatures and broad light distribution, this wall pack is an excellent replacement for traditional 250W to 400W metal halide or HPS fixtures, reducing both energy consumption and maintenance costs.

ADJUSTABILITY AND CONTROL OPTIONS

This fixture provides maximum installation flexibility with:

• 60W / 80W / 100W / 120W selectable wattage
• 3000K / 4000K / 5000K selectable color temperature
• Built-in dusk-to-dawn photocell
• Automatic sunrise/sunset operation
• 0-10V dimming compatibility
• Universal 120-277V driver

These integrated controls simplify inventory management by allowing one fixture to serve multiple commercial lighting applications.

LONGEVITY AND RELIABILITY

Designed for demanding commercial environments, this fixture delivers dependable long-term operation.

Key benefits include:

• 50,000+ hour LED lifespan
• Reduced maintenance costs
• Stable lumen output
• Commercial-grade LED driver
• High-efficiency thermal management
• Corrosion-resistant white finish
• Reliable year-round outdoor performance

BUILD QUALITY AND PHYSICAL CHARACTERISTICS

Built for commercial durability, this fixture features:

• Heavy-duty die-cast aluminum housing
• White architectural powder-coated finish
• UV-resistant polycarbonate lens
• Integrated aluminum heat sink
• Sealed optical chamber
• IP65 wet-location construction
• Professional architectural appearance
• Commercial-grade LED components

WHERE THIS PRODUCT FITS BEST

Ideal for:

• Office buildings
• Hospitals and healthcare facilities
• Schools and universities
• Apartment complexes
• Retail shopping centers
• Warehouses
• Distribution centers
• Hotels
• Parking areas
• Building entrances
• Loading docks
• Walkways
• Service entrances
• Municipal facilities
• Security lighting

INSTALLATION AND LONG-TERM USE

The universal 120-277V driver supports both retrofit and new construction projects. During installation, contractors can easily select both the preferred wattage and color temperature to match mounting height and lighting requirements.

Once installed, the built-in photocell automatically turns the fixture on at dusk and off at dawn, improving energy efficiency while eliminating manual operation. The weather-resistant housing and long-life LED system help minimize maintenance throughout the fixture's service life.

HOW THIS FIXTURE IS COMMONLY USED

This LED White Wall Pack is commonly installed to:

• Replace outdated HID or HPS wall packs
• Illuminate commercial entrances
• Improve perimeter security
• Light warehouse loading docks
• Illuminate parking areas
• Enhance pedestrian walkways
• Provide dusk-to-dawn security lighting
• Reduce maintenance expenses
• Lower electrical operating costs
• Improve building visibility

SAFETY, CERTIFICATIONS, AND WARRANTY

Built for dependable commercial operation.

• DLC Listed
• IP65 Wet Location Rated
• Built-in dusk-to-dawn photocell
• 0-10V dimming compatible
• Commercial-grade LED driver
• Energy-efficient LED technology
• 5-Year Limited Warranty

FREQUENTLY ASKED QUESTIONS

Does this fixture include a photocell?

Yes. A factory-installed dusk-to-dawn photocell automatically turns the light on at sunset and off at sunrise.

Can I choose both wattage and color temperature?

Yes. You can select 60W, 80W, 100W, or 120W along with 3000K, 4000K, or 5000K before installation.

Is this fixture dimmable?

Yes. It supports standard 0-10V dimming controls.

What HID fixtures can it replace?

Depending on the selected wattage, it can replace approximately 250W to 400W metal halide or HPS wall pack fixtures while providing significant energy savings.

Is it suitable for outdoor use?

Yes. The IP65-rated enclosure is engineered for wet-location commercial and industrial applications.

What voltage does it support?

The fixture operates on universal 120-277V AC power.

How long will the LEDs last?

The LED system is rated for more than 50,000 hours under normal operating conditions.

APPLICATION QUESTIONS AND CLARIFICATION

Why choose the white housing instead of bronze?

The white powder-coated finish complements modern commercial buildings, schools, hospitals, and architectural designs that require a clean, bright appearance while offering the same corrosion resistance and durability as traditional bronze finishes.

Is this fixture suitable for commercial buildings?

Yes. It is ideal for office buildings, schools, healthcare facilities, retail centers, warehouses, apartment communities, hotels, and municipal properties.

Can it be used for security lighting?

Absolutely. The adjustable lumen output, integrated photocell, and wide beam distribution make it an excellent choice for perimeter security, parking areas, service entrances, loading docks, and building exteriors.

Can it withstand harsh outdoor conditions?

Yes. The die-cast aluminum housing, white powder-coated finish, UV-resistant polycarbonate lens, and IP65 weatherproof construction are designed for dependable year-round operation in rain, dust, snow, and demanding outdoor environments.
